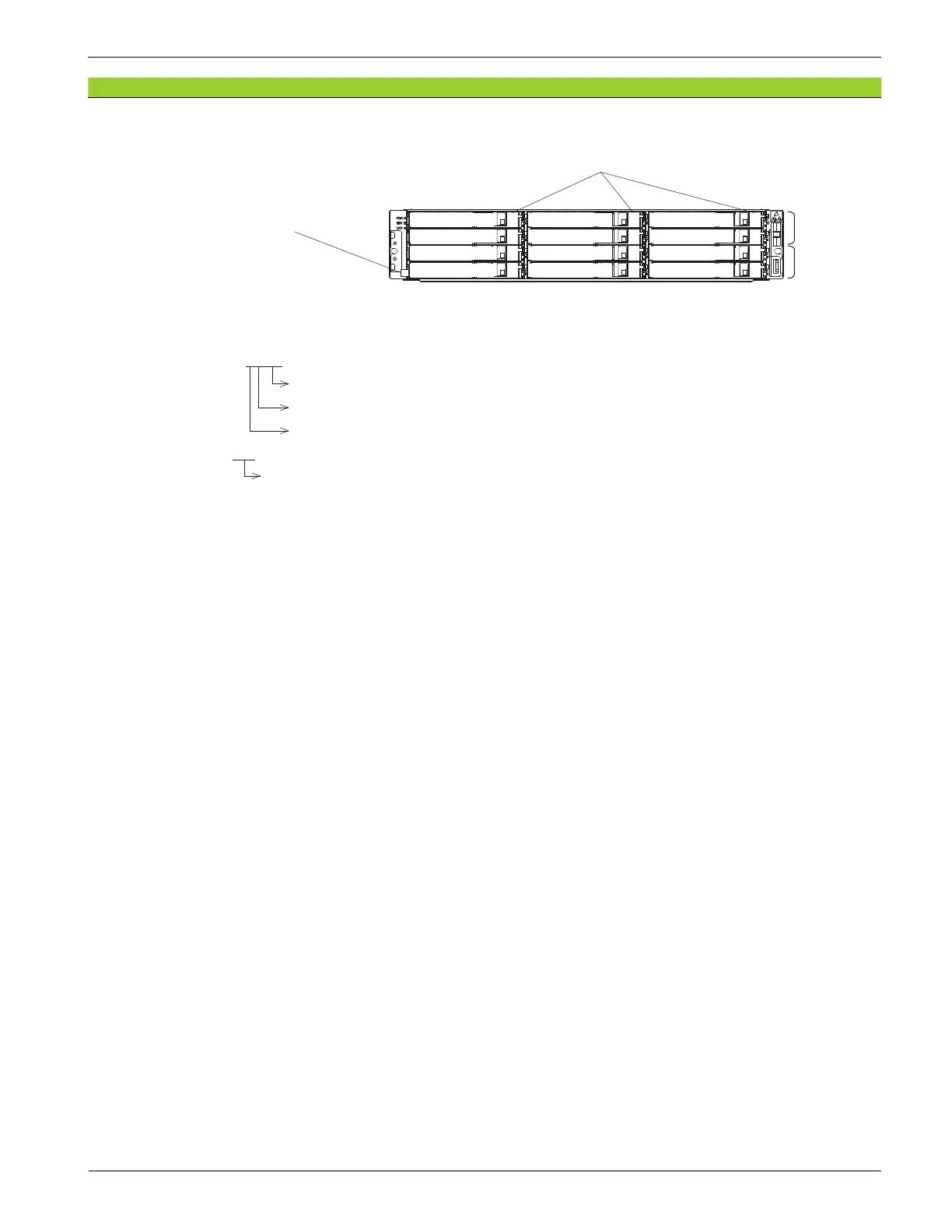

Figure 8-7 Drive Mounting Location (FBX)
*1 : The name in parentheses in the SVP messages shows HDDxxx-yy here.
*2: DKU-xy(n)
n: Drive Box number in DKU (0, 1, 2, and 3)
y: DKU No. (0, 1, 2 ..., 7)
x: CBX Pair No. (0, 1, 2)
*3: DB-zzz
DB No. (000, 001, 002, ........, 191)
*4: The slot numbers on DBF (FBX) displayed in the DKU-mm: Drive Box window of Maintenance
Utility are the same as the slot numbers shown in Figure 8-7.
NOTE: Turn on the LOCATE LED by using Maintenance Utility during maintenance work.
If you cannot turn on the LOCATE LED, check the number (*2) shown on the label
attached to the lower left part of the front side of FBX so that you do not confuse the
maintenance target.
For correspondence of DKU# (DKU-xy(n)) to DB# (DB-zzz) and HDD location#, see
“Correspondence of DKU# to DB# and HDD Location#” (LOC02-84).
DB-zzz
HDD (zzz+1)-03
HDD zzz-00
HDD (zzz+1)-00
HDD zzz-03
HDD (zzz+1)-04
HDD zzz-01
HDD (zzz+1)-01
HDD zzz-04
HDD (zzz+1)-05
HDD zzz-02
HDD (zzz+1)-02
HDD zzz-05
DB-(zzz+1)
10
7
4
1
9
6
3
0
11
8
5
2
DKU-xy(n)
(A label is attached.)
Printed slot number
Rev.7
INST(IN)08-01-60
