ABOUT THE SYSTEM SYSTEM FRONT VIEW
1-10

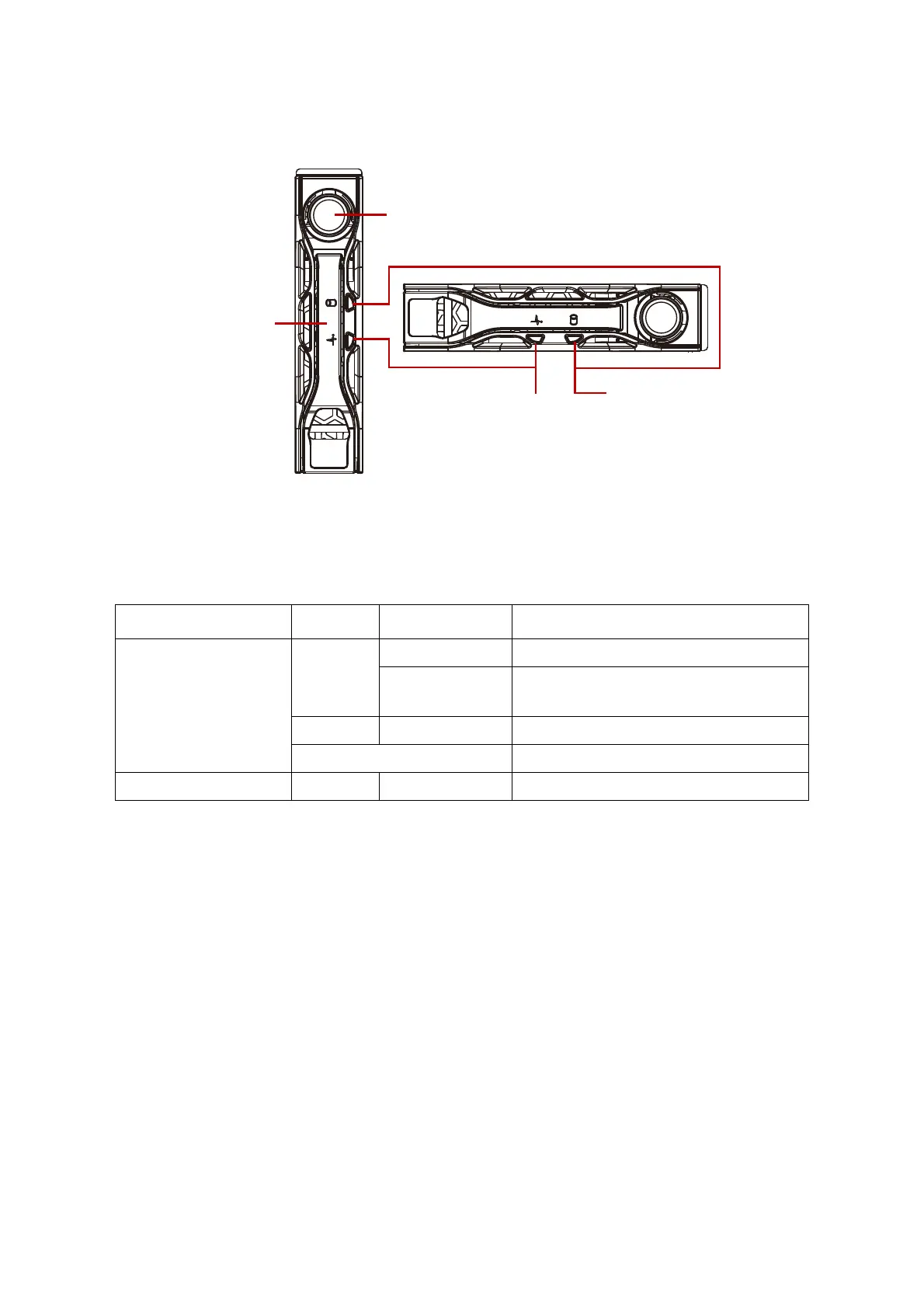

2.5” Storage Drive Tray Overview
Figure 1-3. 2.5” Storage Drive Tray Overview
The following LED behavior table represents LED conditions.
Table 5: 2.5” Storage Drive Tray LED Status Behavior
NAME COLOR CONDITION DESCRIPTION
Drive Status / Fault
Blue
On Drive is online
Blinking
Twice per second: Identification
Once per second: Rebuilding
Amber On Drive failure
Off Slot is empty
Drive Active Blue Blinking Drive access is active
Status / Fault LED
Active LED
Release Button
Handle
