INSTALLING THE HARDWARE INSTALLING A PCIE RISER ASSEMBLY
2-17
Installing a PCIe Riser Assembly
1. Remove the mainboard sled. See Removing a Mainboard Sled on page 2-11.
2. Align the guide pin on the riser assembly with the guide slot on the back chassis.
3. Align the guide hole on the base of riser assembly with the guide pin on the main-
board. Install the assembly on the chassis and press down firmly to connect it to the
mainboard.
4. Fasten the captive screw and press the latch plunger to the secured position to lock
the assembly.

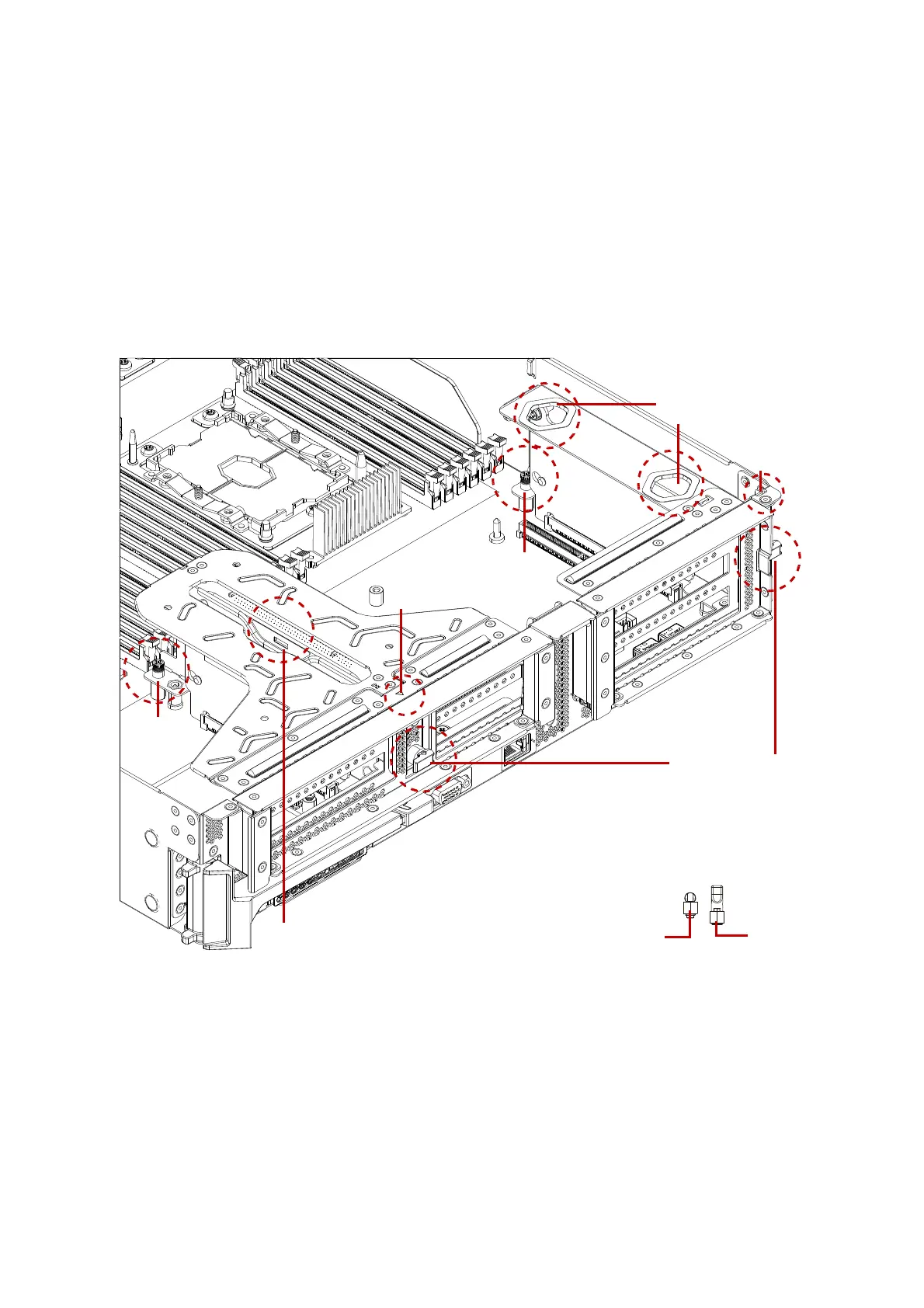

Figure 2-22. Installing the Riser Assembly
5. Make sure the the assembly is secured in place.
Access
Opening
Latch Plunger
Handle
Captive
Screw
Captive
Screw
Latch Plunger
Secured Open
Guide
Slot
Guide
Slot
