ABOUT THE SYSTEM ENABLING THE INTEL® VMD TECHNOLOGY
1-16
Enabling the Intel® VMD technology
Note:
Y
ou can use Intel® VROC HII to create the RAID volume. These volumes can be created at any point before
or after your system is successfully running your Windows® installation, but may not be used as the boot
volume.

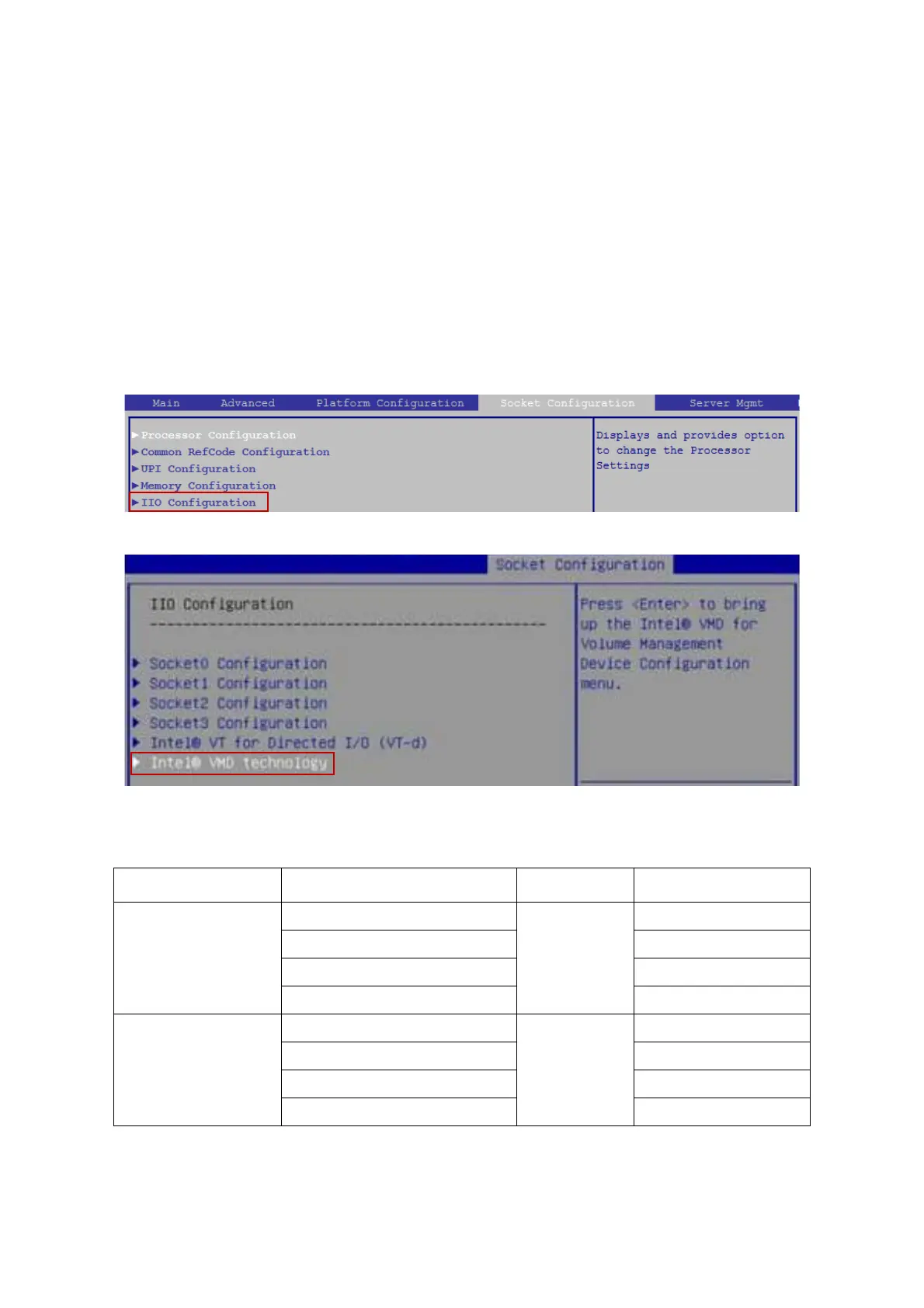

To enable the Intel VMD technology feature, you might need to select “Intel® VMD tech-
nology” in “IIO configuration” under the “Socket Configuration” screen from BIOS Main
screen.
Press the right arrow key until “Socket Configuration” is selected and press the down
arrow key until “IIO Configuration” is selected.
Press the down arrow key until “Intel® VMD technology” is selected.
Check the i
nformation about VMD port number and PStack number from the following
table. Table 10: Intel® VMD PCIe Root Port BIOS Setup Option Table
CPU SOCKET VMD PORT #PSTACK#STORAGE DRIVE SLOT #
CPU Socket 0
2A
PStack1
0
2B 1
2C 2
2D 3
CPU Socket 1
1A
PStack0
4
1B 5
1C 6
1D 7
