INSTALLING THE HARDWARE INSTALLING A PCIE RISER ASSEMBLY
2-18
6. Press the latch plunger on the mid-brace to the secured position to lock the GPU
card’s mount bracket.

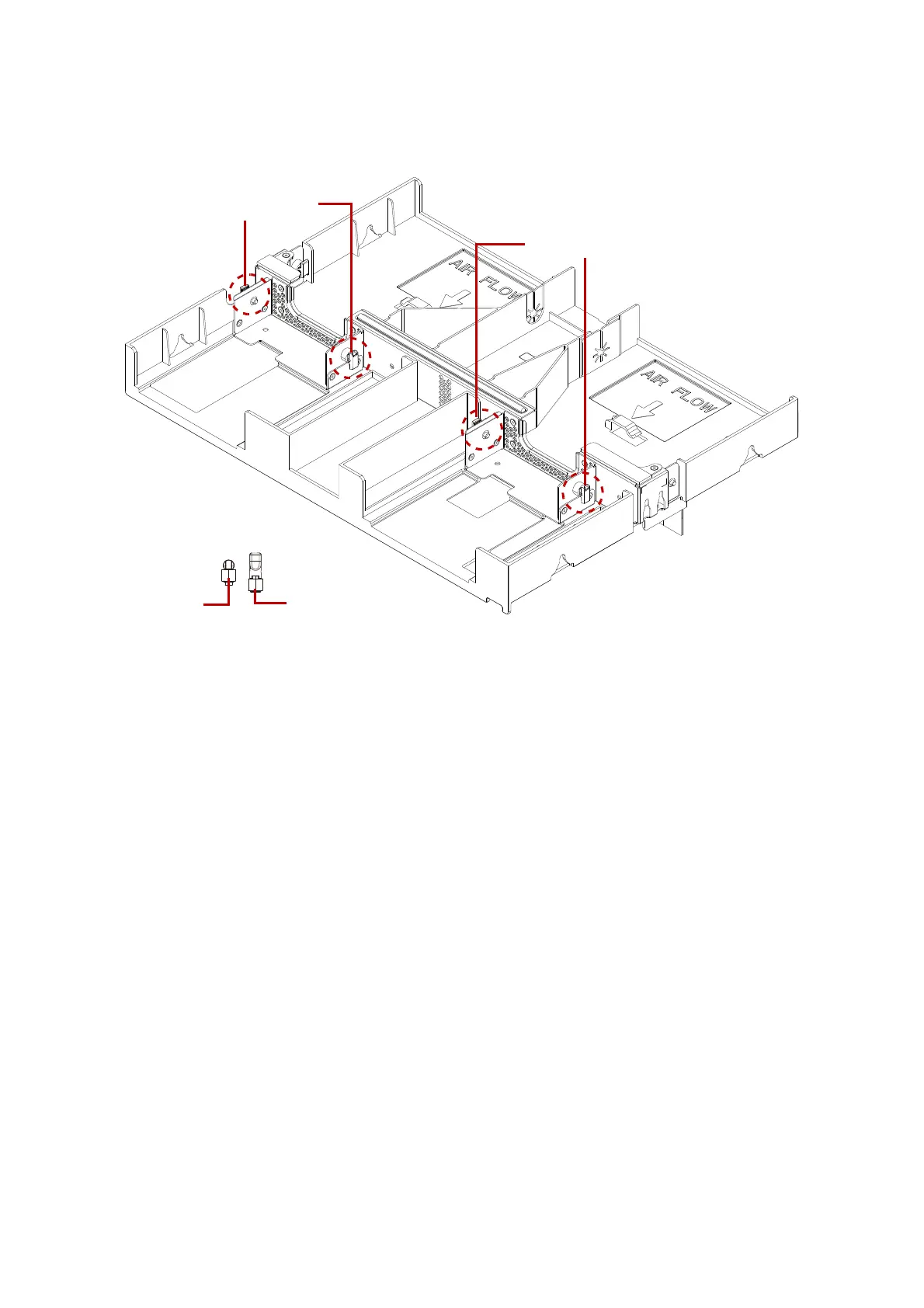

Figure 2-23. Release the latch plunger
7. Install the mainboard sled. See Installing a Mainboard Sled on page 2-13.
8. Replace the system in the rack frame and connect to the power source.
Removing a PCIe Card
1. Remove the PCIe riser assembly from the system. See Removing a PCIe Riser
Assem
bly on page 2-14.
2. Rotate the latch securing the PCIe card to the riser bracket to the open position.
Check the PCIe Card size before installing to ensure compatibility.
Latch Plunger
Latch Plunger
Latch Plunger
Secured Open
