ABOUT THE SYSTEM BACK I/O PORTS
1-14
GPU SKU

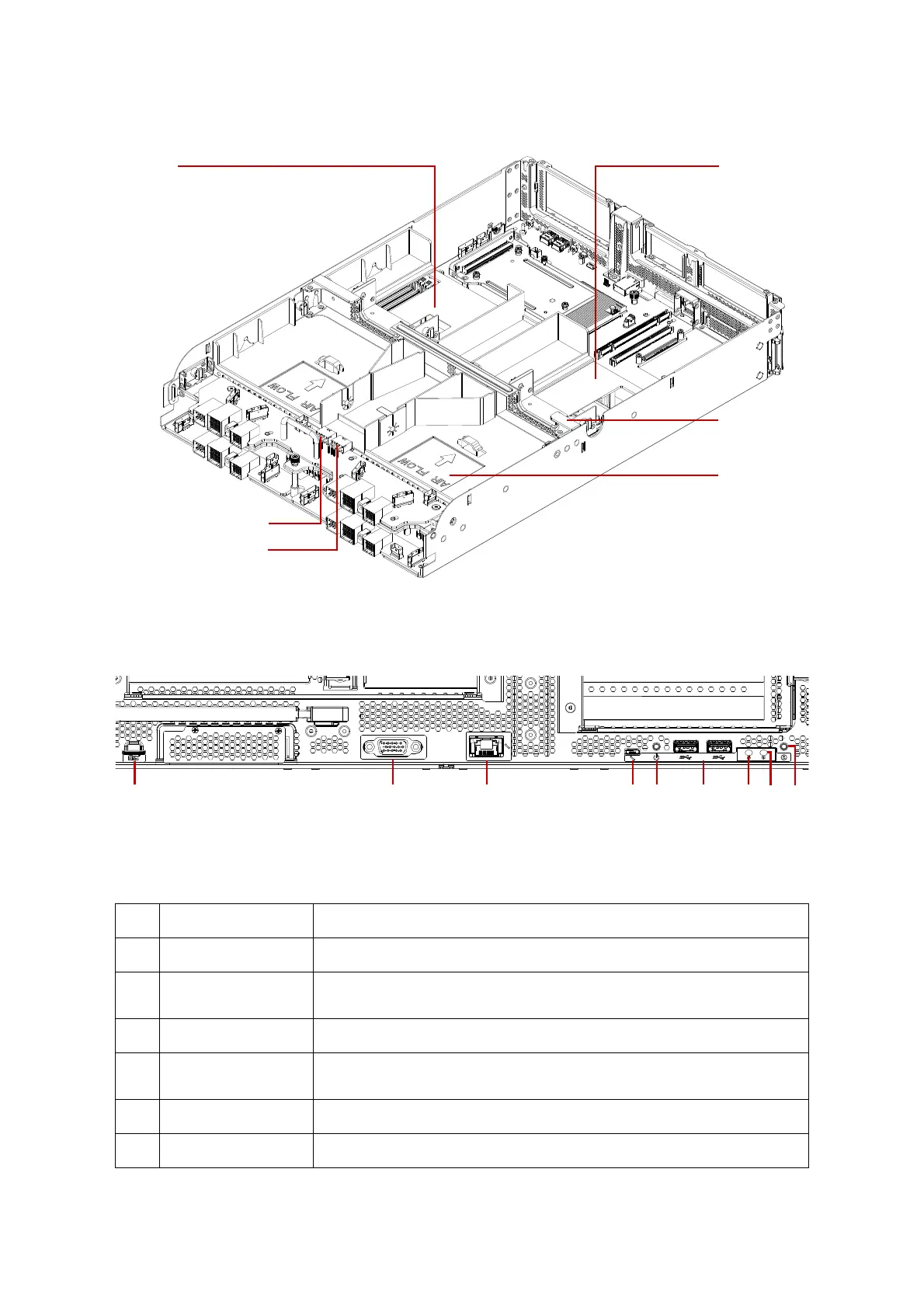

Back I/O Ports
Figure 1-7. Back I/O Ports
Table 8: Back I/O Ports
NO FEATURE DESCRIPTION
1 MicroSD slot Backup BMC System Event Log (SEL)
2VGA port
Standard VGA compatible, 15-pin connector supporting up to 1920 x 1200
32bpp@60Hz resolution. Connect to display device.
3 Management port Dedicated BMC LAN port (RJ45) for remote control / management.
4Micro-USB port
Connect serial signal for redirecting your serial console to connected
device. Make sure the console redirection is enabled in BIOS settings.
5 Power button Press and hold more than four seconds to turn off the motherboard.
6 USB 3.0 ports Connect to USB device; Left: USB1 / Right: USB0
GPU1
Mid-Brace
Air Duct
GPU1 Power slot
GPU0 Power slot
GPU0
