INSTALLING THE HARDWARE REMOVING A MAINBOARD SLED
2-12
1. Press and hold the release button.

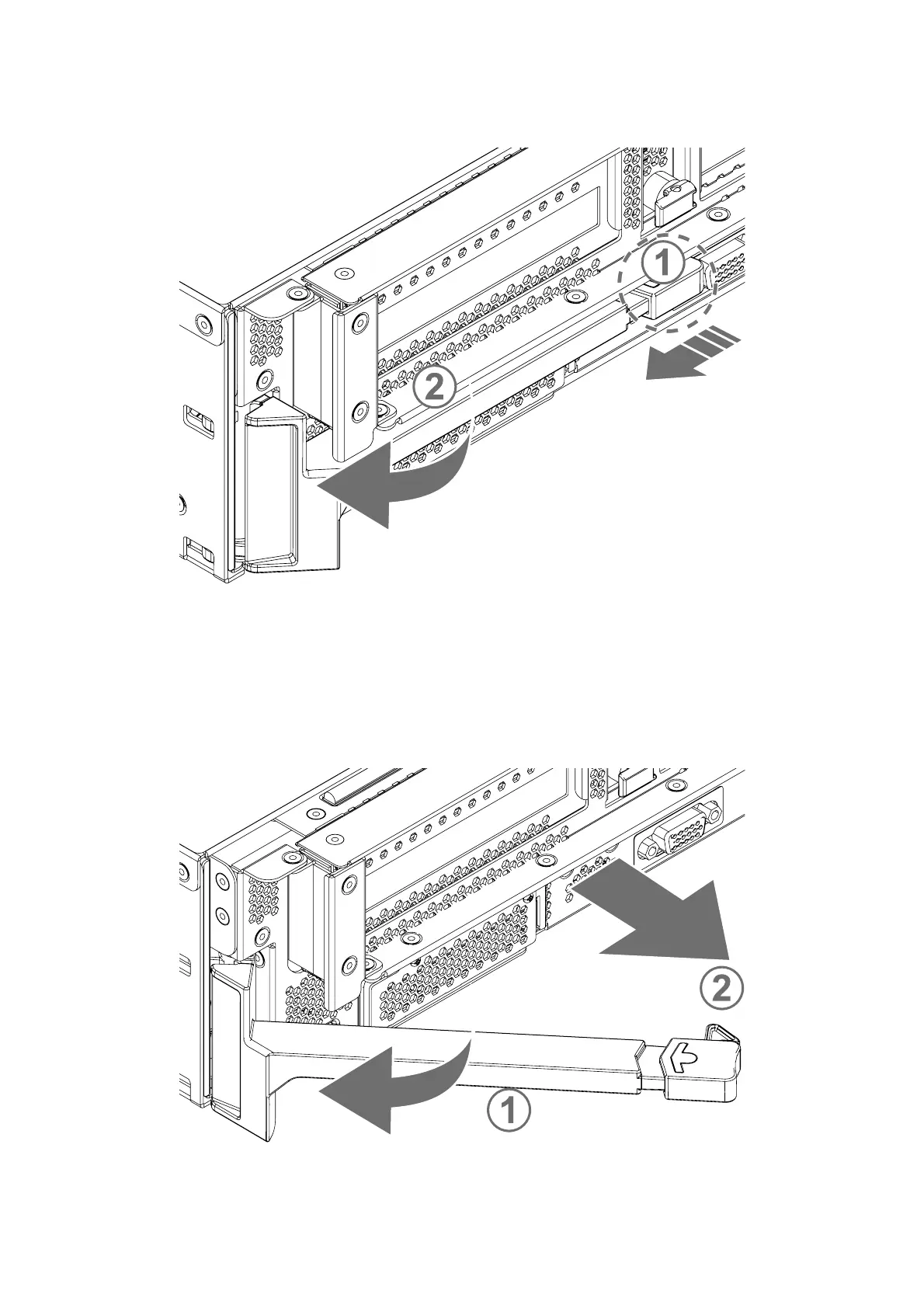

Figure 2-16. Releasing Mainboard Sled Latch
2. Hold the latch handle and extend to the o
pen position.
3. Pull the sled partially from the system.
4. Place a hand underneath the sled to support the weight.
5. Continue removing remove the sled.
Figure 2-17. Removing a Mainboard Sled
