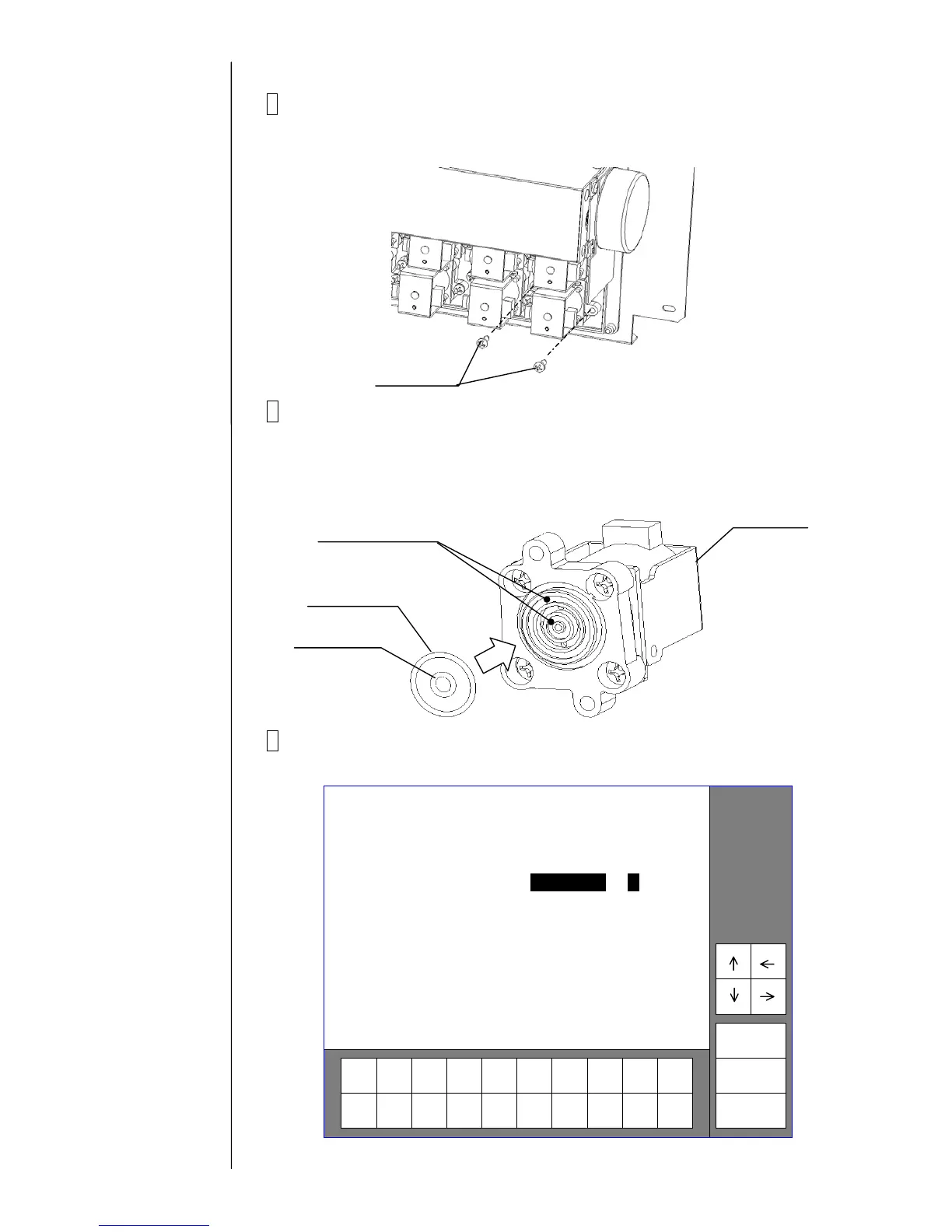

5 Remove the fixing screws (2 positions) of the solenoid valve.
"Caution": Put wiping paper under the solenoid valve to provide for an ink
drip.
6 Clean the portion stained with ink and then install a solenoid valve by
reversing the above procedure.
"Caution" Set the O-ring in the groove of the solenoid valve securely.
Take care not to cause the O-ring to fall off or bite.










7 Reset the time of the corresponding solenoid to 0 on the “Parts usage time
management” screen.

















Fixing screw
Solenoid valve
O-ring S16
O-ring 4.7
O-ring mounting groove


Incre-
ment

Decre-
ment
Cancel
changes

Reset
Back 
0 9 8 7 6 5 4 3 2 1
Status: XXXXXXXXXXX
2005.07.07 12:45 Parts usage time
 Ink filter [ 0 0 0 0 0 ]
 Circulation f. [ 0 0 0 0 0 ]
 Makeup ink f. [ 0 0 0 0 0 ]
 Air filter [ 0 0 0 0 0 ]
 Pump [ 0 0 0 0 0 ]
 Recovery filter [ 0 0 0 0 0 ]
 Heating unit [ 0 0 0 0 0 ]
 MV1 [ 0 0 0 0 0 ]
(hours)
 MV2 [ 0 0 0 0 0 ]
 MV3 [ 0 0 0 0 0 ]
 MV4 [ 0 0 0 0 0 ]
 MV5 [ 0 0 0 0 0 ]
 MV6 [ 0 0 0 0 0 ]
 MV7 [ 0 0 0 0 0 ]
 MV8 [ 0 0 0 0 0 ]
 MV9 [ 0 0 0 0 0 ]
 (hours)
 Update log 2005.07.07 12:45
 <Consumption>
 Ink [ 0 0 0 0 0 0 ] (ml)
 Makeup ink [ 0 0 0 0 0 0 ] (ml)
 Print count 0 0 0 0 0 0 0 0 0
