4-15
5

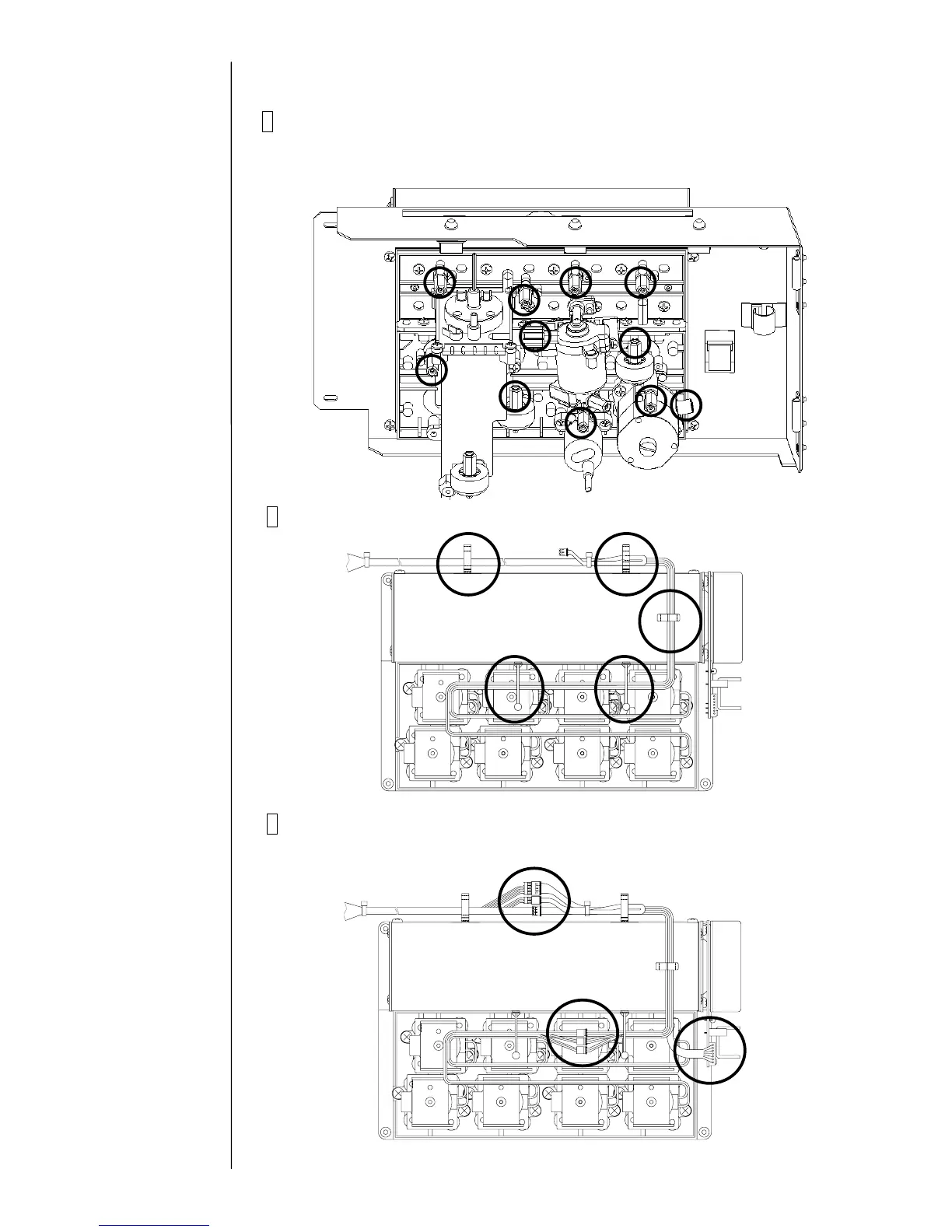

Remove the plumbing tubes (11 posit
ions) that are connected to the
circulation
unit.
"Caution" Take care about an ink drip.
6
Remove the clamps (5 positions) that fix the wires.
7
Remove the connectors of the electric parts (motor, solenoid valves,
pressure sensor, level sensor and viscometer)
104
106
