ENGLISH

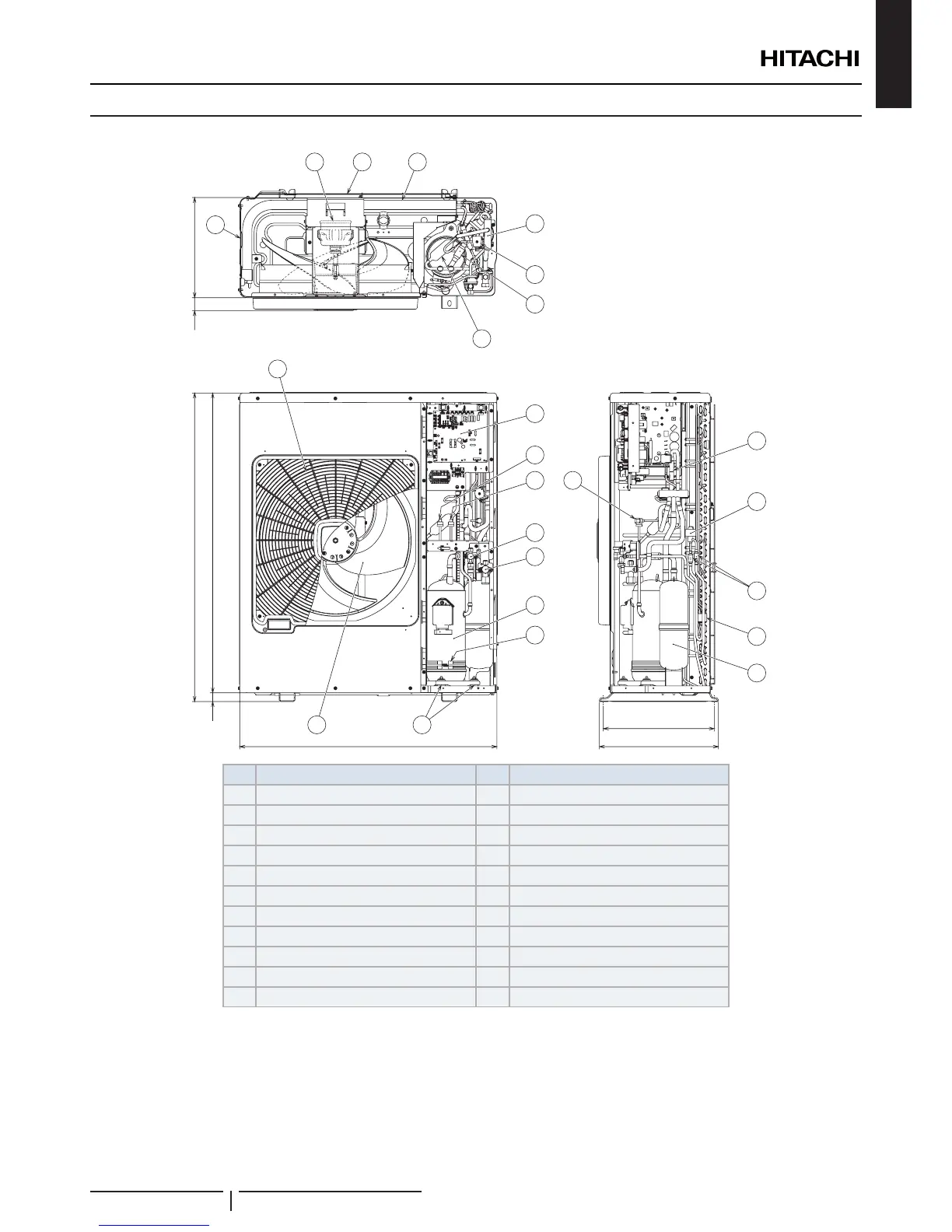

6.2 RAS-(5-6)H(V)NC1E
410
3
4
37048
22
22 2
7
9
1108
1140
32
950
21
15
14
8
5
13
440
6
1
10
11
5
18
12
17
16
19
20
Nº Part Name Nº Part Name
1 Compressor 12 Check valve
2 Heat exchanger 13 Accumulator
3 Propeller fan 14 Check joint
4 Fan motor 15 Electrical box
5 Strainer 16 High pressure switch for protection
6 Distributor 17 Pressure switch for control
7 Reversing Valve 18 Silencer
8 Micro-computer control expansion valve 19 Crankcase heater
9 Solenoid valve 20 Vibration absorbing rubber (4pcs.)
10 Stop valve for gas line 21 Air outlet
11 Stop valve for liquid line 22 Air inlet
NAME OF PARTS
PMML0395B rev.0 - 11/2015
