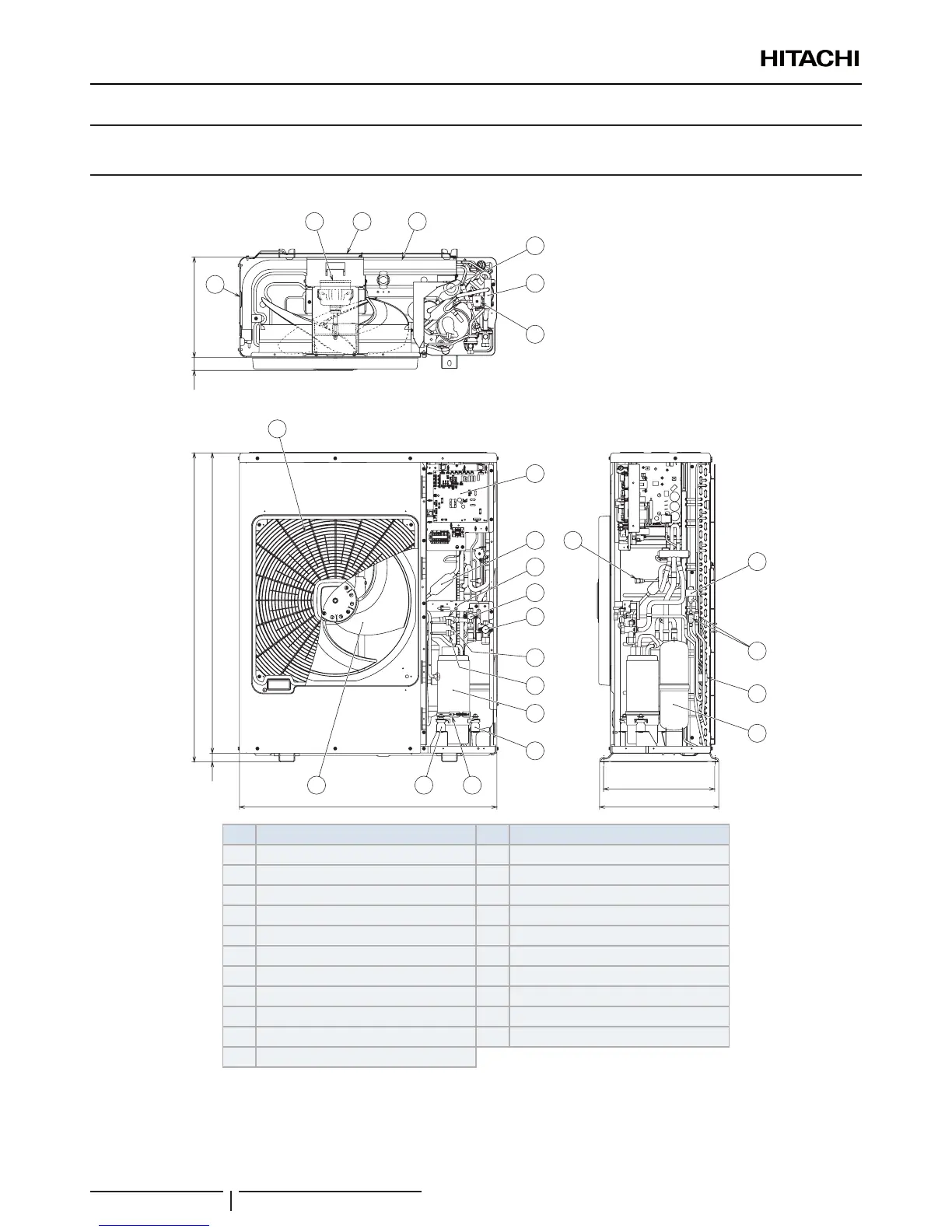

6 NAMEN VAN ONDERDELEN
6.1 RAS-4H(V)NC1E
410
32
1108
1140
37048
440950
3
1
24
5
5
6
7
8
9
10
11
12
13
14
15
16
17
12
1819
19
20
21
21
Nr. Naam onderdeel Nr. Naam onderdeel
1 Compressor 12 Accumulator
2 Warmtewisselaar 13 Terugslagverbinding
3 Schroefventilator 14 Elektrische box
4 Ventilatormotor 15 Hogedrukschakelaar ter beveiliging
5 Zeef 16 Drukschakelaar voor besturing
6 Distributiesysteem 17 Geluiddemper
7 Omkeerklep 18 Krukkastverwarming
8 Expansieklep microcomputerregeling 19 Trillingsabsorberend rubber (4 stuks)
9 Elektromagnetische klep 20 Luchtuitlaat
10 Afsluiter voor gasleiding 21 Luchtinlaat
11 Afsluiter voor vloeistoeiding
NAMEN VAN ONDERDELEN
PMML0395B rev.0 - 11/2015
144
