SVENSKA

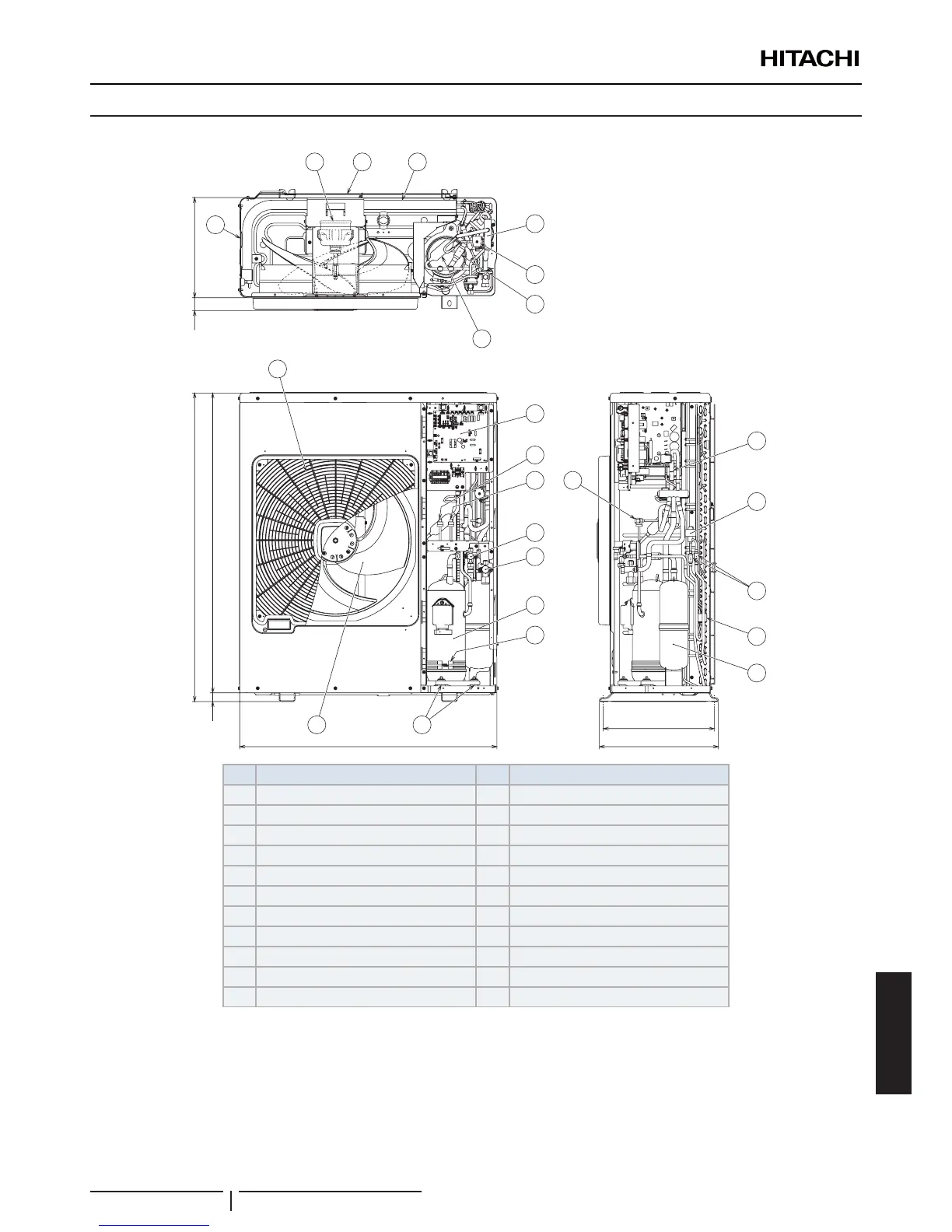

6.2 RAS-(5-6)H(V)NC1E
410
3
4
37048
22
22 2
7
9
1108
1140
32
950
21
15
14
8
5
13
440
6
1
10
11
5
18
12
17
16
19
20
Nr Del Nr Del
1 Kompressor 12 Backventil
2 Värmeväxlare 13 Ackumulator
3 Propelleräkt 14 Fog
4 Fläktmotor 15 Ellåda
5 Sil 16 Högtrycksvakt för skydd
6 Fördelare 17 Tryckvakt för kontroll
7 Omkastningsventil 18 Ljuddämpare
8 Mikrodatorstyrd expansionsventil 19 Vevhusvärmare
9 Magnetventil 20 Vibrationsdämpande gummi (4 st.)
10 Stoppventil för gasrör 21 Luftutlopp
11 Stoppventil för vätskerör 22 Luftintag
DELARNAS NAMN
PMML0395B rev.0 - 11/2015
165
