Hitachi VM-E530A - Specifications; General Specifications; Video Recorder Specifications; Camera Specifications

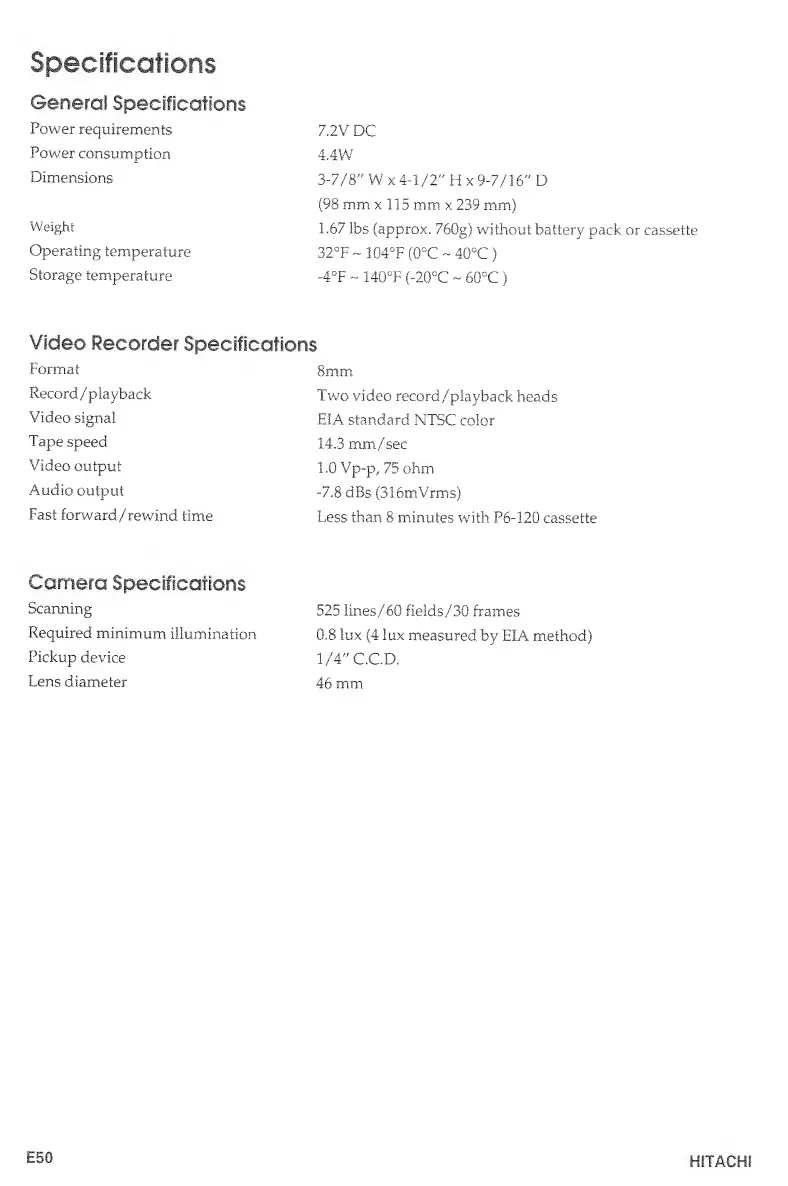

Specifications
General Specifications
Power requirements
Power consumption
Dimensions
Weight
Operating temperature
Storage temperature
7.2V DC
4.4W
3-7/8" W x 4-1/2" H x 9-7/16" D
(98 mm x 11.5 mm x 239 mm)
1.67 lbs (approx. 760g) without battery pack or cassette
32°F ~ 104°F (0°C ~ 40°C )
-4°F ~ 140°F (-20°C ~ 60°C )
Video Recorder Specifications
Format-
Record/ playback
Video signal
Tape speed
Video output
Audio output
Fast forward /rewind time
Camera Specifications
Scanning
Required minimum illumination
Pickup device
Lens diameter
8mm
Two video record /playback, heads
EIA standard NTSC color
14.3 mrn/ sec
1.0 Vp-p, 75 ohm
-7.8 dBs (316mVrms)
Less than 8 minutes with P6-120 cassette
525 lines/60 fields/30 frames
0.8 lux (4 lux measured by EIA method)
1/4" CCD.
46 mm
£50
HITACHI
