Hitron CGNM-2250 User’s Guide
4.5 The Port Triggering Screen
Use this screen to configure port triggering. You can turn port triggering on or off and
configure new and existing port triggering rules.
Click Basic > Port Triggering. The following screen displays.

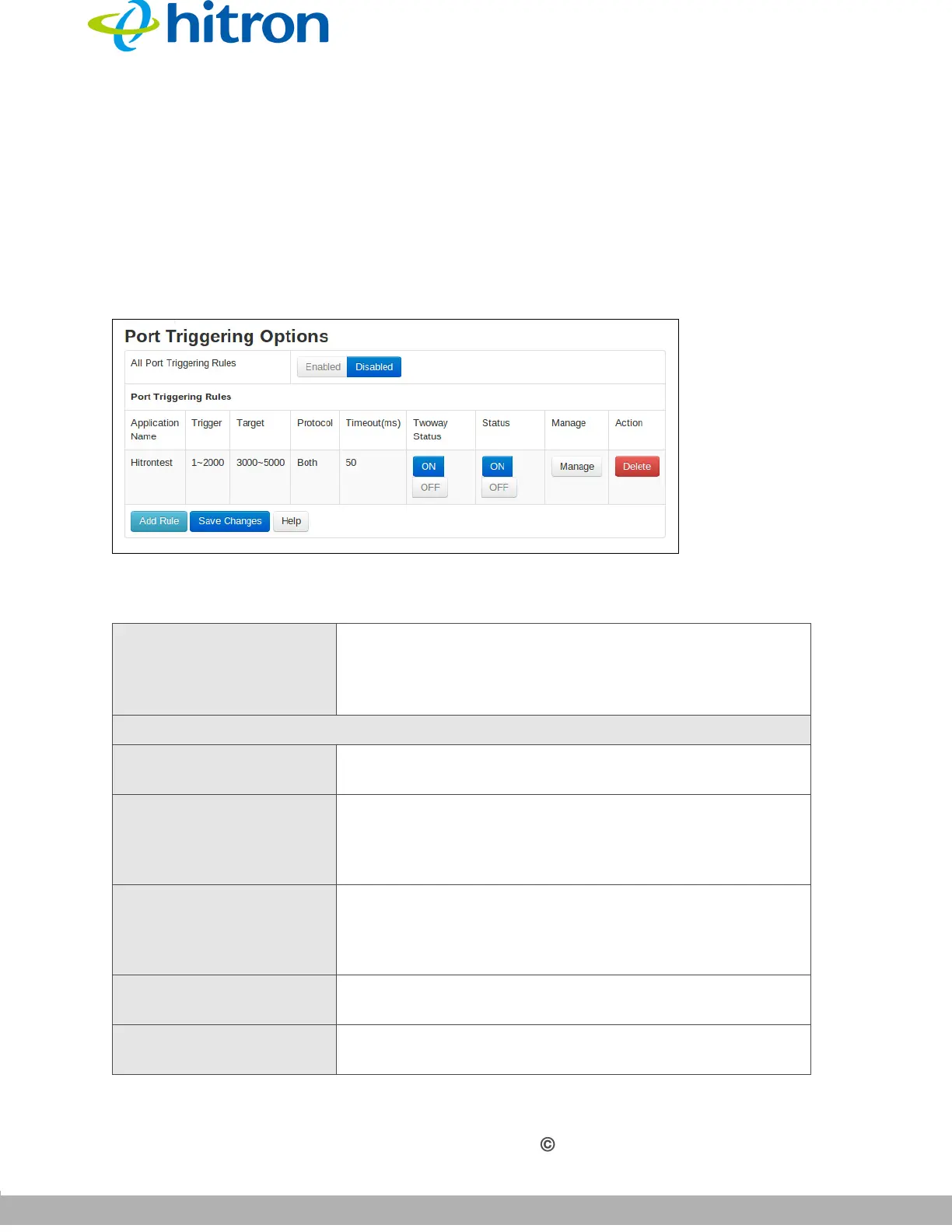

Figure 24: The Basic: Port Triggering Screen
The following table describes the labels in this screen.
Table 20: The Basic: Port Triggering Screen
All Port Triggering Rules Use this field to turn all port triggering rules on or off.
Select Enabled to turn all port triggering rules on.
Select Disabled to turn all port triggering rules off.
Port Triggering Rules
Application Name This displays the arbitrary name you assigned to the
rule when you created it.
Trigger This displays the range of outgoing ports. When the
CGNM-2250 detects activity (outgoing traffic) on these
ports from computers on the LAN, it automatically opens
the Target ports.
Target This displays the range of triggered ports. These ports
are opened automatically when the CGNM-2250 detects
activity on the Trigger ports from computers on the
LAN.
Protocol This displays the protocol of the port triggering rule
(TCP, UDP or Both).
Timeout (ms) This displays the time (in milliseconds) after the CGNM-
2250 opens the Target ports that it should close them.
