D2 Drive User Guide v1.8 5. Drive Configuration
HIWIN Mikrosystem Corp. 111
Input
Function
Electronic Gear Select
(DIV1, DIV2)
Operation mode
Pos
Vel
Trq
Std
Symbol
DIV1, DIV2
Default Input
I5
Circuit
Refer to 4.5.1
Function description:
Switch among four sets of electronic gear ratio.
Instructions:
Go to the “Mode” tab of configuration center, and select “Position Mode” in “Primary Operation
Mode” or “Secondary Operation mode” to set four sets of electronic gear ratio, as shown in the
following figure.

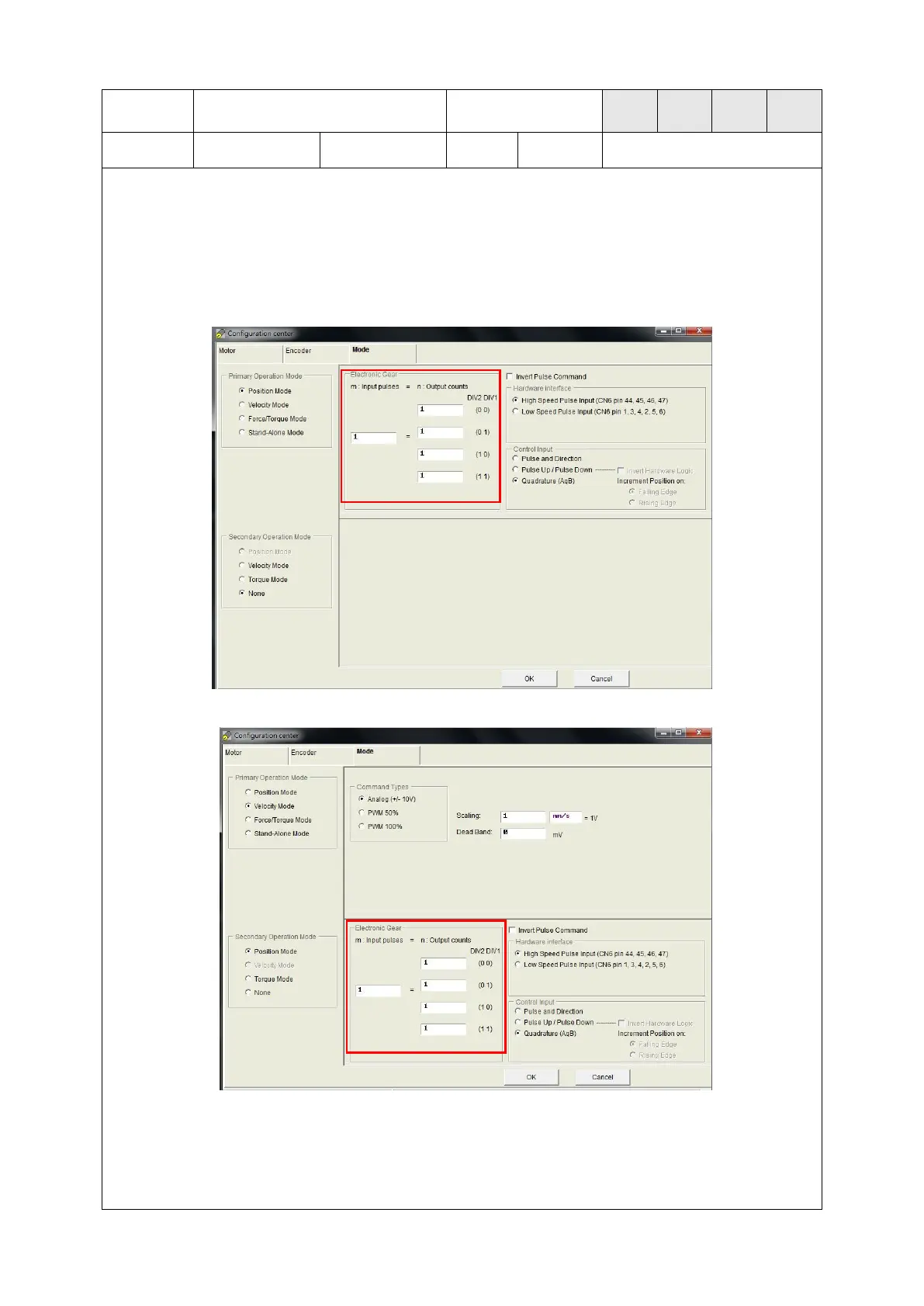

Configuration page for electronic gear ratio (Primary Operation Mode)
Configuration page for electronic gear ratio (Secondary Operation Mode)
Based on the different combination of DIV1 and DIV2, the required electronic gear ratio can be
selected. The corresponding combination is shown in the following table. For example, the
third electronic gear ratio is required, “Electronic Gear Select (DIV2)” is set to True and
“Electronic Gear Select (DIV1)” is set to False.
