D2 Drive User Guide v1.8 5. Drive Configuration
HIWIN Mikrosystem Corp. 120
Output
function
Zero Speed Detected
Operation mode
Pos
Vel
Trq
Std
Symbol
ZSPD
Default output
O4
Circuit
Refer to 4.5.2
Function description:

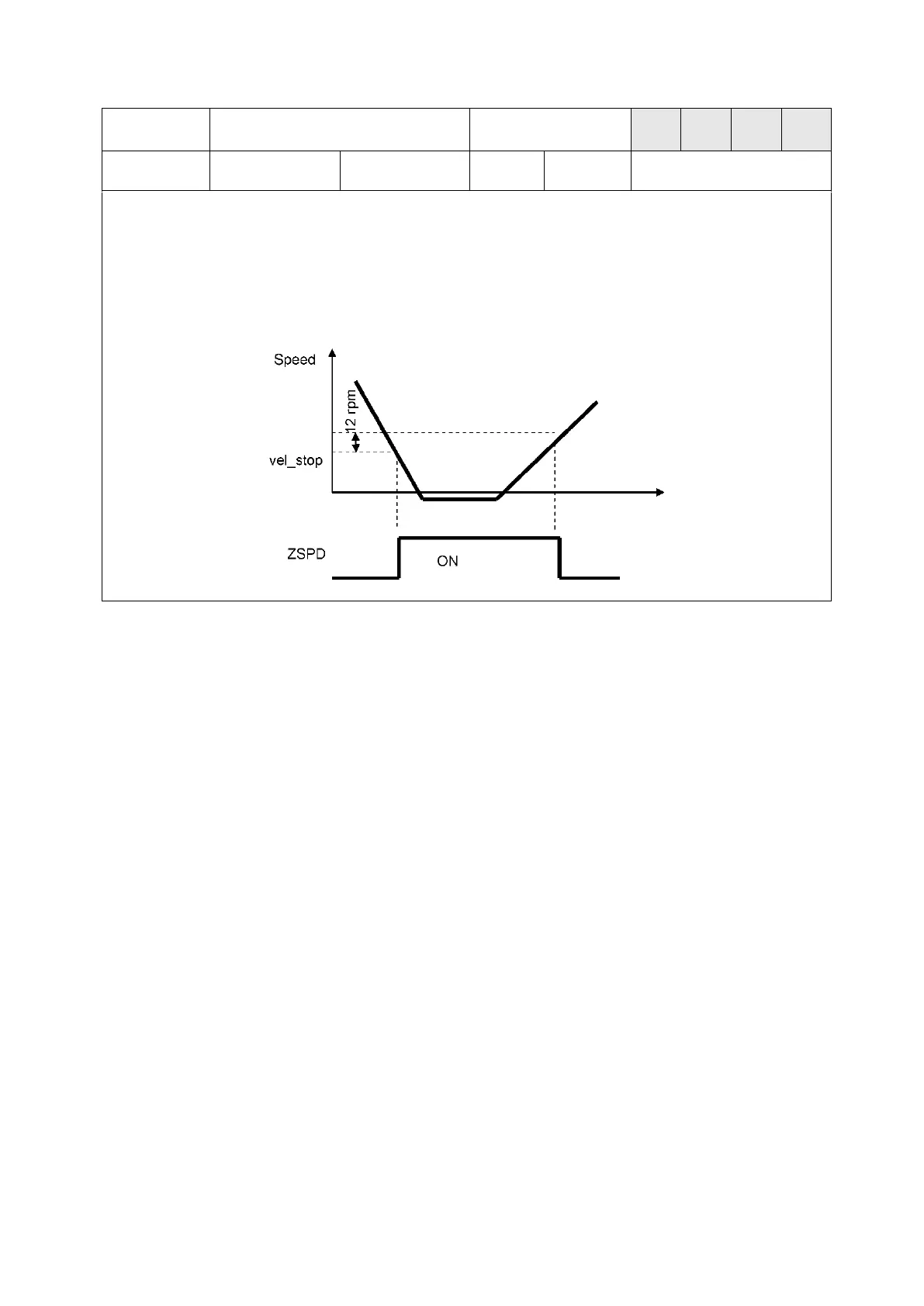

The drive outputs this signal when the motor speed is close to zero.
Instructions:
The so-called “speed closed to zero” means that the motor speed is less than the threshold set
by the parameter “vel_stop”. In addition, this feature has the hysteresis of 12 rpm to avoid the
bounce of ZSPD output signal. The parameter “vel_stop” refers to Section 8.3.
