D2 Drive User Guide v1.8 6. Drive Tuning
HIWIN Mikrosystem Corp. 158

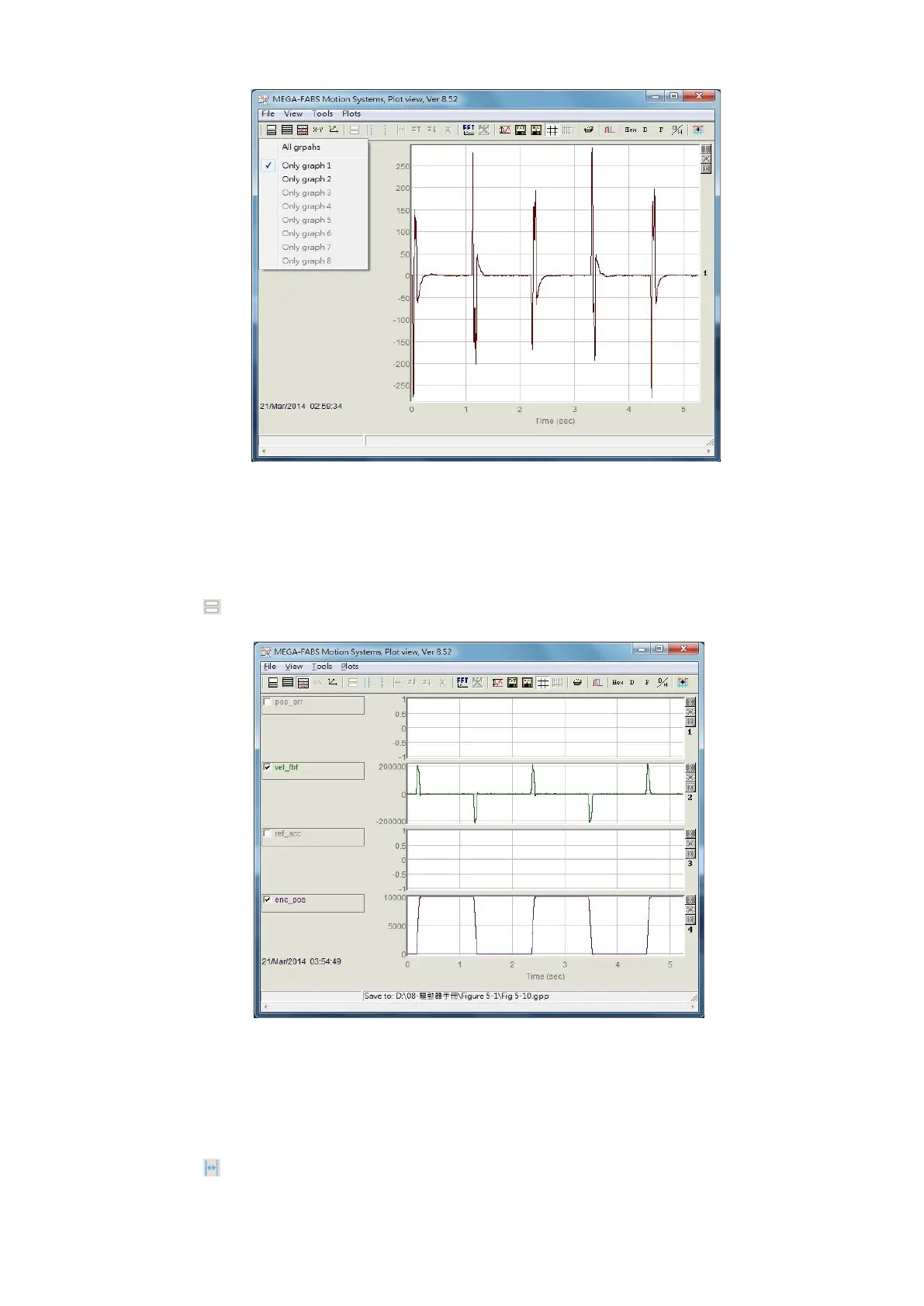

Fig. 6-10
(2) Show or hide physical quantities
If the physical quantity is unchecked, the graphic display area will hide the graph of this
physical quantity. As shown in Fig. 6-11, it is the example of two physical quantities being
unchecked. To uncheck all physical quantities, click the related icon on the main toolbar
area as follows.
- : Uncheck all physical quantities (or click the “Delete” button).
Fig. 6-11
(3) Zoom in/out
To observe a more subtle change in a certain interval, use the solid-line and dotted-line
cursors to select the interval needed to zoom in. “Plot vies” provides the function of zoom
in/out on the X and Y axes. The related icon and the operation method on the main
toolbar area is described as follows.
- : Zoom in on the graph between the blue solid-line and dotted-line cursors on
the X axis.
