D2 Drive User Guide v1.8 6. Drive Tuning
HIWIN Mikrosystem Corp. 175

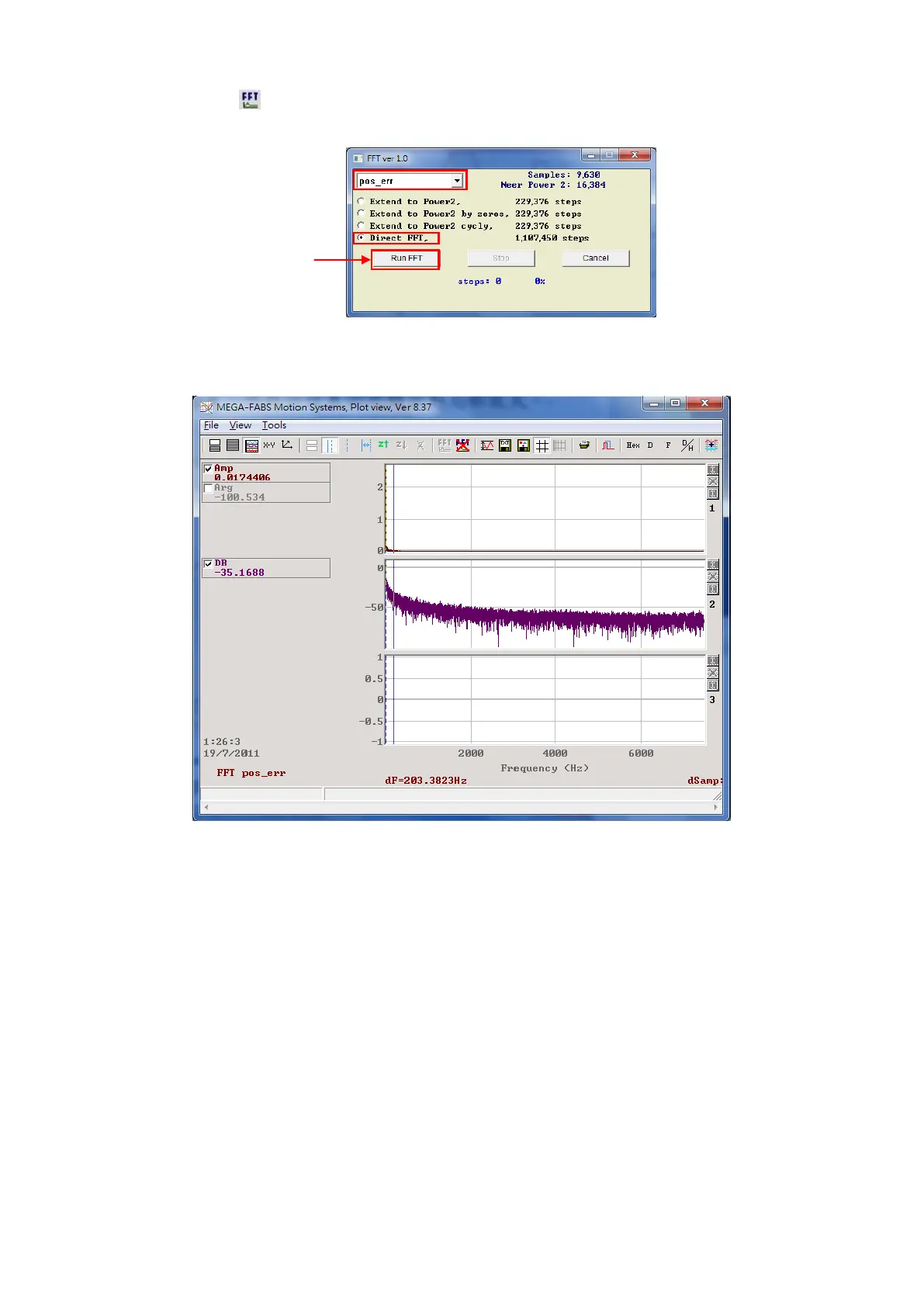

Step 5. Click at the toolbar of “Plot view” window to open the operation window for fast
Fourier transform (FFT). Execute FFT on pos_err, as shown in Fig. 6-40.
Fig. 6-40
Step 6. After FFT is completed, the window of Fig. 6-41 appears.
Fig. 6-41
Step 7. Enlarge the low-frequency region to observe the maximum amplitude of vibration
frequency, as shown in Fig. 6-42.
Step 8. Enter the value of low-frequency vibration frequency (this example is 6.7 Hz) into
the “Frequency” field in the “VSF” tab of “Advanced gains” window.
Step 9. Check the “enable VSF” option to enable the vibration suppression feature, as
shown in Fig. 6-43. Note that: Do not check or uncheck the “enable VSF” option
during motor motion.
Step 10. After the vibration suppression feature is enabled, it is found from “Scope” that
“Position Error” has become smaller when the motor is stoped, as shown in Fig.
6-44.
