Operation - Editing Rotor Data MC10 HS
5 - 4
5.2.7 Exporting a Rotor
Main Menu \ Rotor Database.
Mark rotor to be exported.
Press "Export" key.

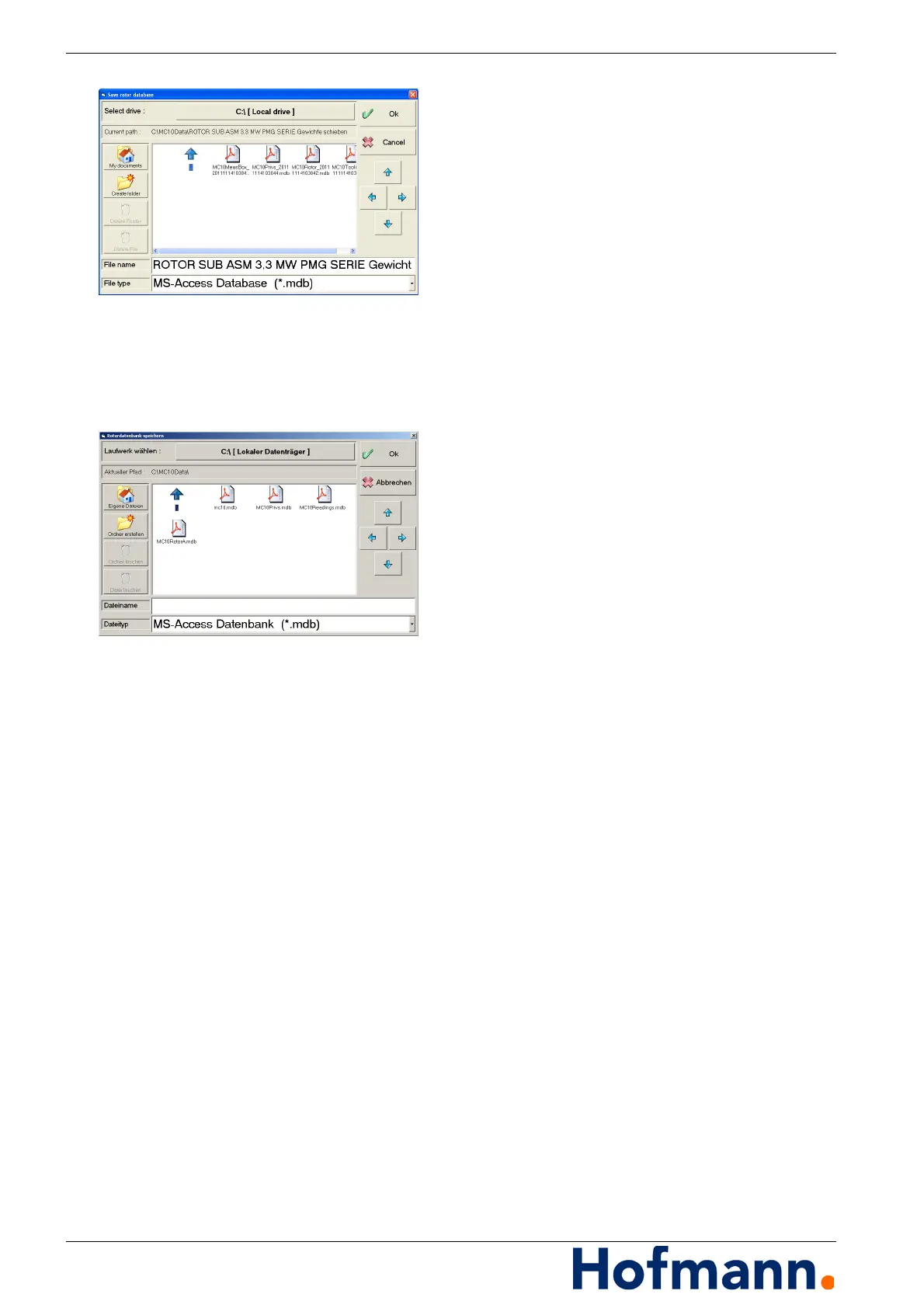

The Save dialogue appears.
Select drive and location for saving.
Enter file name.
The file extension ".mdb" is automatically add-
ed.
Press the "Ok" button.
The rotor data set is saved as a MSAccess data
bank file, the dialogue field will be closed.
5.2.8 Importing a Rotor
Main Menu \ Rotor Database.
Select the non-assigned line.
Press "Import" key.
The Import dialogue appears.
Select rotor data bank file.
Press the "Ok" button.
The rotor data set is imported, the dialogue box
is closed.
5.2.9 Saving the Database
Main Menu \ Rotor Database.
Press the "Save Database" key.
The Save dialogue appears.
Select drive and location for saving.
Enter file name.
The file extension ".pdf" is automatically added.
Press the "Ok" button.
Data is saved as a PDF file,
the dialogue field closes.
