MC10 HS Other Functions - Generating a Report
6 - 3
6.2 Generating a Report
The report shows the initial unbalance (1. measure-
ment) and the residual unbalance after a correction
(2. measurement) for a rotor together with the rotor
data and editable header data.
Measuring screen (Operation).) / Command
bar: Print.
6.2.1 Editing the Report Header

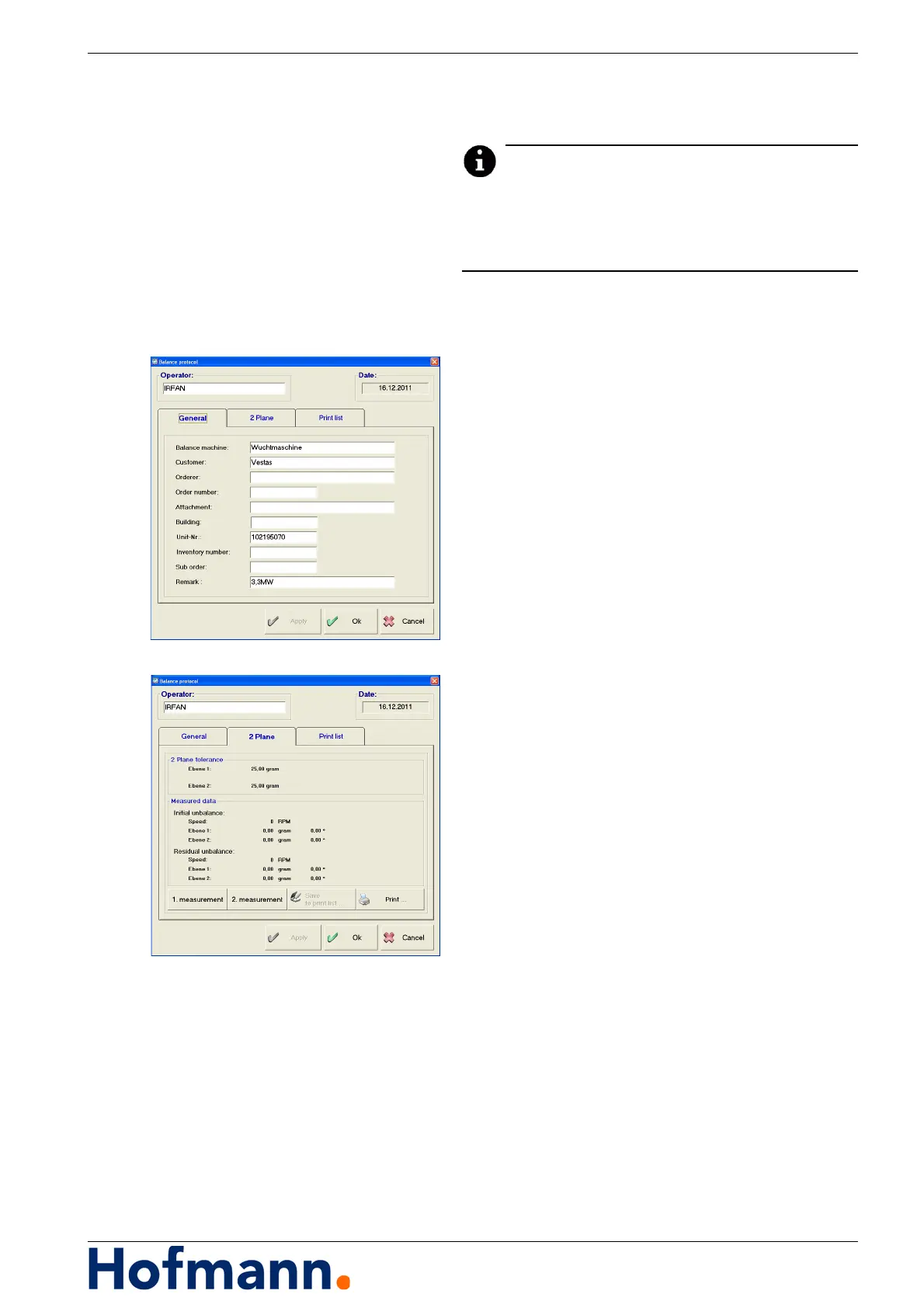

Select "General" tab.
Enter / change text for the report header.
Press the "Apply" key.
6.2.2 Generating the Measurement Values
Select "2 Plane" tab.
Carry out measuring run.
Press "1. measurement" button.
Measurement values are used for 1
st
measure-
ment.
Carry out measuring run. Correct unbalance if
required and carry out another measurement
until the measurement values are within toler-
ance.
If measurement values are within tolerance
press "2. measurement" tab.
Measurement values are used for 2
st
measure-
ment.
Text that will appear on the report is displayed.
6.2.3 Printing a Single Report
Select "2 Plane" tab.
Press the "Print..." key.
A single report is printed.
6.2.4 Saving Report to List
Select "2 Plane" tab.
Press the "Save in print list..." key.
The report is entered in the print list (third tab).
