Hofmann MC10 HS User Manual

MC10 HS Basic Operation - Unbalance plotting
4 - 15
4.6 Unbalance plotting
Curve shape  Press the "Unbalance Plotting" key:
 Note "ATTENTION: Run-up / Run-down" is dis-
played.
 Press "Curve" (A) key.

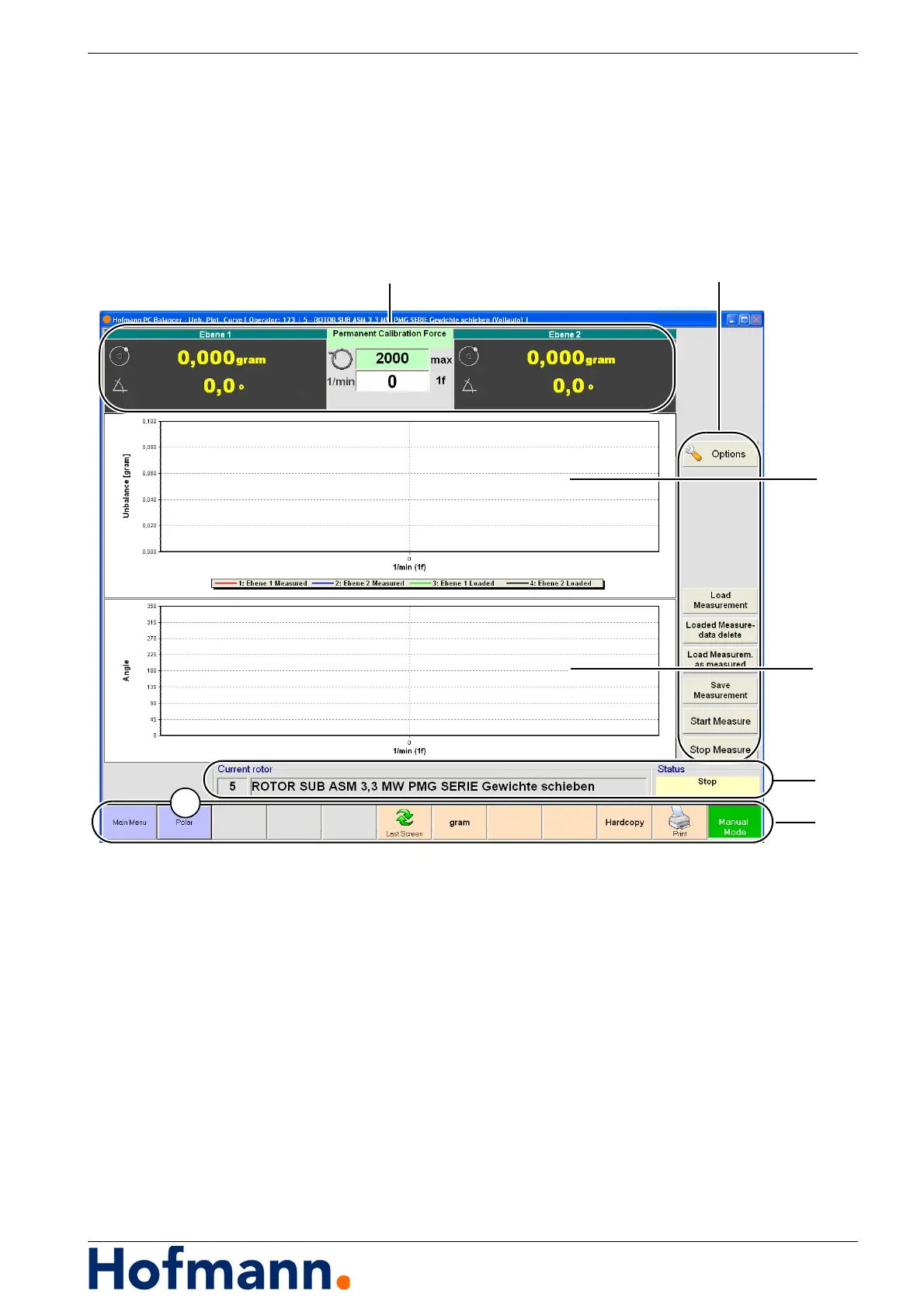

Fig. 4-4: Unbalance plotting
1 - Indication of unbalance amount and angle,
type of calibration, direction of rotation, rotation-
al speed
2 - Command Keys
3 - Indication of unbalance amount versus frequen-
cy.
4 - Indication of unbalance angle versus frequency.
5 - Indication of currently selected rotor and status
display
6 - Command Bar.
1 2
6
3
4
5
A
