Operation - Editing Rotor Data MC10 HS
5 - 6

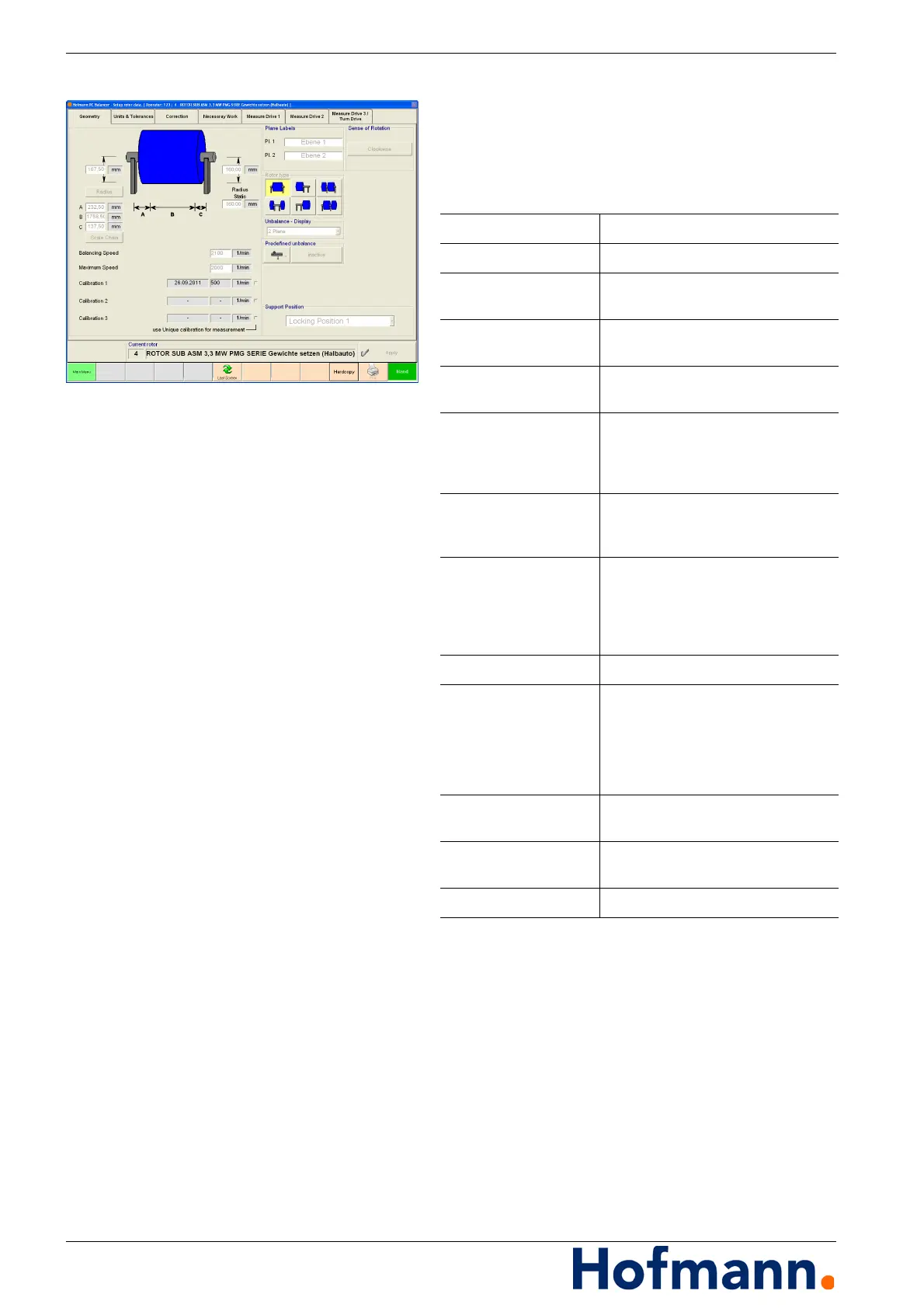

5.2.11 Setup Rotor Data - Geometry
Main menu \ Rotor settings
Select "Geometry" tab.
Enter values or change settings:
Press the "Apply" key.
Rotor dimensions Enter dimensions of the rotor.
Radius / Diameter Select diameter or radius.
Incremental dimension
/ Absolute dimension
Select dimensions (A,B,C) in abso-
lute or incremental system.
Maximum speed for
rigid rotor behaviour
Enter speed.
Maximum permissible
rotor speed
Enter speed.
Rotor specific calibra-
tion 1 / 2 / 3
Display of rotor specific calibrations
carried out along with date and
speed, also refer to Chapter 5.4 Cal-
ibrating.
Use rotor specific cali-
bration for measure-
ment.
Select rotor specific calibrations to
be use for measurement.
Plane labels Enter labels for planes, for horizon-
tal balancing machines these are
typically:
Plane 1 - left
Plane 2 - right
Rotor type Select rotor type.
Unbalance display Two-plane unbalance display in the
preset correction planes.
Static / Couple - Display of static and
couple unbalance.
Static - Display of static unbalance.
Predefined unbalance Enter and activate / deactivate sim-
ulation unbalance.
Sense of rotation Select Clockwise or Counter-clock-
wise rotation.
Support position Select: Locking positions 1 / 2 / 3 / 4
