MC10 HS Basic Operation - Unbalance plotting
4 - 17

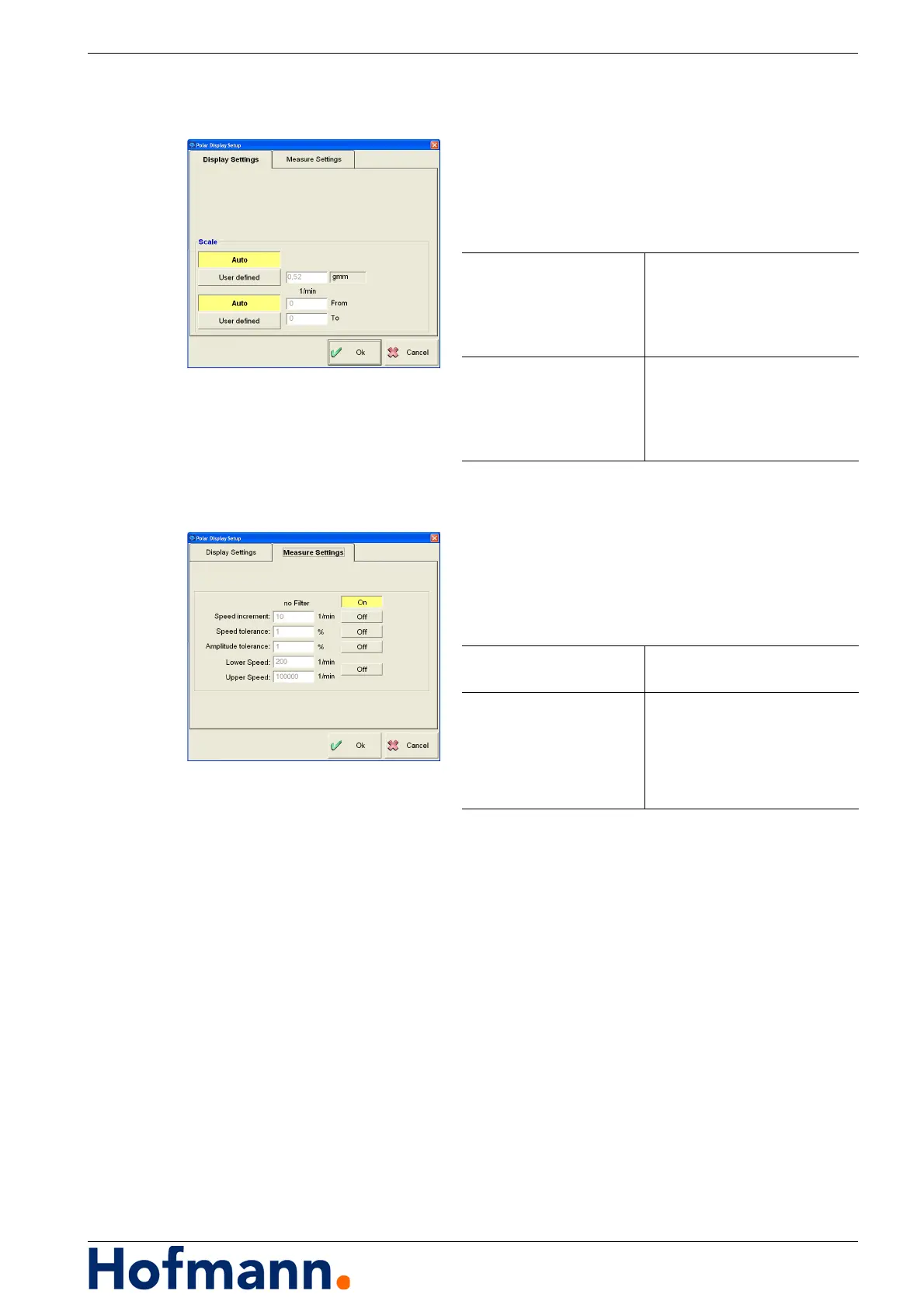

4.6.1 Setting the Plots
4.6.1.1 Display settings
 Unbalance Plotting \ Options.
 Select "Display Settings" tab.
 Change settings:
 Press "Ok" or "Cancel" key.
4.6.1.2 Measure Settings
 Unbalance Plotting \ Options.
 Select "Measure Settings" tab.
 Enter values or change settings:
 Press "Ok" or "Cancel" key.
Scaling Auto /
User defined
(top)
Let scaling of the x-axis for both
graphs be adapted automatical-
ly or define as required.
Enter maximum value of sca-
ling.
Speed Auto /
User defined
(bottom)
Let scaling of the y-axis for both
graphs be adapted automatical-
ly or define as required.
Enter scaling range (speed from
/ to)
No Filter Switch filter function on / off
completely.
Speed increment
Speed tolerance
Amplitude tolerance
Lower Speed
Upper Speed
Selection and set-up of the filter
function.
Only one of the four possible fil-
ters can be selected.
