FRAME/BODY PANELS/EXHAUST SYSTEM
DISASSEMBLY/ASSEMBLY

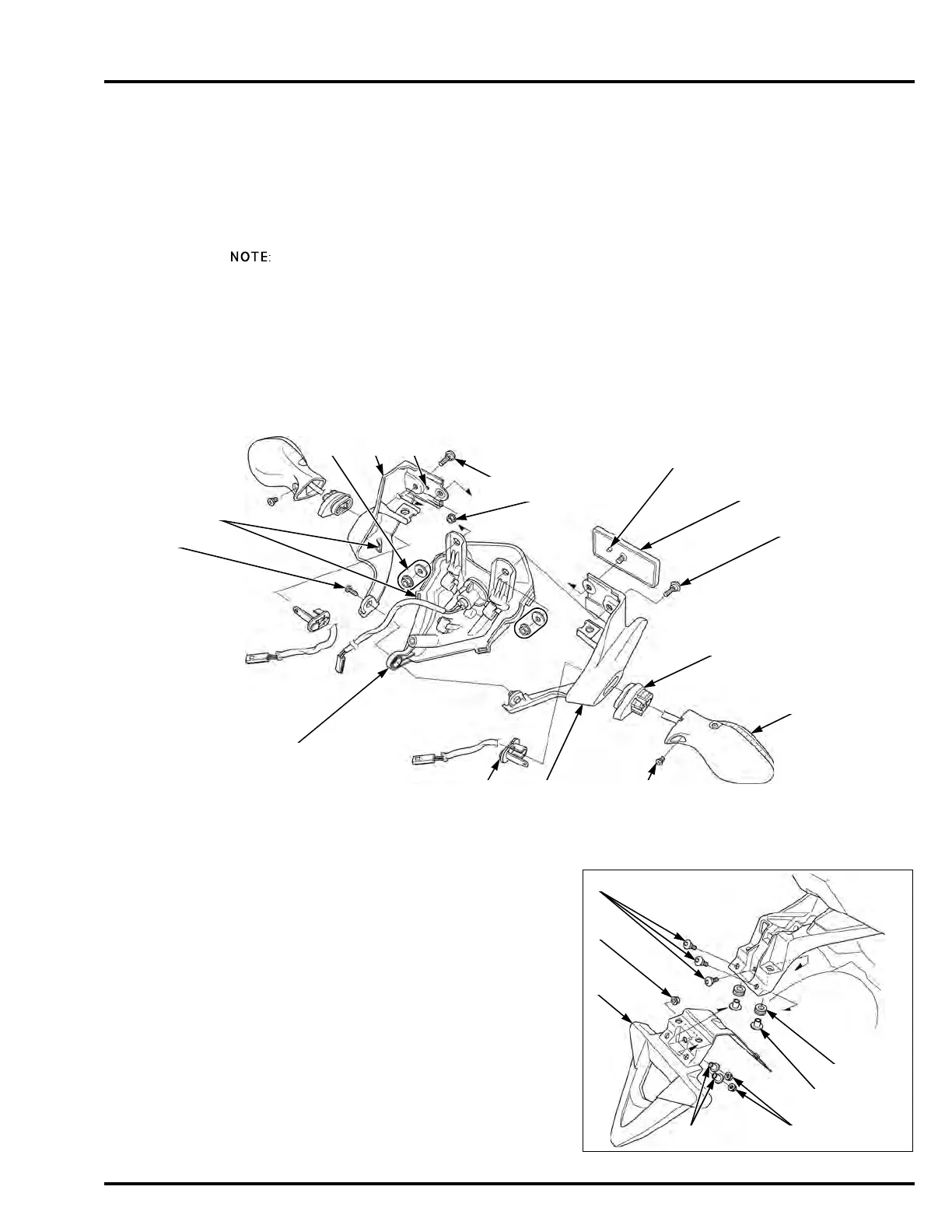

Remove the reflector mounting nut [1] and reflector [2].
Remove the screw [3], nuts [4], washers [5] and socket bolts [6] and separate the tail light covers [7] and brake/
tail/license light [8].
Remove the turn signal light mounting screw [9], setting plate [10] and turn signal light [11].
Remove the mounting rubber [12].
Assembly is in the reverse order of disassembly.
• Align the tail light cover tabs with the brake/tail/license light slots.
• Align the reflector tab [13] with the left tail light cover hole [14].
MUD GUARD
REMOVAL/INSTALLATION
Remove the brake/tail/license light assembly (page 2-
10).
Remove the socket bolts [1], nuts [2], collars [3] and
mud guard [4].
If necessary, remove the brake/tail/license light
assembly mounting collars [5] and grommets [6].
Installation is in the reverse order of removal.
TORQUE:
Reflector mounting nut:
1.7 N·m (0.2 kgf·m, 1.3 lbf·ft)
Turn signal light mounting screw:
2.5 N·m (0.3 kgf·m, 1.8 lbf·ft)
[1]
[2]
[6]
[6]
Align
[4]/[5] [7]
[7]
[8]
[12]
[9]
[11]
[10]
[3]
[13]
[14]
[1]
[2][3]
[4]
[5]
[6]
[2]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
