DUAL CLUTCH TRANSMISSION (DCT) (NC700XD/SD)

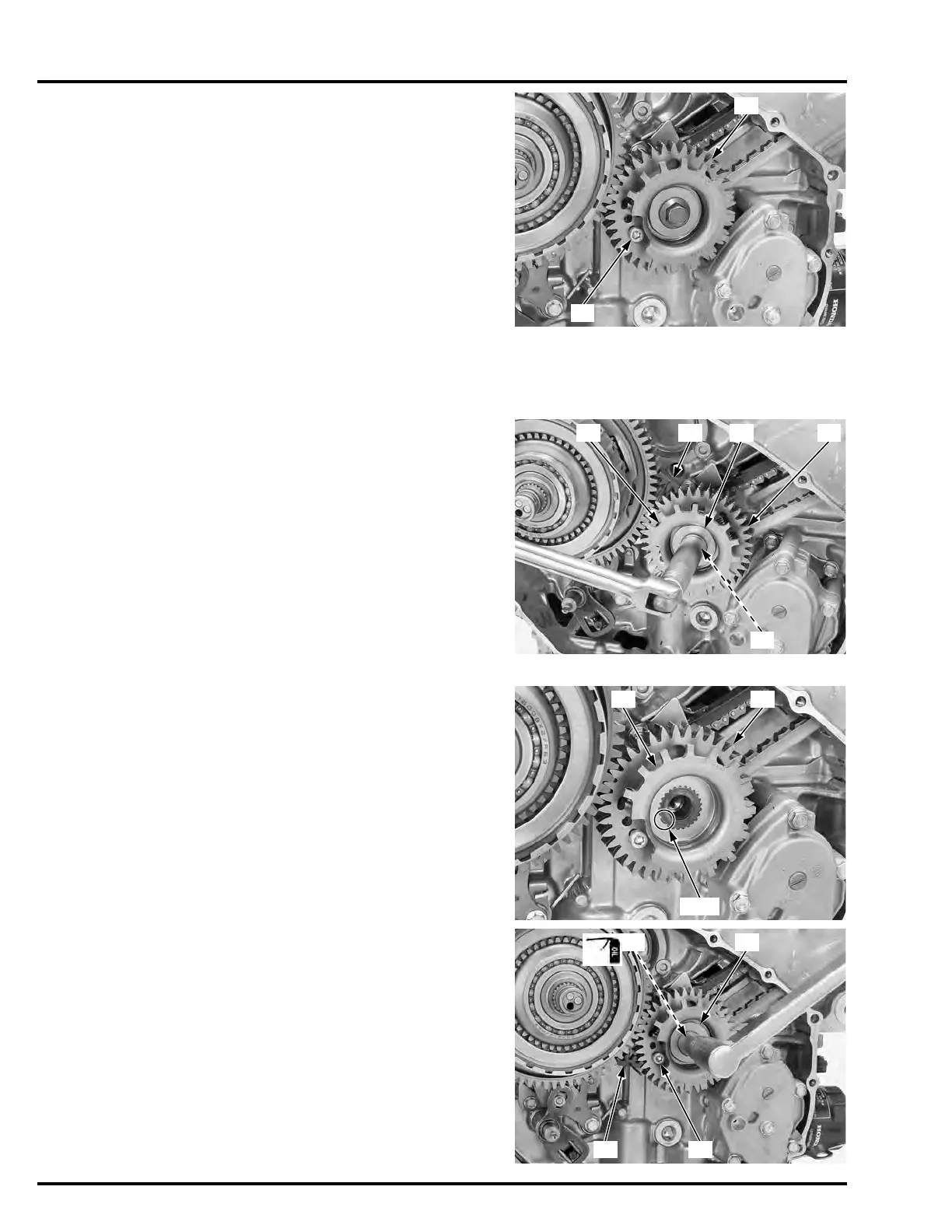

Remove the 6 mm socket bolt [1] to free the primary
drive gear and sub-gear [2].
Install the right crankcase cover (page 12-103).
PRIMARY DRIVE GEAR/CKP SENSOR
ROTOR
REMOVAL
Remove the right crankcase cover (page 12-97).
Hold the primary drive gear and sub-gear with a 6 mm
socket bolt (page 12-105).
Install the special tool between the primary drive and
driven gears, and loosen the primary drive gear bolt [1].
Remove the primary drive gear bolt, washer [3], CKP
sensor rotor [4] and primary drive gear/sub-gear [5]
from the crankshaft.
INSTALLATION
Install the primary drive gear/sub-gear [1] and CKP
sensor rotor [2] onto the crankshaft by aligning their
wide grooves with the wide tooth.
Apply engine oil to the primary drive gear bolt threads
and seating surface.
Install the washer [1] and primary drive gear bolt [2].
Install the special tool between the primary drive and
driven gears, and tighten the primary drive gear bolt.
Remove the 6 mm socket bolt [4] to free the primary
drive gear and sub-gear.
Install the right crankcase cover (page 12-103).
[1]
[2]
TOOL:
Gear holder, M2.5 [2] 07724-0010100
Do not separate the
sub-gear from the
primary drive gear
unless necessary.
[3][4] [2]
[1]
[5]
Align
[2] [1]
TOOL:
Gear holder, M2.5 [3] 07724-0010100
TORQUE: 93 N·m (9.5 kgf·m, 69 lbf·ft)
[4][3]
[2] [1]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
