17-38
dummyheaddummyhead

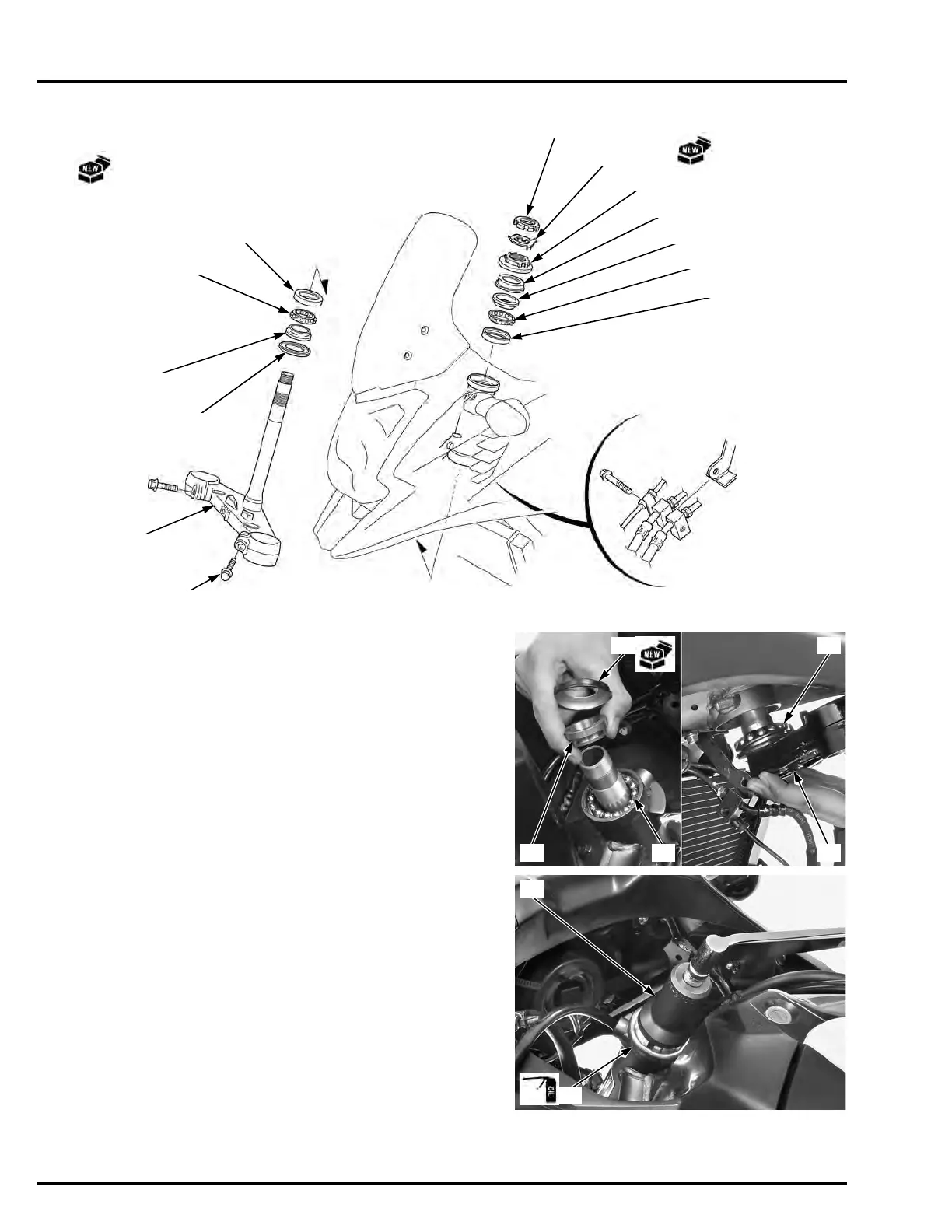

FRONT WHEEL/SUSPENSION/STEERING
INSTALLATION
Apply 3 – 5 g (0.1 – 0.2 oz) of specified grease to each
steering head bearing inner races and outer races
sliding surface (page 1-23).
Apply specified grease to a new steering head bearing
dust seal lips (page 1-23).
Install the bearings [1] in the lower inner race and upper
outer race.
Install the steering stem [2], upper inner race [3] and
dust seal [4].
Apply engine oil to the steering stem adjusting nut [1]
threads.
Install and tighten the steering stem adjusting nut to the
specified torque using a special tool.
STEERING STEM
39 N·m (4.0 kgf·m, 29 lbf·ft)
NC700XA/XD/SA/SD:
LOCK NUT
LOCK WASHER
ADJUSTING NUT
UPPER OUTER RACE
UPPER INNER RACE
UPPER DUST SEAL
UPPER BEARING
LOWER OUTER RACE
LOWER BEARING
LOWER INNER RACE
LOWER DUST SEAL
: BEARINGS
: BEARING RACES
: DUST SEALS
[2]
[1][4]
[3] [1]
TOOL:
Steering stem socket [2] 07916-3710101
TORQUE:23 N·m (2.3 kgf·m, 17 lbf·ft)
[2]
[1]
