COOLING SYSTEM
Installation is in the reverse order of removal.
• Replace the O-rings, gaskets and sealing washer
with new ones.
• Apply engine oil to the large O-ring.
• Align the water pump slit with camshaft tab.
• Align the water bypass hose index mark with the
water pump tab.
• Tighten the water hose band screws to the specified
range as shown.
• Route the hoses properly (page 1-25).
Fill the recommended coolant mixture to the filler neck
and bleed the air (page 8-6).

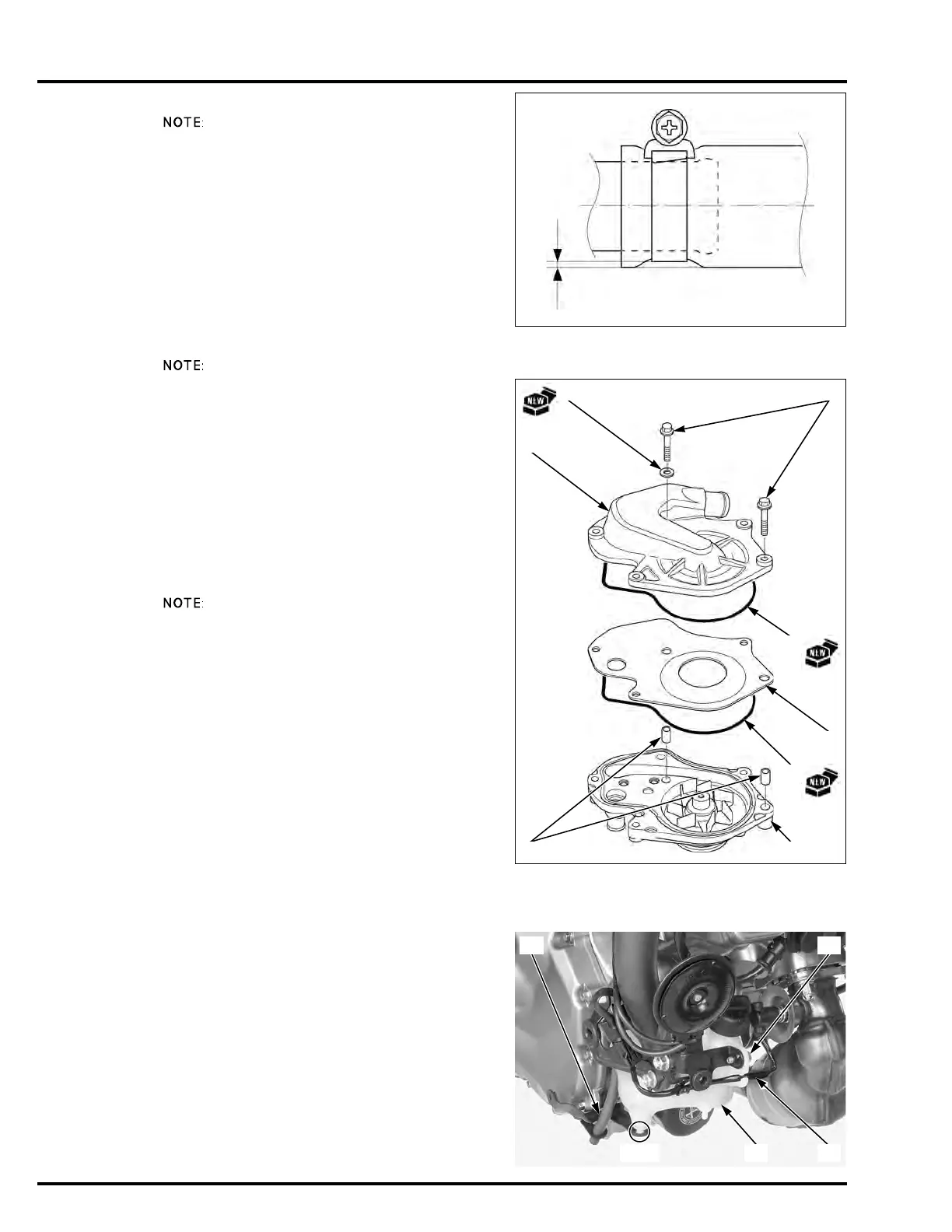

DISASSEMBLY/ASSEMBLY
When engine removed, remove the water pump
assembly.
Remove the following:
– 6 x 32 mm bolts [1]
– Sealing washer [2]
– Water pump cover [3]
– Gasket [4]
– Plate [5]
– Gasket [6]
– Dowel pins [7]
– Water pump body [8]
Assembly is in the reverse order of disassembly.
• Do not disassemble the water pump body.
• Replace the gasket and sealing washer with new
ones
RADIATOR RESERVE TANK
REMOVAL/INSTALLATION
Remove the lower cowl (page 2-28).
Release the O
2 sensor wire [1] from the radiator reserve
tank [2].
Release the reserve tank overflow hose [3].
Remove the bolt [4] and radiator reserve tank.
0 – 1 mm
(0 – 0.04 in)
[1][2]
[3]
[4]
[5]
[6]
[8][7]
[2]
[4]
[1]
[3]
Align

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
