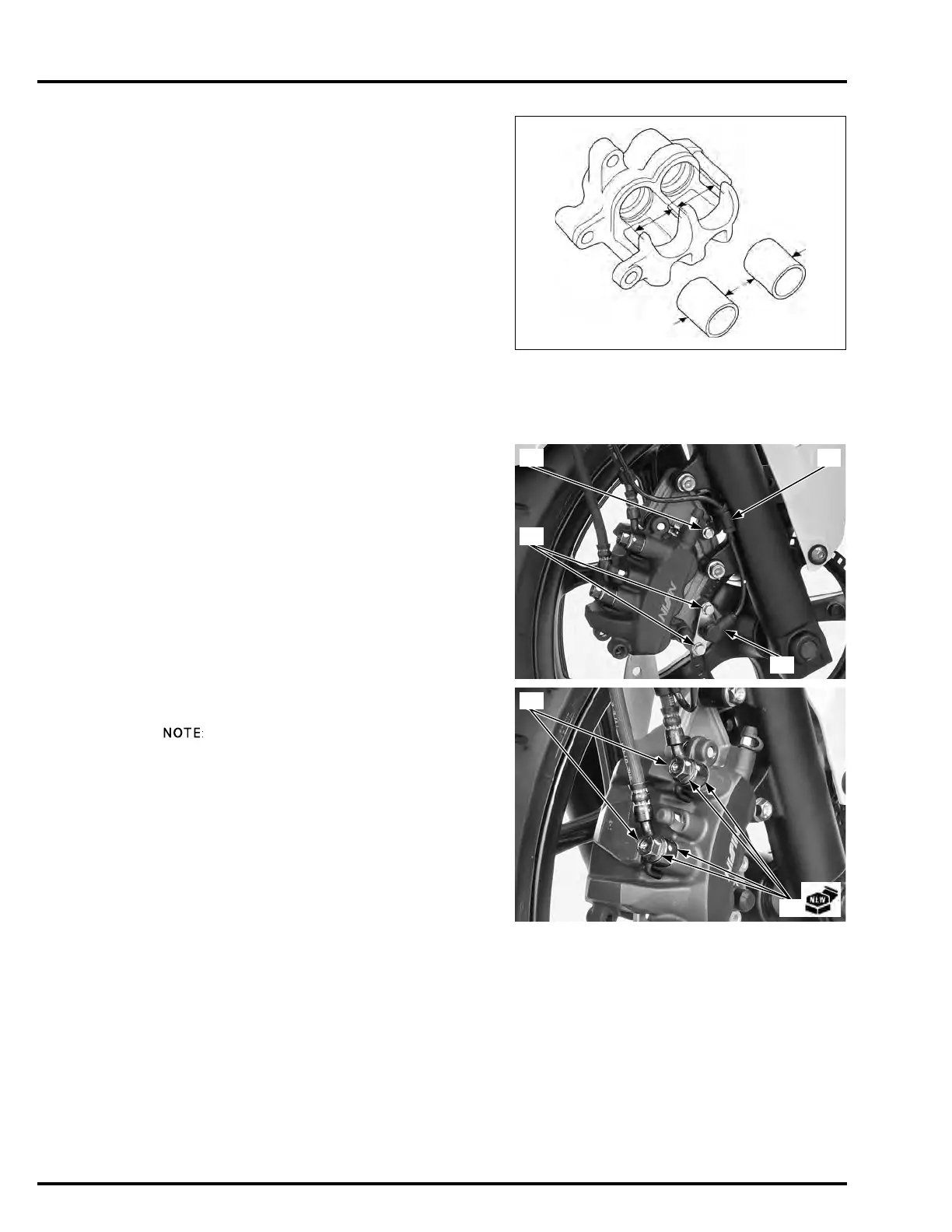

HYDRAULIC BRAKE
INSPECTION
Check the caliper cylinder for scoring or other damage.
Measure the each caliper cylinder I.D.
Check the caliper pistons for scratches, scoring or other
damage.
Measure the each caliper piston O.D.
FRONT BRAKE CALIPER (NC700XA/
XD/SA/SD)
REMOVAL/INSTALLATION
Drain the brake fluid from the hydraulic system (page
19-11).
Remove the brake pads (page 19-17).
Remove the bolt [1] and front wheel speed sensor wire
guide [2].
Remove the bolts [3] and front wheel speed sensor [4].
Remove the brake hose oil bolts [1], sealing washers [2]
and brake hoses.
When removing the oil bolt, cover the end of brake hose
to prevent contamination.
SERVICE LIMIT: 27.060 mm (1.0654 in)
SERVICE LIMIT: 26.91 mm (1.059 in)
[3]
[4]
[1] [2]
[1]
[2]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
