Honda NC700 2012 User Manual

11-10
dummyheaddummyhead

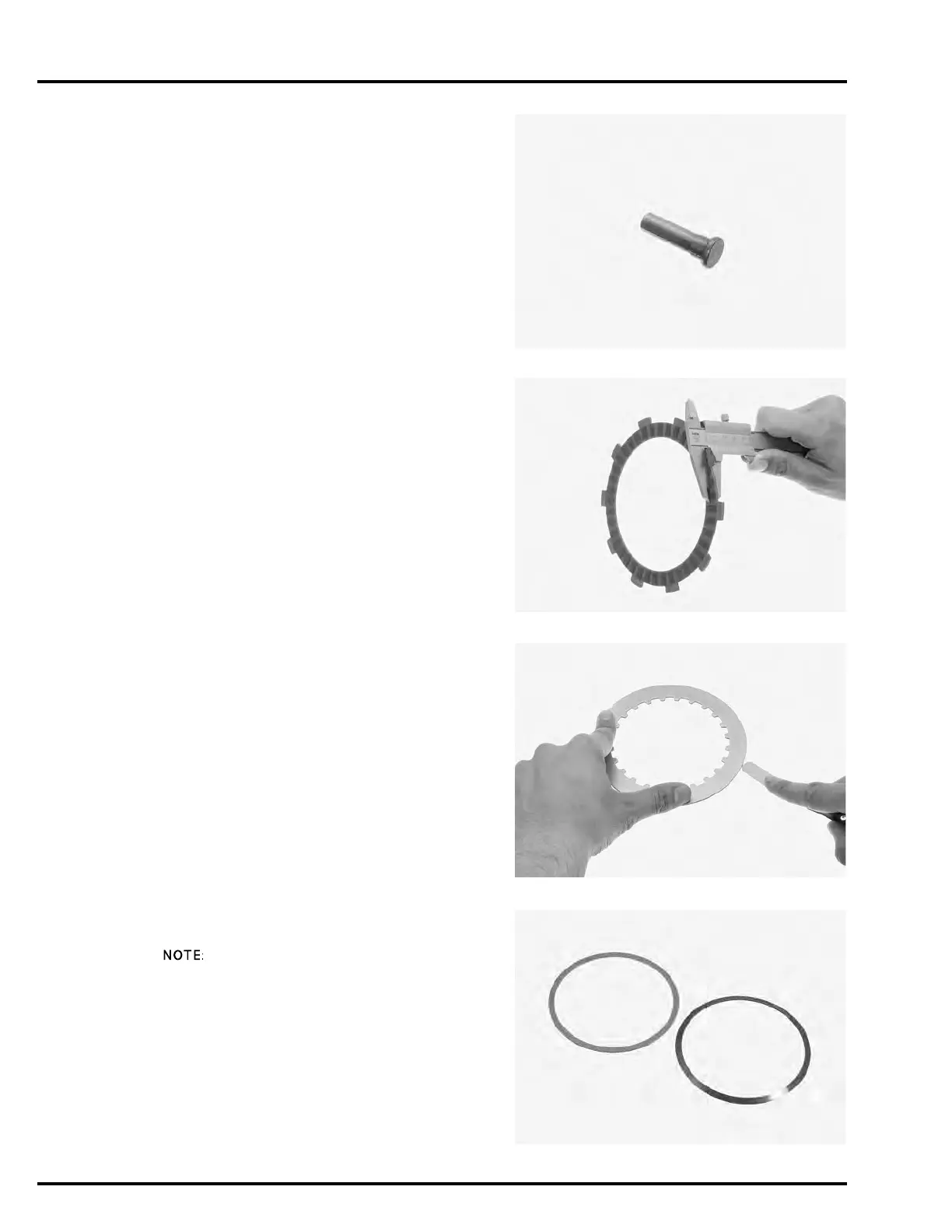

CLUTCH/GEARSHIFT LINKAGE (NC700X/XA/S/SA)
CLUTCH LIFTER ROD B
Check the clutch lifter rod B for damage or abnormal
wear.
CLUTCH DISC
Replace the clutch
discs and plates as
a set.
Replace the clutch discs if they show signs of scoring or
discoloration.
Measure the disc thickness of each disc.
CLUTCH PLATE
Replace the clutch
discs and plates as
a set.
Check the plates for discoloration.
Check the plate warpage on a surface plate using a
feeler gauge.
JUDDER SPRING/SPRING SEAT
Check the judder spring and spring seat for
deformation, warpage or damage.
• A damaged or warped spring seat will cause the
judder spring to be pressed unevenly.
• A damaged judder spring also causes the weak
contact between the discs and plates or uneven
disc/plate contact.
SERVICE LIMIT: 2.3 mm (0.09 in)
SERVICE LIMIT: 0.30 mm (0.012 in)

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
