DUAL CLUTCH TRANSMISSION (DCT) (NC700XD/SD)
SHIFT CONTROL MOTOR/REDUCTION
GEARS
REMOVAL

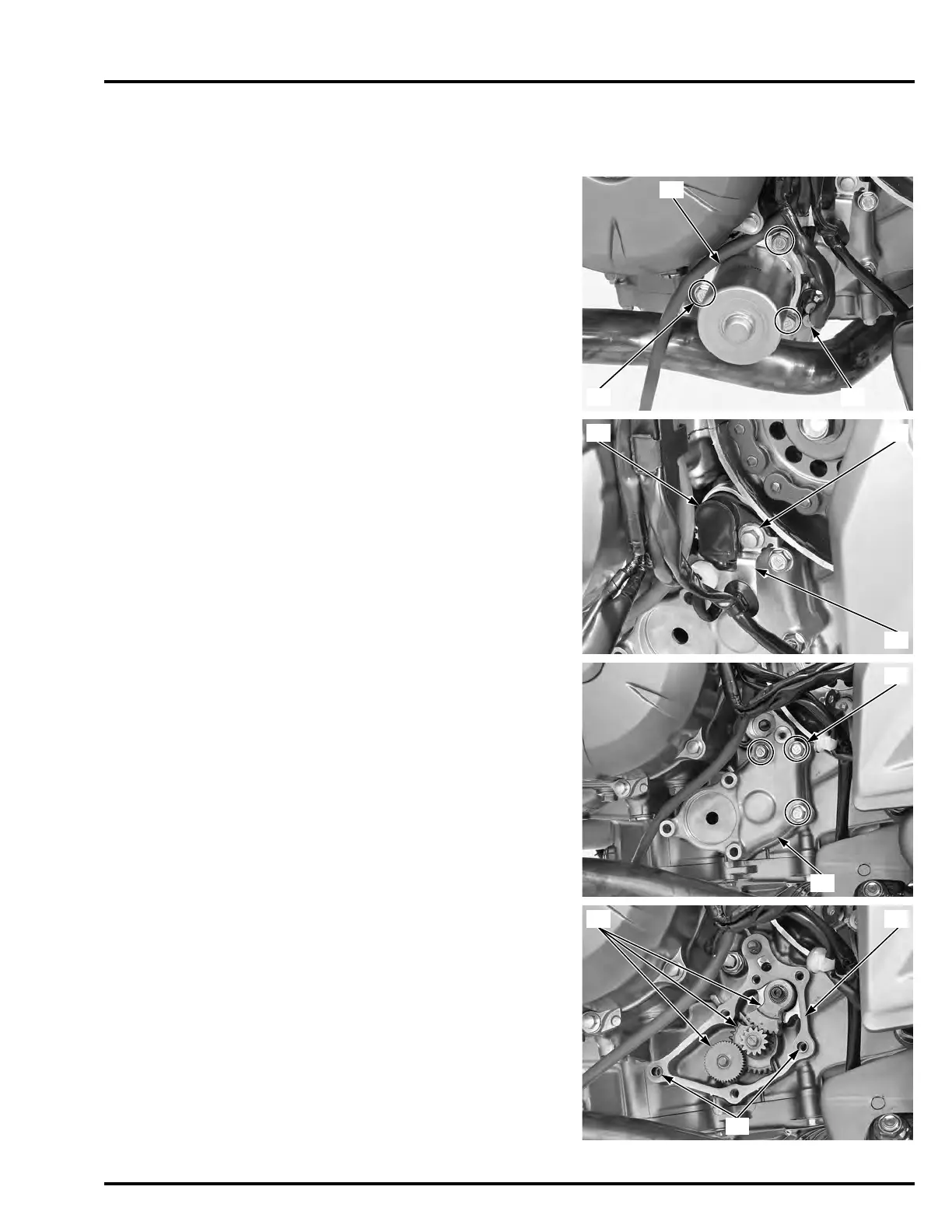

Remove the following:
– Guard pipe (page 2-30)
– Left rear cover (page 2-30)
Disconnect the shift control motor 2P (Black) connector
[1].
Remove the bolts [2] and shift control motor [3].
Remove the bolt [1], wire clip stay [2] and TR sensor [3].
Remove the bolts [1] and reduction gear cover [2].
Remove the dowel pins [1] and gasket [2].
Remove the reduction gears [3].
[1][2]
[3]
[2]
[3] [1]
[2]
[1]
[2][3]
[1]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
