19-29
dummyheaddummyhead
HYDRAULIC BRAKE
Remove the brake caliper mounting bolts [1] and brake
caliper/bracket assembly [2].
Installation is in the reverse order of removal.
• Replace the front brake caliper mounting bolts and
sealing washers with new ones.
• Install the brake hose eyelet stopper against the
caliper body.
• Route the hoses and wire properly (page 1-25).
Fill the reservoir to the upper level and bleed the front
brake system (page 19-12).
Check the air gap between the front wheel speed
sensor and pulser ring (page 20-24).

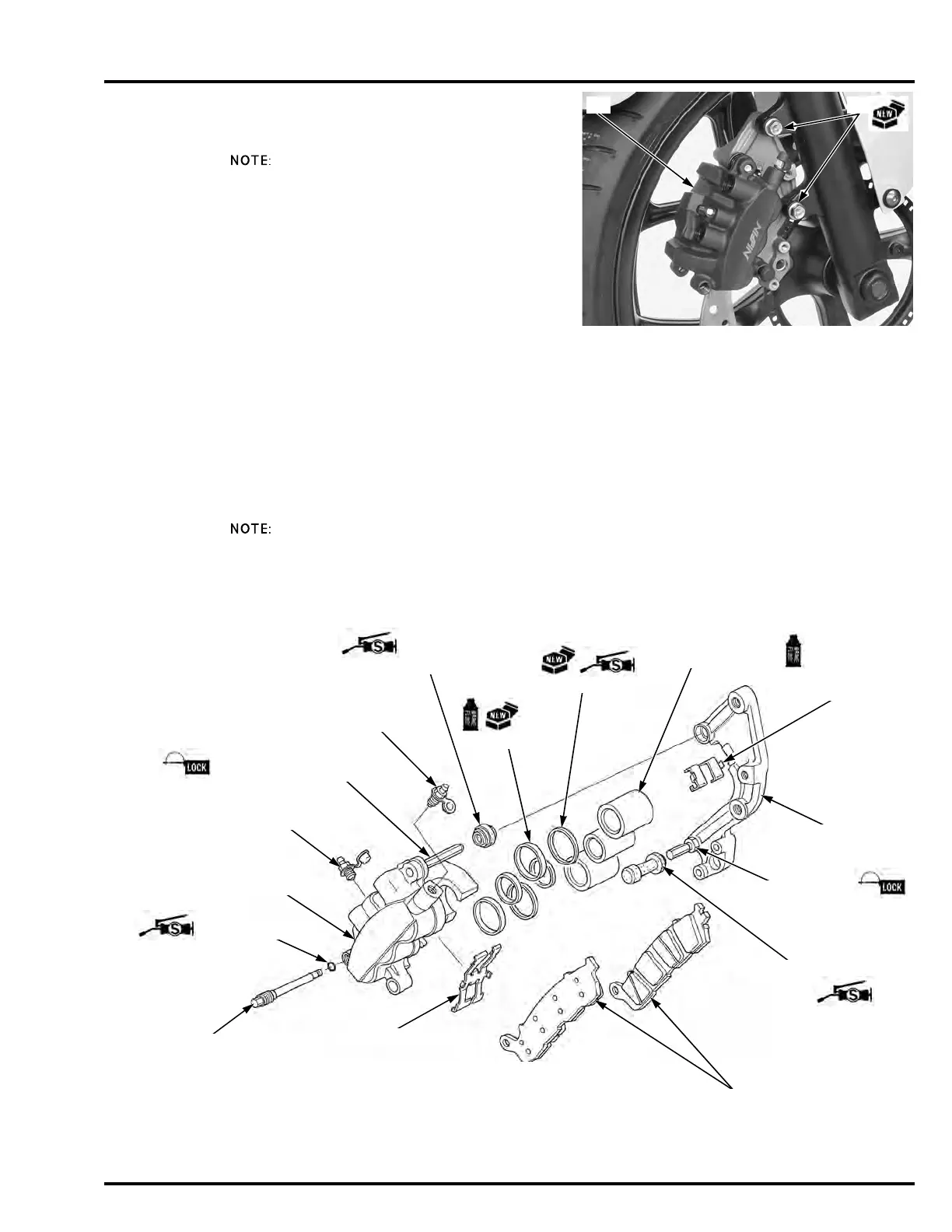

DISASSEMBLY/ASSEMBLY
Disassemble the front brake caliper as following the
illustration.
• Be careful not to damage the piston sliding surface.
• If the caliper pin boot and bracket pin boot are hard
or deteriorated, replace it with a new one.
TORQUE:
Front brake caliper mounting bolt:
30 N·m (3.1 kgf·m, 22 lbf·ft)
Brake hose oil bolt:
34 N·m (3.5 kgf·m, 25 lbf·ft)
BLEED VALVE
5.4 N·m (0.6 kgf·m, 4.0 lbf·ft)
CALIPER BODY
CALIPER PIN BOOT
BRACKET PIN BOOT
PAD SPRING
BRACKET PIN
12 N·m (1.2 kgf·m, 9 lbf·ft)
CALIPER PISTONS
PISTON SEALS
DUST SEALS
PAD RETAINER
CALIPER PIN
22 N·m (2.2 kgf·m, 16 lbf·ft)
BRACKET
BRAKE PAD PIN
17 N·m (1.7 kgf·m, 13 lbf·ft)
STOPPER RING
BLEED VALVE
5.4 N·m (0.6 kgf·m, 4.0 lbf·ft)
BRAKE PADS
