Honda NC700 2012 User Manual

6-11
dummyheaddummyhead

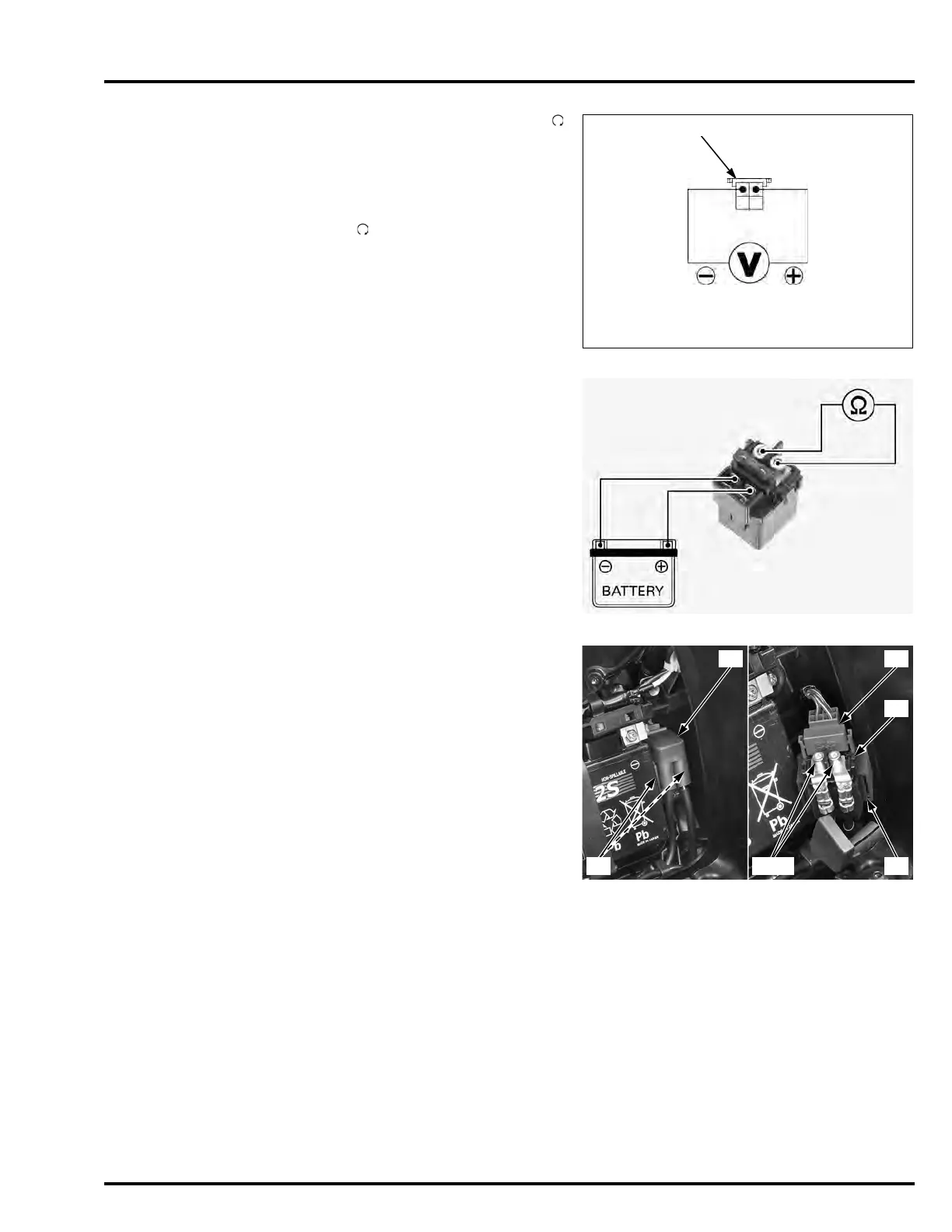

ELECTRIC STARTER
GROUND LINE (NC700XD/SD)
Turn the ignition switch ON and engine stop switch " ".
Measure the voltage between the Yellow/red (+) and
Green/red (–) wire terminals at the starter relay switch
4P (Red) connector [1].
If the battery voltage appears only when the starter
switch is pushed with the ignition switch turned ON and
engine stop switch " ", the starter relay ground line is
normal.
OPERATION CHECK
Remove the starter relay switch (page 6-11).
Connect a 12 V battery to the starter relay switch as
shown.
There should be continuity between the cable terminals
when the battery is connected, and not continuity when
the battery is disconnected.
REMOVAL/INSTALLATION
Remove the maintenance lid (page 21-6).
Release the starter relay switch/shock rubber from the
battery box tabs [1].
Release the rubber cover [2].
Disconnect the starter relay switch 4P (Red) connector
[3].
Remove the bolts [4] and cables [5].
Remove the starter relay switch [6] from the shock
rubber [7].
Installation is in the reverse order of removal.
[1]
Y/RG/R
[2]
[1] [4]/[5] [7]
[3]
[6]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
