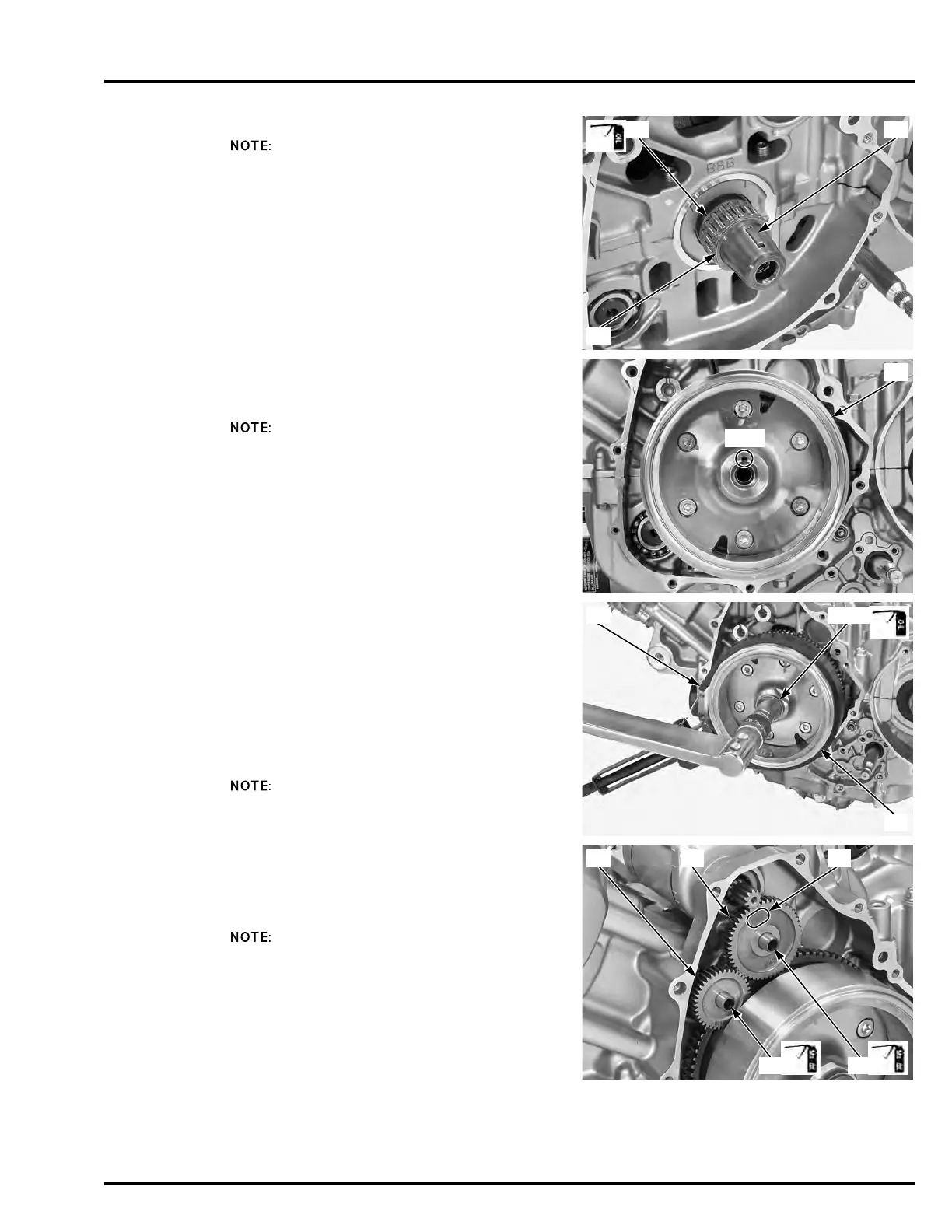

ALTERNATOR/STARTER CLUTCH
INSTALLATION
Install the woodruff key [1].
Be careful not to damage the key groove and
crankshaft.
Apply engine oil to the needle bearing rotating area.
Install the needle bearing [2] and washer [3].
Clean any oil from the crankshaft tapered area and
flywheel thoroughly.
Install the flywheel [1] to the crankshaft.
Align the woodruff key with flywheel keyway.
Apply engine oil to the flywheel mounting bolt threads
and seating surface.
Install the washer [1] and flywheel mounting bolt [2].
Hold the flywheel [3] using the special tool and tighten
the flywheel mounting bolt to the specified torque.
The flywheel mounting bolt has left hand threads.
Apply molybdenum oil solution to the starter reduction
and idle gear shaft outer surface.
Install the starter reduction gear [1] and shaft [2].
Install the starter idle gear [3] and shaft [4].
Install the starter reduction gear with its "OUT" mark [5]
facing out.
Install the alternator cover (page 13-5).
[3]
[1][2]
[1]
Align
TOOL:
Flywheel holder [4] 07725-0040001
TORQUE:157 N·m (16.0 kgf·m, 116 lbf·ft)
[4]
[3]
[1]/[2]
[1] [3]
[4][2]
[5]
