ANTI-LOCK BRAKE SYSTEM (ABS)

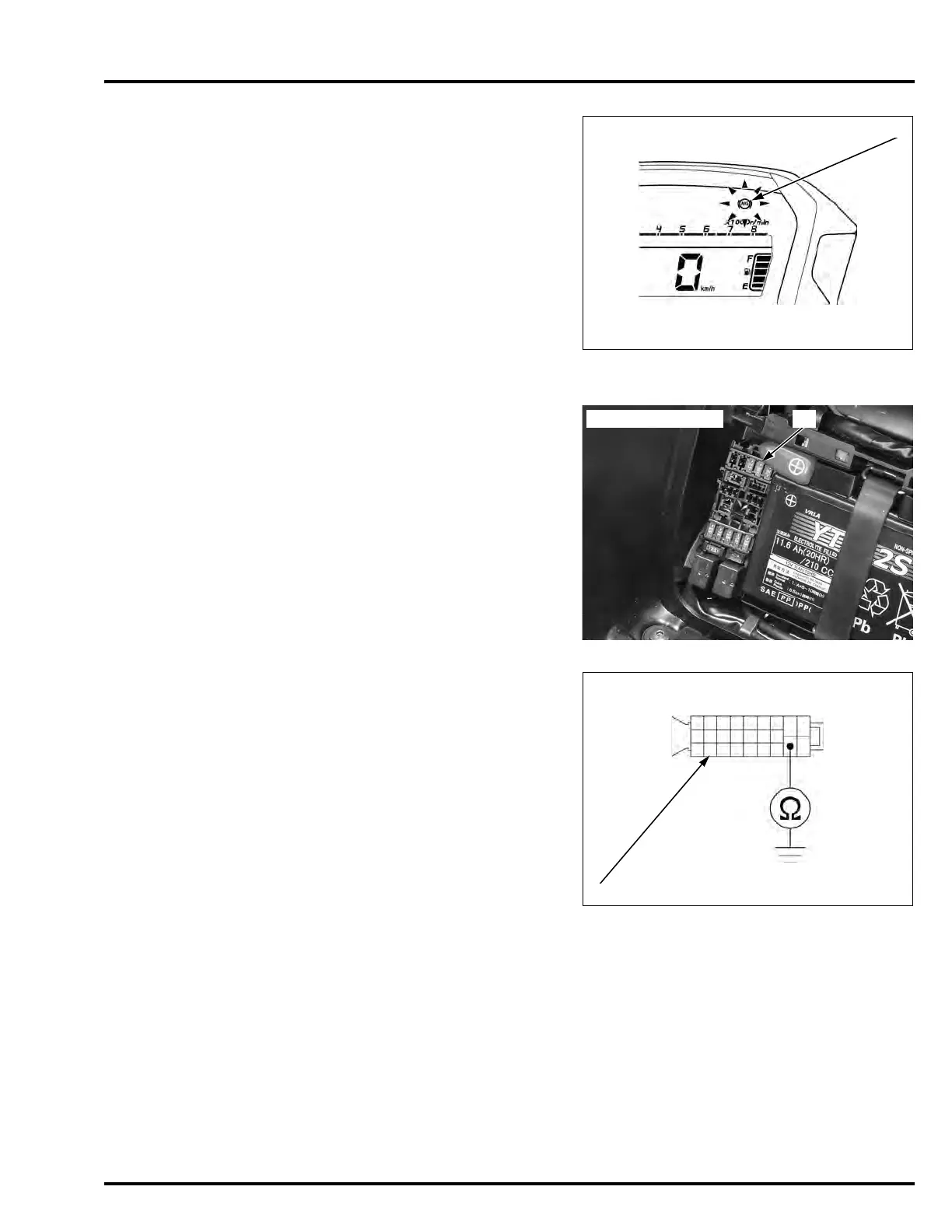

4. Failure Reproduction
Connect the ABS modulator 25P connector.
Erase the problem code (page 20-9).
Test ride the motorcycle above 30 km/h (18 mph).
Retrieve the problem code (page 20-8) and recheck
the ABS indicator [1].
Does the ABS indicator indicate the code "51, 52
or 53"?
YES – Faulty ABS modulator
NO – Pump motor is normal (intermittent failure).
PROBLEM CODE 54 (Fail-safe Relay)
1. Fuse Inspection
Check the ABS fuse 30 A (ABS SOL.) [1] in the fuse
box for blown.
Is the fuse blown?
YES – GO TO STEP 2.
NO – GO TO STEP 3.
2. Relay Power Input Line Short Circuit Inspection
Turn the ignition switch OFF.
Disconnect the ABS modulator 25P connector [1].
Check for continuity between the ABS modulator
25P connector of the wire harness side and ground.
Is there continuity?
YES – Short circuit in Black/white wire
NO – Intermittent failure. Replace the ABS fuse
30 A (ABS SOL.) with a new one, and
recheck.
[1]
[1]NC700XA/SA shown:
Connection: Black/white – Ground
TOOL:
Test probe 07ZAJ-RDJA110
Bl/W
[1]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
