Honda NC700 2012 User Manual

12-60
dummyheaddummyhead
DUAL CLUTCH TRANSMISSION (DCT) (NC700XD/SD)

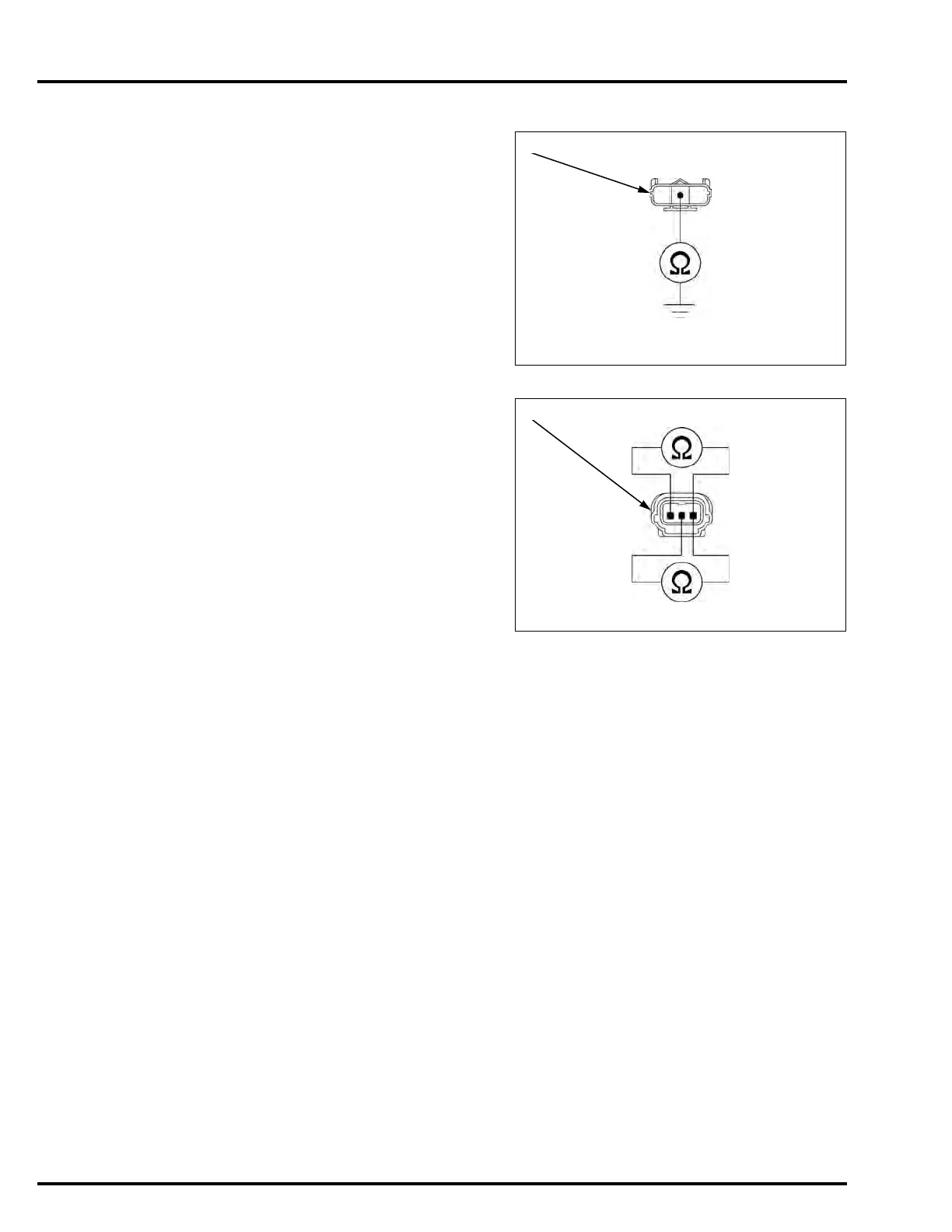

5. Shift Pedal Angle Sensor Output Line Short
Circuit Inspection
Check for continuity between the wire harness side
shift pedal angle sensor 3P (Black) connector [1]
and ground.
Is there continuity?
YES – Short circuit in Yellow/violet wire.
NO – GO TO STEP 6.
6. Shift Pedal Angle Sensor Resistance Inspection
Measure the resistance at the sensor side shift
pedal angle sensor 3P (Black) connector [1]
terminals.
Operate the DCT shift pedal to check that the
resistance changes in accordance with the pedal
operation.
Are the resistance inspections normal?
YES – Replace the PCM with a known good one,
and recheck.
NO – Faulty shift pedal angle sensor, replace the
DCT shift pedal as an assembly.
Connection: Yellow/violet – Ground
[1]
Y/V
Connection: Yellow/red – Blue/green
Standard: 4 – 6 k (20°C/68°F)
Connection: Yellow/blue – Blue/green
When moving the pedal up:
Resistance increases
When moving the pedal down:
Resistance decreases
[1]
Y/R Bu/G
Y/Bu Bu/G

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
