Honda NC700 2012 User Manual

2-22
dummyheaddummyhead
FRAME/BODY PANELS/EXHAUST SYSTEM
DISASSEMBLY/ASSEMBLY (NC700S/SA/SD)
Remove the following:
– Luggage box lid (page 2-18)
– Maintenance lid (page 21-6)

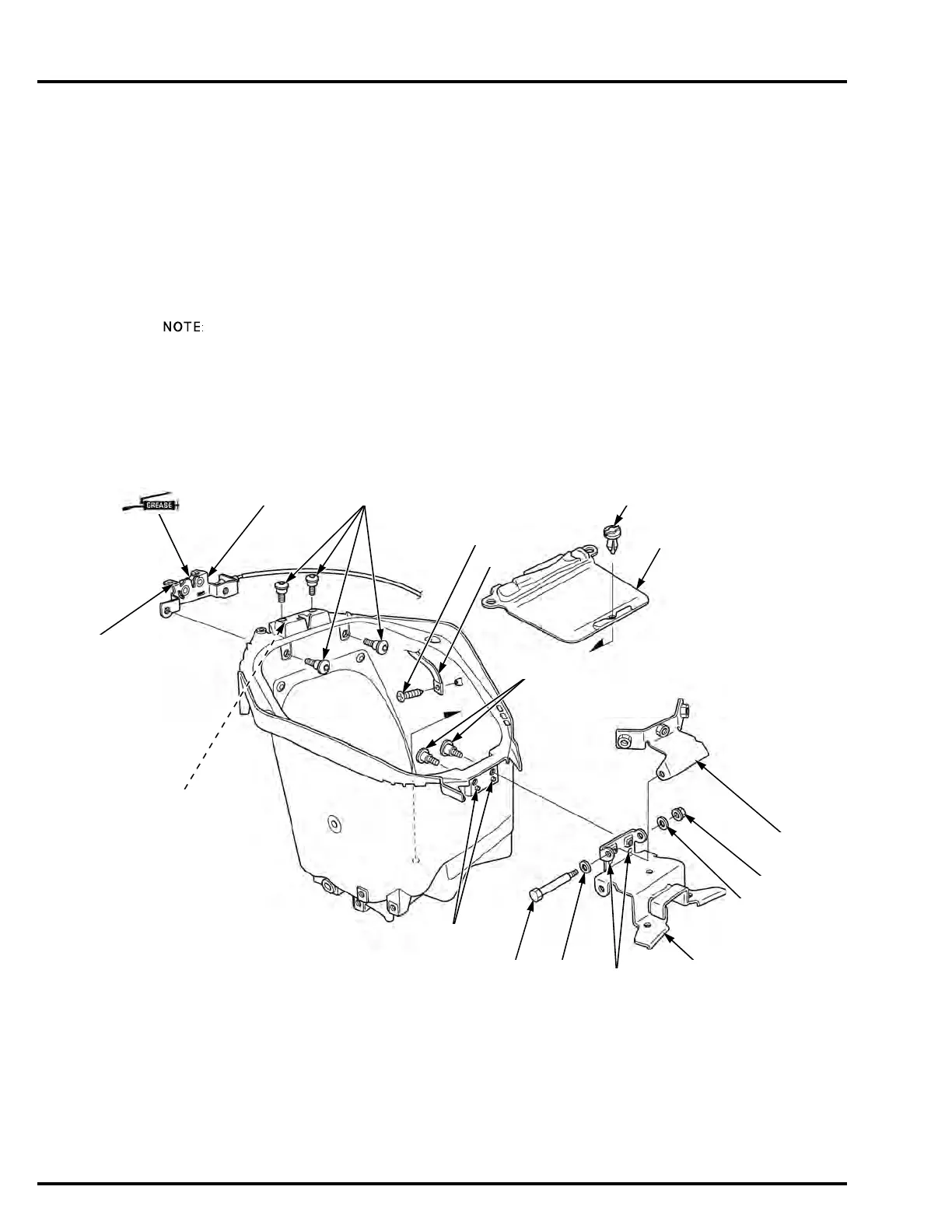

Remove the screw [1] and band [2].
Remove the trim clips [3] and owners manual lid [4].
Remove the socket bolts [5] and luggage box lid catch [6].
Remove the socket bolts and luggage box lid hinge assembly.
Remove the luggage box lid hinge nut [7], washers [8], hinge bolt [9] and hinge [10] from the hinge bracket [11].
Assembly is in the reverse order of disassembly.
• Align the luggage box lid catch hole [12] with the luggage box tab [13].
• Align the hinge bracket holes [14] with the luggage box tabs [15].
• Apply grease to the luggage box lid catch sliding area.
TORQUE:
Luggage box lid hinge nut:
12 N·m (1.2 kgf·m, 9 lbf·ft)
[1]
[2]
[3]
[4]
[6]
[5]
[7]
[8]
[8][9] [11]
[10]
[12]
[13]
[5]
[15]
[14]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
