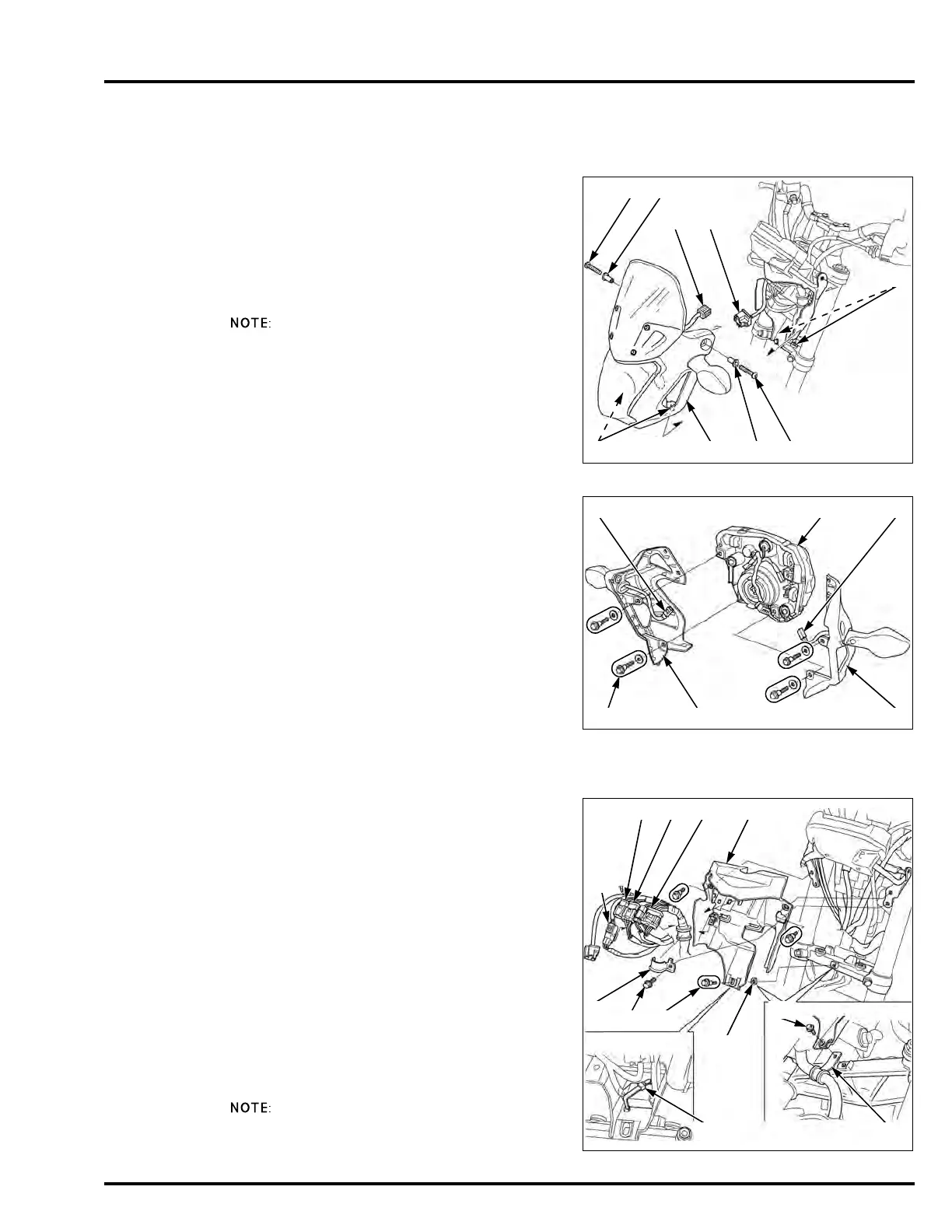

FRAME/BODY PANELS/EXHAUST SYSTEM
HEADLIGHT/HEADLIGHT STAY
(NC700S/SA/SD)
REMOVAL/INSTALLATION
Remove the socket bolts [1] and collars [2].
Release the headlight stay tabs [3] from the grommet
[4].
Disconnect the headlight 3P (Black) connector [5], front
sub harness 6P (Brown) connector [6] and remove the
headlight/headlight stay [7].
Installation is in the reverse order of removal.
Route the wire harness and hoses properly (page 1-
25).
DISASSEMBLY/ASSEMBLY
Remove the windscreen (page 2-23).
Disconnect the following:
– Front left turn signal light 3P (Orange) connector [1]
– Front right turn signal light 3P (Blue) connector [2]
Remove the bolts [3], washers [4] and headlight stays
[5] from the headlight unit [6].
Assembly is in the reverse order of disassembly.
HEADLIGHT COVER (NC700S/SA/SD)
REMOVAL/INSTALLATION
Remove the headlight/headlight stay (page 2-27).
Remove the following:
– Bolt [1]
– Main wire harness clamp [2]
– Bolts [3]
– Brake hose clamp (NC700S) [4]
– Washer (NC700SA/SD) [5]
– Wire band (NC700SD) [6]
Release the following:
– Front sub harness 6P (Brown) connector [7]
– Right handlebar switch 8P (Blue) connector [8]
– Ignition switch 2P (Brown) connector/Left handlebar
switch 10P (Gray) connector [9]
– Immobilizer receiver 4P (Black) connector [10]
Remove the headlight cover [11].
Installation is in the reverse order of removal.
Route the wire harness and hoses properly (page 1-
25).
[1] [2]
[7]
[6] [5]
[4]
[2] [1][3]
[2]
[1]
[11][7] [8] [9]
[3]
[5]
[3]
[6] [4]
NC700SD:
NC700S:
[10]
