DUAL CLUTCH TRANSMISSION (DCT) (NC700XD/SD)

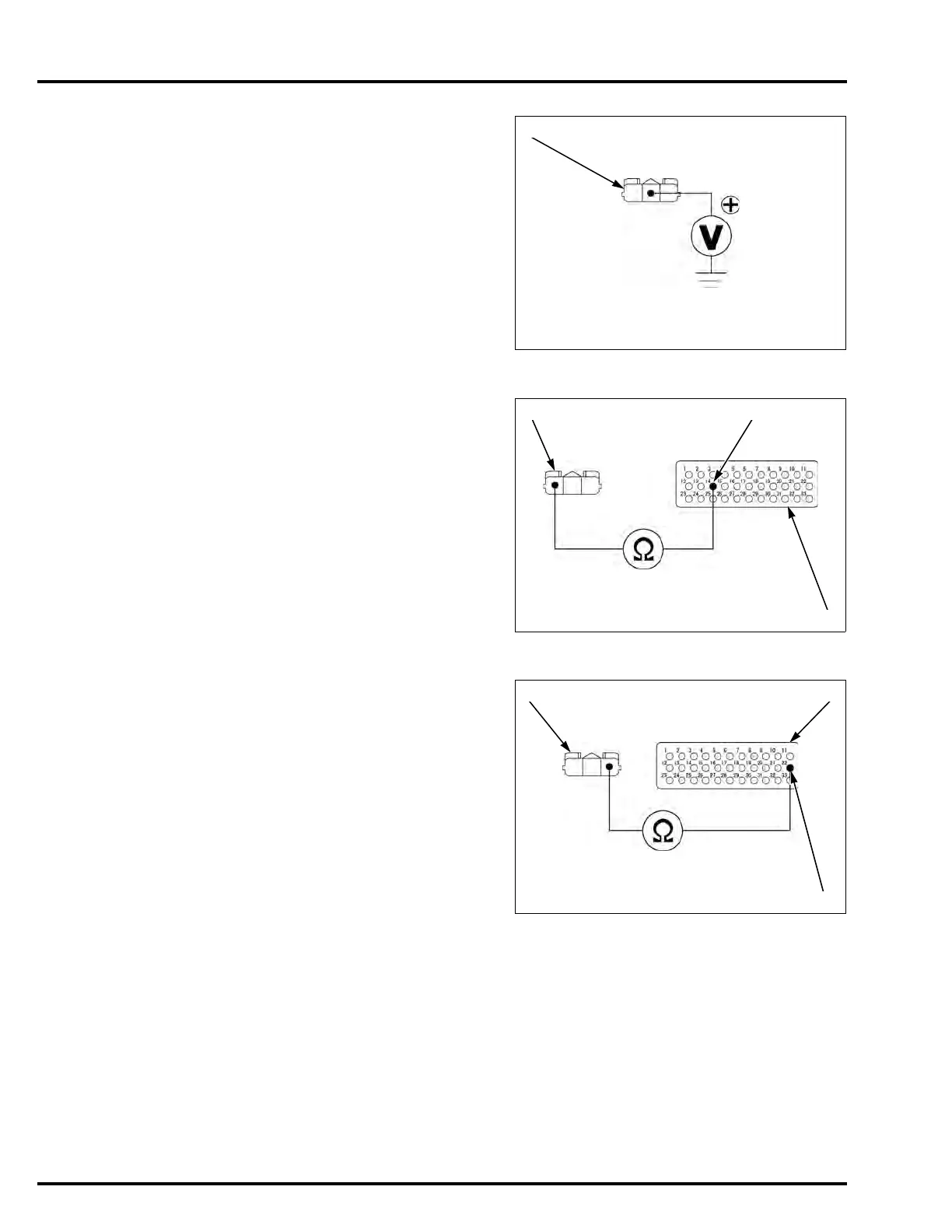

2. Inner Mainshaft Sensor Output Line Inspection
Measure the voltage between the wire harness side
inner mainshaft sensor 3P (Black) connector [1]
terminal and ground.
Is the voltage within 4.75 – 5.25 V?
YES – GO TO STEP 7.
NO – GO TO STEP 5.
3. Inner Mainshaft Sensor Input Line Open Circuit
Inspection
Connect the ECM test harness to the PCM
connectors (page 4-14).
Check for continuity between the wire harness side
inner mainshaft sensor 3P (Black) connector [1] and
test harness [2] terminals.
Is there continuity?
YES – GO TO STEP 4.
NO – Open circuit in the Brown/yellow wire
4. Inner Mainshaft Sensor Ground Line Open
Circuit Inspection
Check for continuity between the wire harness side
inner mainshaft sensor 3P (Black) connector [1] and
test harness [2] terminals.
Is there continuity?
YES – Replace the PCM with a known good one,
and recheck.
NO – Open circuit in the Green/yellow wire
Connection: Gray/yellow (+) – Ground (–)
[1]
Gr/Y
Connection: Brown/yellow – A14
A14[1]
Br/Y
[2]
Connection: Green/yellow – B22
G/Y
B22
[1] [2]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
