Extinguishing Control Computer 8010 – 19-Inch
FB 798955.GB0 / 09.07 13
2.4 Connect / disconnect zones
The detector zones (1 – 8) and the technical zones (9 – 13) can be switched on or off via the function keys and
the ten-button keypad of the control panel.
In operation
Unlocked
For operation, it is necessary to enable the keypad via the key-switch.
Example: Switching off detector zone No. 3
12 456 8
9 10111213
7
Zone
3
Off
3
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
Detector zone
Fire/Switch off/Trouble
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled

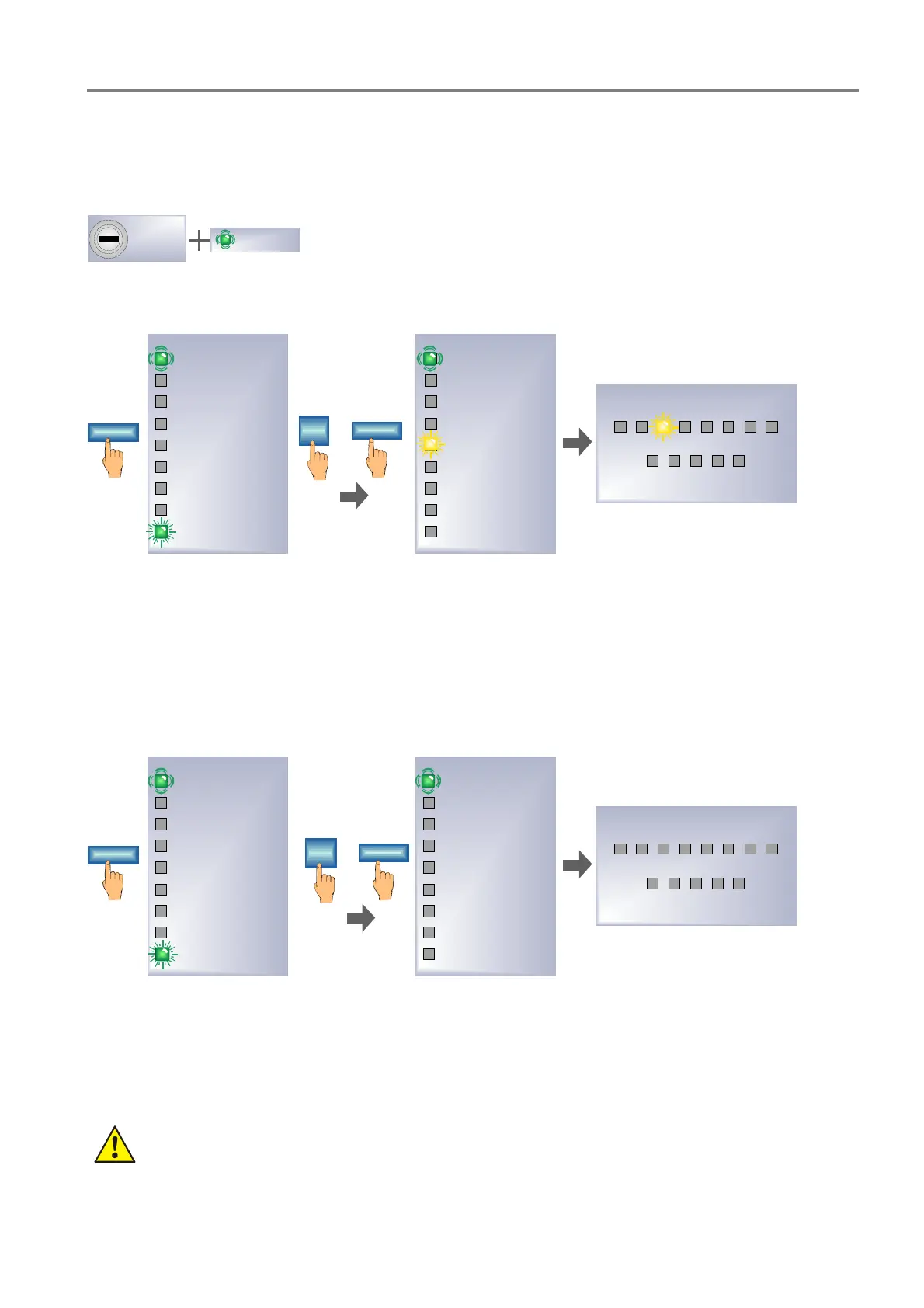

Fig. 7: Indication and Operation – Switching off detector zone No. 3
The deactivated zone is shown in the zone display with the continuously illuminated yellow LED.
The zone display can be switched between the display of the 13 zones and the 13 outputs with the function key
>Switchover<. When the keypad is locked, the status of the zones is always automatically shown, even if
outputs have been deactivated.
The following key combination must be pressed in order to switch on and reset the detector zones:
12 456 8
9 10111213
7
Zone
3
On
3
Detector zone
Fire/Switch off/Trouble
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
In operation
Switching off
Test operation
Extra releasing 1
Outputs
Alarm
Emergency release
Extinguishing system
activated
Extinguishing system
enabled
Fig. 8: Indication and Operation – Switching on the detector zone No. 3
The continuously illuminated yellow LED in the zone display is deactivated. The detector zone is in the normal
operation mode.
Deactivated zones will not notify an alarm message in case of a fire!
