7.3 Zone board - series 3
The zone board - series 3 is designed for connection of 13 detector zones. Terminals 1 to 8 are suitable to
connect automatic detectors and/or series 9200 / IQ8Quad (without alarm devices), technical alarm modules, as
well as esserbus
®
transponders in order to control further external peripherals. Five technical zones 9 to 13 are
available for non-automatic detectors (manual call points, push-button controls) and inputs for connecting
external dry contacts. The detector zones are configured for connection of automatic fire detectors, and/or
technical alarm modules, or esserbus
®
transponders via the programming software LKDE from Version V02.00.
N
PE
L1
F1
T4A
X1
X2
X3
F2
T1A
TRAFO PRIMARY
Zone board
Trafo secund.
X16
J9
X4
X5
Internal connection
to zone terminals
Connection prozessor card
Groung fault
identification
Power voltage
To power supply- and relay card

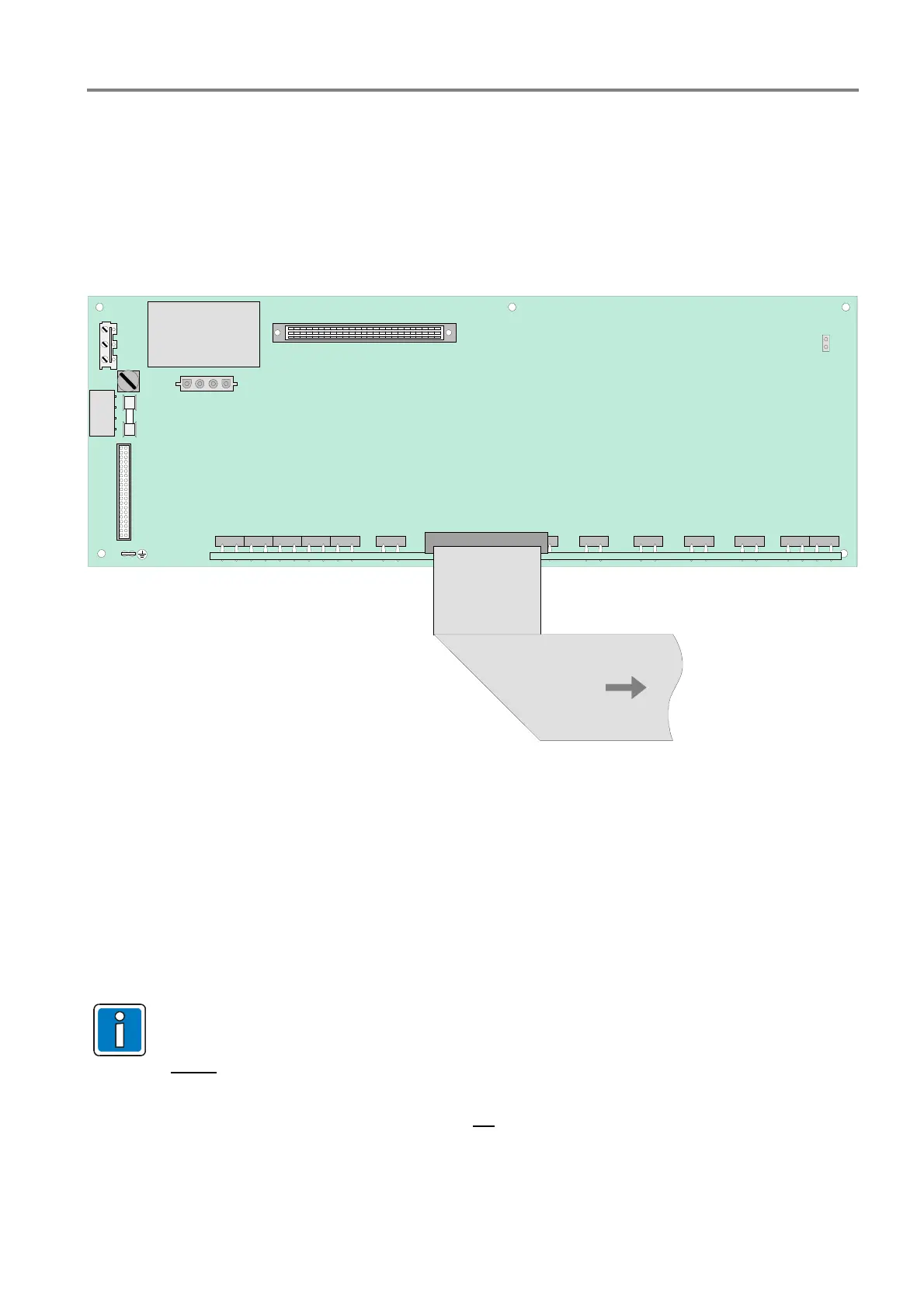

Fig. 29: Zone board series 3 (Part No. 771789) / position of the subassemblies
Terminals
The zone board is fully internal connected with the terminals of the mains supply voltage and the D-SUB board
of the external terminal card connection.
Unused alarm zones should be programmed as >unused< in the customer data or fitted with a
terminating resistor 4,7 K Ohm.
Do not
connect fire detectors or technical alarm modules series 9000 / 9100.
Mixed operation of automatic fire detectors, and/or technical alarm modules or esserbus
®
transponders in a common detector zone is not
permitted.
