Extinguishing Control Computer 8010 – 19-Inch
FB 798955.GB0 / 09.07 43
7.4 Terminal assignment of the zones
The external terminal card for he zone inputs of the Extinguishing Control Computer must be mounted on the
C-rail of the 19-inch rack.
The external terminal cards of the manufactures type „Phoenix / Weco“ or „Weidmüller“ should be used fort his
purpose. The following section describe the different terminal assignment for both types of the terminal card.
2 m
27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526
1 2 3 4 5 6 7 8 9 10111213 141516171819202122232425G
27 28 29 30 31 32 33 34 35 36 37 3826 39 40 41 42 43 44 45 46 47 48 49 50 P
or

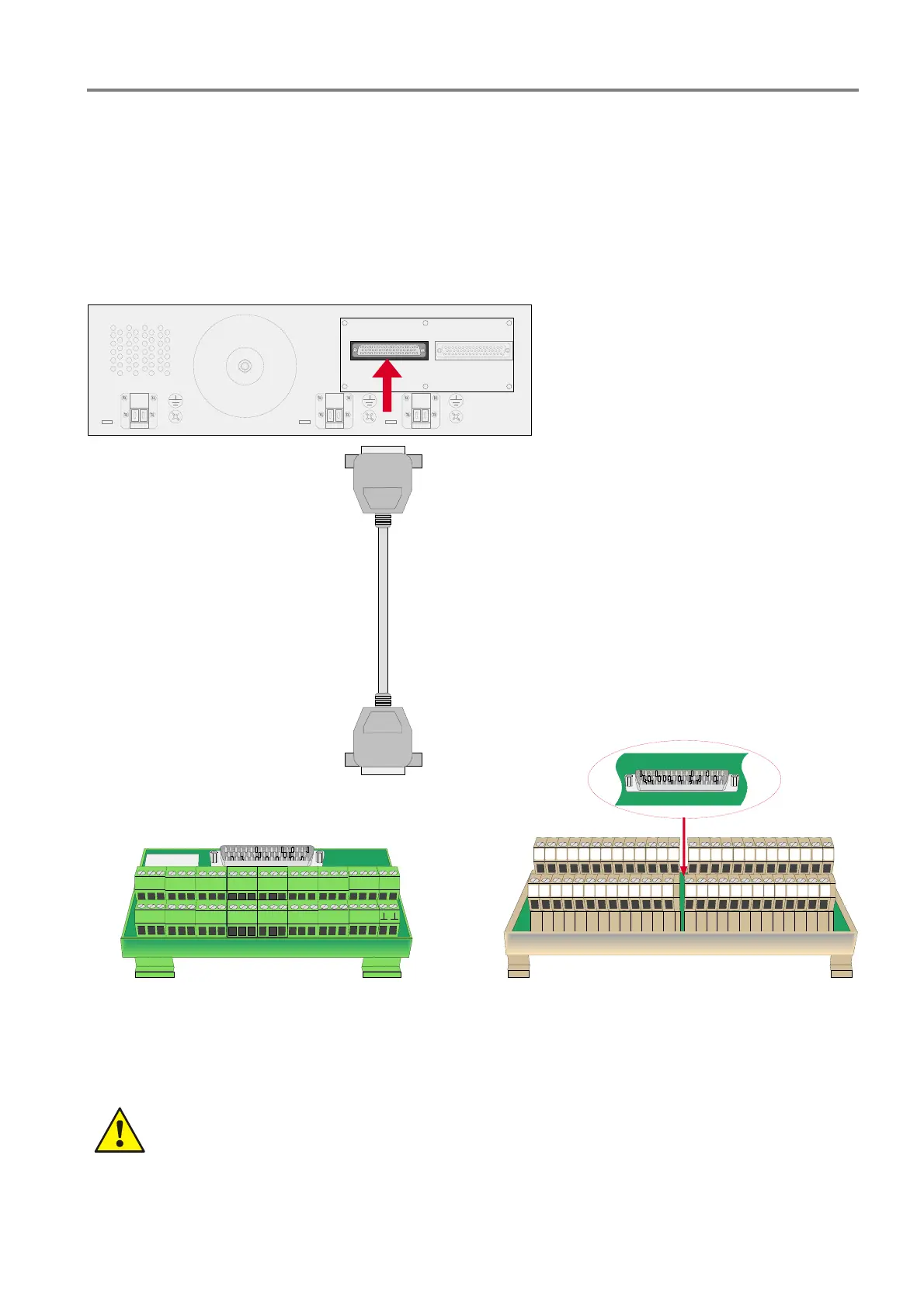

Fig. 30: External C-rail terminal for zone inputs
(manufacturer Phoenix, type FLKM-
D50 SUB/S/MKKDS)
Fig. 31: External C-rail terminal for zone inputs
(manufacturer Weidmüller, type RSSD 50 S
UNC LPK2)
Ensure that only PIN compatible terminal cards are connected! Other types as the recommended
terminal cards in this manual must be applied only with a confirmation of the technical sales
department or customer service.
