7.4.1 Zone-terminal card (type Phoenix / Weco)
27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
1234567891011121314151617181920212223242526

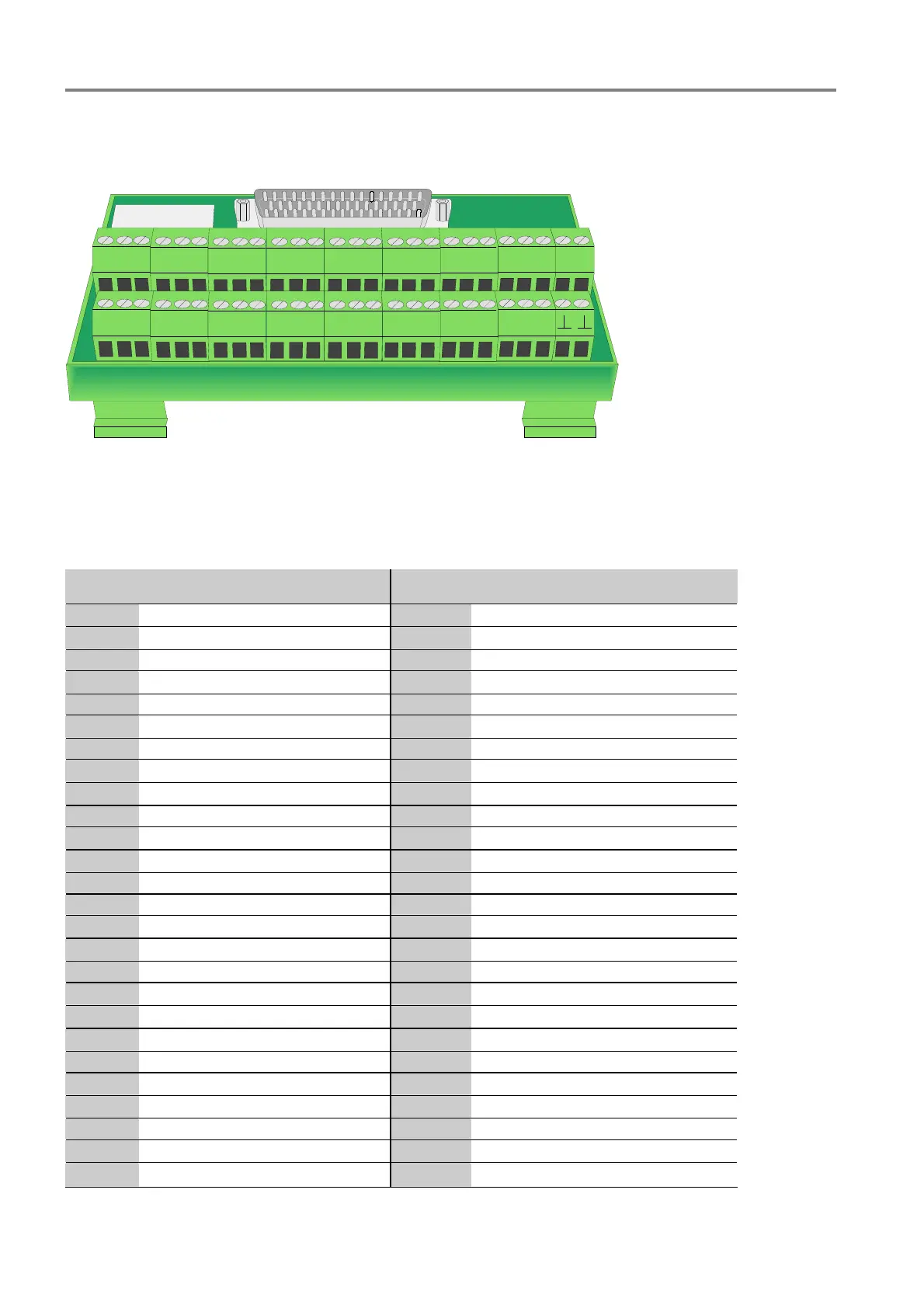

Fig. 32: External C-rail terminal card for zone inputs (manufacturer Phoenix / Weco)
No.
Terminal
No.
Terminal
1
Detector zone DZ1-
27
Shielding
2
Detector zone DZ1+
28
Shielding
3
Detector zone DZ2-
29
DZ9- (manual alarm)
4
Detector zone DZ2+
30
DZ9+ (manual alarm)
5
Detector zone DZ3-
31
DZ10- (emergency stop)
6
Detector zone DZ3+
32
DZ10+ (emergency stop)
7
Detector zone DZ4-
33
Shielding
8
Detector zone DZ4+
34
Shielding
9
Detector zone DZ5-
35
DZ11- (extra release)
10
Detector zone DZ5+
36
DZ11+ (extra release)
11
Detector zone DZ6-
37
DZ12- (blocking)
12
Detector zone DZ6+
38
DZ12+ (blocking)
13
Shielding
39
DZ13- (failure extinguishing system)
14
Shielding
40
DZ13+ (failure extinguishing system)
15
Detector zone DZ7-
41
DZ14- (buzzer off)
16
Detector zone DZ7+
42
DZ14+ (buzzer off)
17
Detector zone DZ8-
43
DZ15- (reset)
18
Detector zone DZ8+
44
DZ15+ (reset)
19
Shielding
45
Shielding
20
Shielding
46
Shielding
21
esserbus UL- in
47
Battery 1- (of an external battery)
22
esserbus UL+ in
48
Battery 2- (of an external battery)
23
esserbus UL- out
49
Battery 1+ (of an external battery)
24
esserbus UL+ out
50
Battery 2+ (of an external battery)
25
Shielding
┴
Shielding
26
Shielding
┴
Shielding
