Extinguishing Control Computer 8010 – 19-Inch
6 FB 798955.GB0 / 09.07
2.1 LED indicator for zones and outputs
The status of the corresponding zone or of the output is shown with the 13 LED. The status of the 13 zones is
shown in normal operation.
Switchover
With the key >Switchover<, it is possible to switch between indicating the zones or outputs
(Toggle operation).
12345678
9 10111213
Detector zone
Fire/Switch off/Trouble

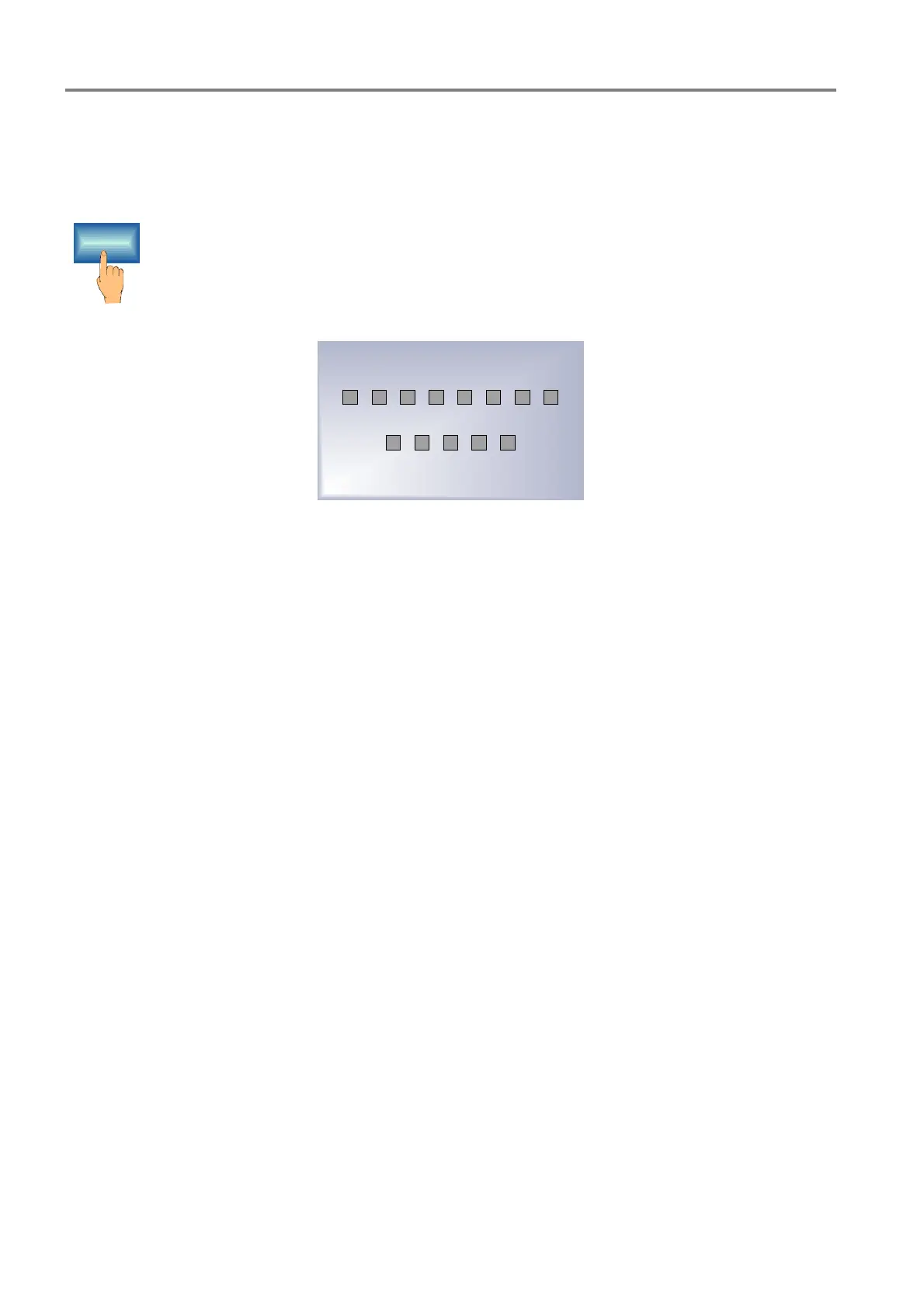

Fig. 2: Zone displays
2.1.1 Status display of the zones
Detector zone no. 1 to no. 9 (yellow/red LED)
Off Normal operation,
Detector zone ready to signal
Lights up red Fire alarm of the detector zone no. 1 to 9
Flashes red First alarm indicator, the first alarm was triggered by this zone
Flashes yellow/red Test mode
Flashes yellow Trouble,
only restricted alarm readiness of the detector zone
On - yellow Switch-off,
the detector zone is switched off via the control panel
Twinkle yellow Input monitor,
the zone number was entered via the control panel keypad
Technical zone no.10 to no.13 (yellow LED)
Off Normal operation, technical zone is alarm-ready
Lights up yellow 1) Triggers the technical zone 10 to 13
2)
Switch-off. The technical zone was switched off. The yellow LED >Switch off<
also
lights up.
Flashes yellow Trouble
Twinkle yellow Input check- the zone number was entered via the control panel keypad.
