Honeywell Esser 8010 User Manual

Extinguishing Control Computer 8010 – 19-Inch
4 FB 798955.GB0 / 09.07
1 General
The Extinguishing Control Computer 8010 – 19-inch a fire alarm control panel with an integrated controller for
use in extinguishing systems and provides the connection of automatic fire detectors and Manual call points.
With a total of eight automatic detector zones and 30 connectable automatic fire detectors for each zone, it is
possible to monitor a single extinguishing area as defined by the VdS Guideline 2496.
In addition, five permanently assigned inputs are available for connecting technical zones of units, for example
the manual detector zone or the Emergency Stop zone. The required control functions can be realized with the
total of 13 programmable relay outputs.
A maximum of 100 additional outputs could be realised by using the optional esserbus
®
transponders.
The Extinguishing Control Computer 8010 can be directly connected to the analog loop of the fire alarm system
8000 / IQ8Control via the esserbus
®
communication transponder (Part No 808615). Up to eight Extinguishing
Control Computers can be operated on one loop with other loop devices, e.g. fire detectors or esserbus
®
transponders. This enables up to eight individual extinguishing areas to be monitored via one analog loop.
The Extinguishing Control Computer 8010 - 19-Inch is programmed with the programming software LKDE from
version V02.00 or higher.
Any operation on the installed fire alarm system must only be carried out by authorised personal in
accordance with relevant safety procedures and in coordination with the emergency services.
VdS compliant fire alarm systems must be designed in accordance with VdS guidelines.
Additional and updated Informations
The described features, specifications and product related informations in this manual correspond to
the date of issue (refer to date on the front page) and may differ due to modifications and/or
amended Standards and Regulations of the System design, Installation and Commissioning.
Updated documentations and informations are available for comparison on the
www.esser-systems.de homepage.
esserbus
®
and essernet
®
are registered trademarks in Germany.

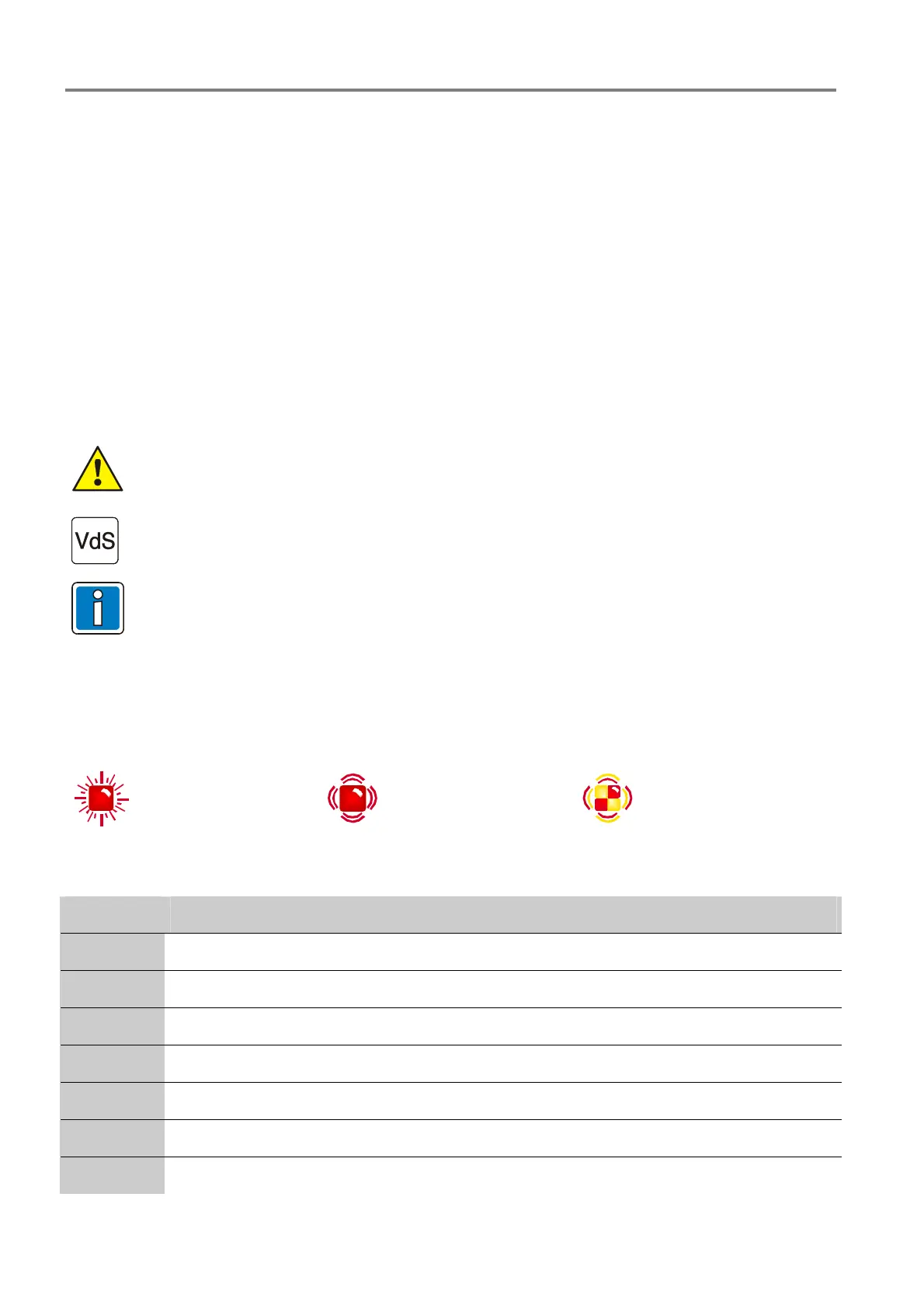

LED Indicator description
LED lights up
continuously
LED flashes
LED flashes yellow / red
1.1 Accessories / Options
Part. No. Type
788014.GB
Extinguishing Control Computer 8010 series 3 – 19-inch design with operating panel (3HE)
788015
Extinguishing Control Computer 8010 series 3 – 19-inch design without operating panel (3HE)
788024.GB
Extinguishing Control Computer 8010 series 2 – 19-inch design with operating panel (3HE)
788025
Extinguishing Control Computer 8010 series 2 – 19-inch design without operating panel (3HE)
788653
Terminal card for C-mounting rail incl. 50-pole D-SUB cable, length 1m
788654
Terminal card for C-mounting rail incl. 50-pole D-SUB cable, length 2m
808615
esserbus
®
communication transponder
