10 Sequence diagram
10.1 Time sequence on alarm (for Extinguishing System)
1st Alarm
2nd Alarm
HA/NF
NSG
RZ
FZ
RFZ
NFZ
VA
RA
UV*
BV
VV
TV
PV
RV
SV
NSV
DE
1
22a3 44a 5 6 7 88a9 10
1
2 2a 3 44a 5 6 7 8 8a9 10
Time
Time

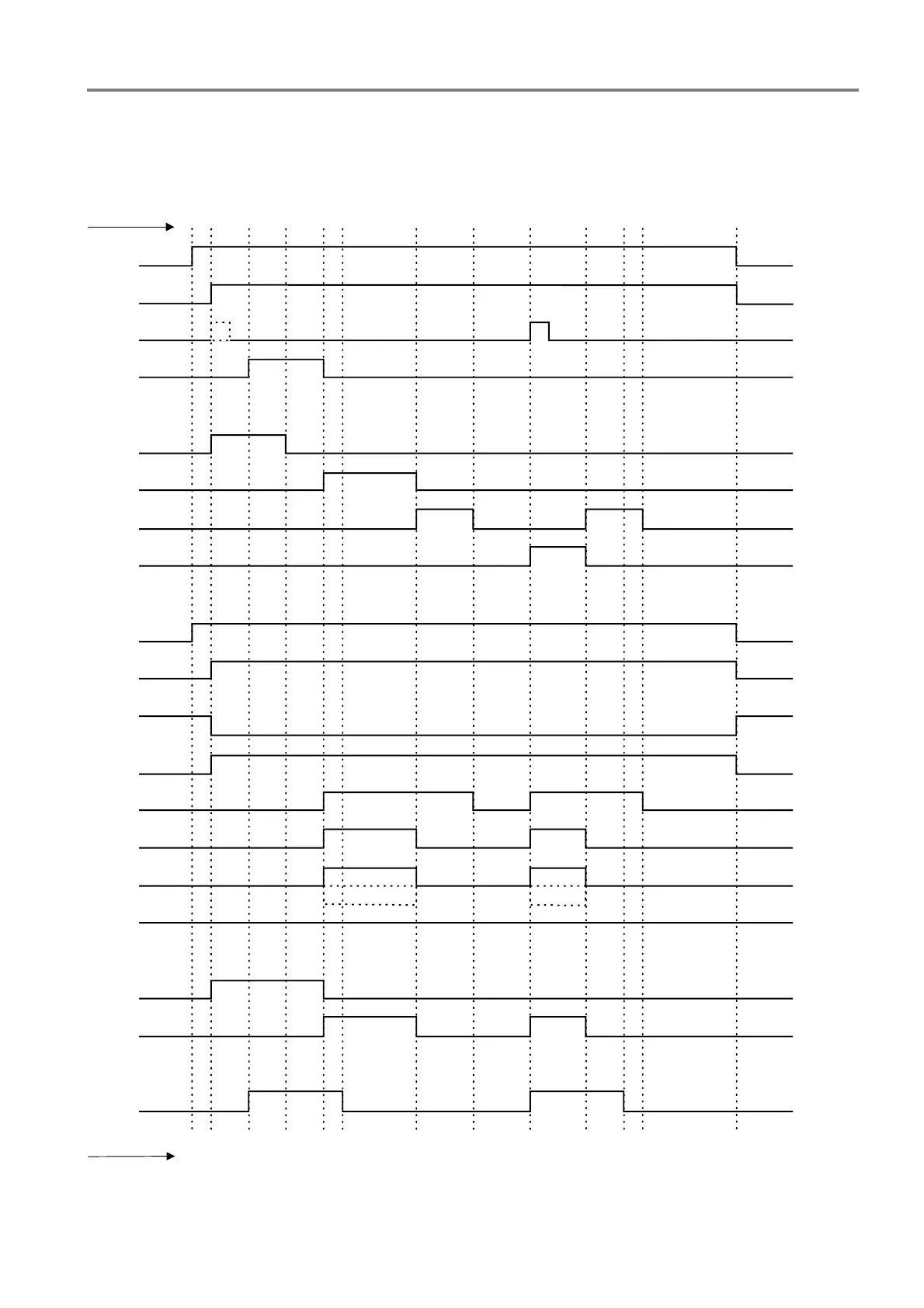

Fig. 48: Sequence diagram (Extinguishing System)
