Galaxy Dimension Installer Manual
2-1
SECTION 2: SYSTEM ARCHTECTURE

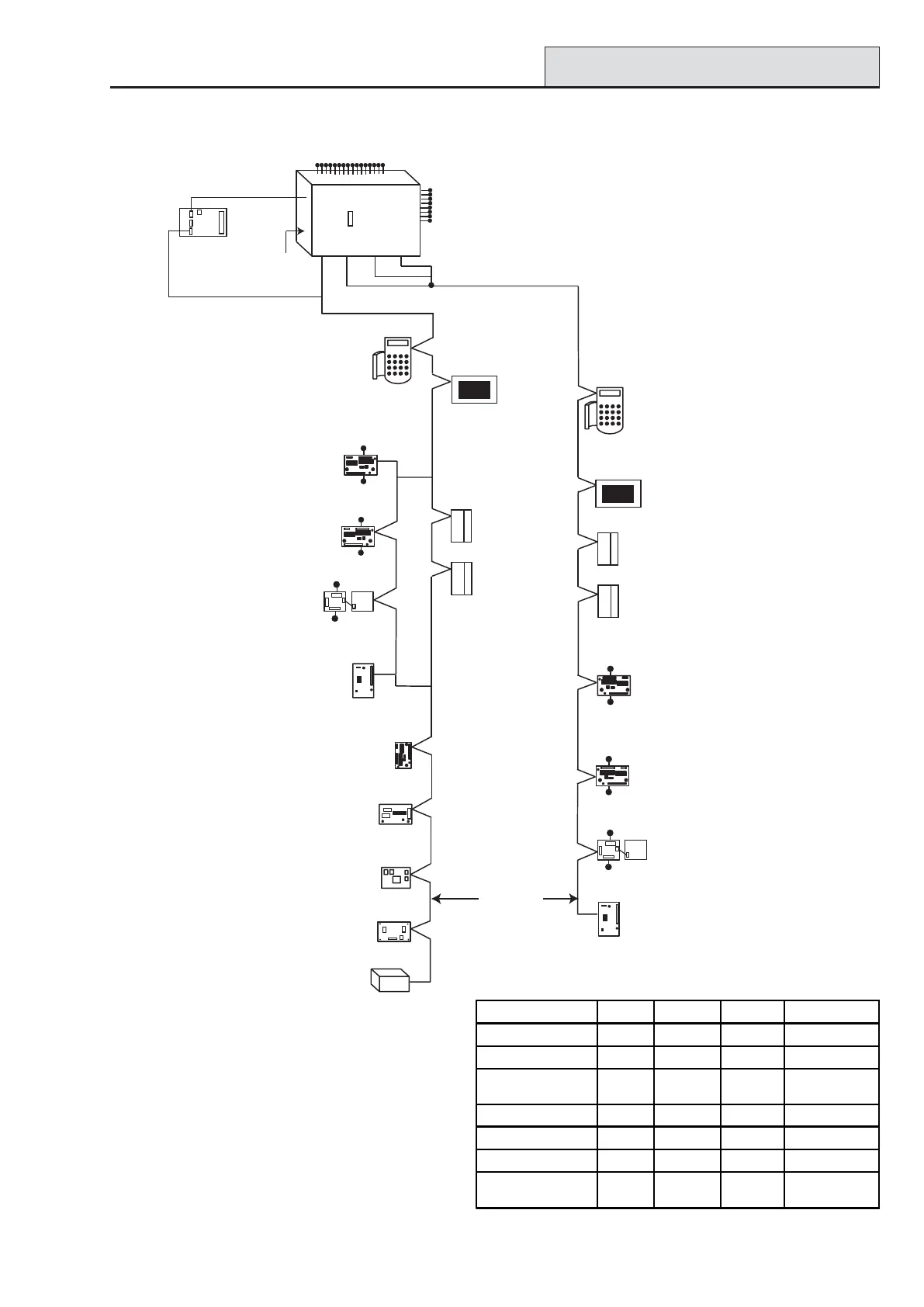

Figure 2-1. Galaxy Dimension System Configuration
Configuration
GD-48 GD-96 GD-264 GD-520
Lines 12 2 4
Keypads 8 8 per line 8 per line 8 per line
Keyproxes 3 3 (line 1)
4 (line 2)
3 (line 1)
4 (line 2)
3 (line 1)
7 (lines 2, 3, 4)
Touch Center 1 1 per line 1 per line 1 per line
MAX's 4 8 per line 8 per line 8 per line
DCM's 4 8 per line 8 per line 8 per line
RIO's/PSU's 4 4 (line 1)
6 (line 2)
15 (line 1)
16 (line 2)
15 (line 1)
16 (lines 2, 3, 4)
16 zones on board
Galaxy
Line
Line
12
NOTE:
The Telecom, Printer Interface,
RS232, Ethernet and ISDN
modules can only be
connected to line 1.
If a Telecom module is attached,
keypad address E cannot be
connected to line 1(address E is
shown as 18 on the system).
If an RS232 module is attached,
keypad address D cannot be
connected to line 1 (address D is
shown as 17 on the system).
If an Ethernet module is attached,
keypad address B cannot be
connected to line 1 (address B is
shown as 15 on the system).
If an ISDN module is attached,
keypad address C cannot be
connected to line 1 (address C is
shown as 16 on the system).
Cable run 1 km (max)
Keypads
CP027/
Keyprox
CP028
*
8 outputs
on board
plus 6 outputs
on trigger header
on board
telecom
area
NOTE:
RIOs, RF RIO's and
PSU's can be mixed on
the lines.
Certain keypad and
max addresses can
be replaced by a
combined keyprox unit.
*
NOTE:
Valid addresses for the
keyprox are:
Line 1 (0, 1 & 2).
Line 2 (0, 1, 2, & 3 ).
This sets the address for both
the keypad and card reader
parts of the keyprox.
*
K eypads
CP027/
Keyprox
CP028
*
PSTN (comm 1)
Audio Interface
Module (1)
RS485 line
RS232
Serial Port
(comm 6)
8 zones
4 outputs
RIO
C072
8 zones
4 outputs
OR
OR
OR
Smart PSU
P015
8 zones
4 outputs
RF RIO Module
C076
Twisted Pair
Screened Cable
Printer Interface
A134/A161
ISDN Module
E077 (comm 3)
RS232 Module
E054 (comm 2)
Telecom Module
E062 (comm 5)
Ethernet Module
E080 (comm 4)
Touch
Center
CP040
DCM
C080/81
*
Max
MX03
OR
Touch
Center
CP040
Line Line
3
4
Lines 2, 3 and 4 have
the same configuration
Power Unit P025
or
Power RIO P026
Trigger
Header
8 zones
4 outputs
RIO
C072
8 zones
4 outputs
Smart PSU
P015
OR
OR
RF RIO Module
C076
OR
8 zones
4 outputs
Power Unit P025
or
Power RIO P026
DCM
C080/81
*
Max
MX03
OR

Honeywell Galaxy Dimension series Specifications

General

Model	Galaxy Dimension series
Users	Up to 250
Partitions	Up to 8
Operating Temperature	-10°C to +55°C
Compatibility	Honeywell Galaxy accessories and peripherals
