Galaxy Dimension Installer Manual
4-1
Mk7 Keypad/KeyProx
SECTION 4: KEYPADS
Two types of keypad can be fitted to the Galaxy Dimension: The Mk7 Keypad and the Touch Center keypad.
Both types of keypad are described in this section.
The Galaxy Mk7 Keypad/KeyProx
NOTE: References in the text to the Mk7 keypad also includes the KeyProx in this section.
General
The Galaxy Mk7 keypad/keyProx has the following features:
• a 2 x 16 alphanumeric character backlit display
• 16 backlit push buttons as shown in figure 4-1
• internal horn
• power indicator LED
• Lid tamper
• Off-wall tamper
• Address switch
• RS485 serial connector

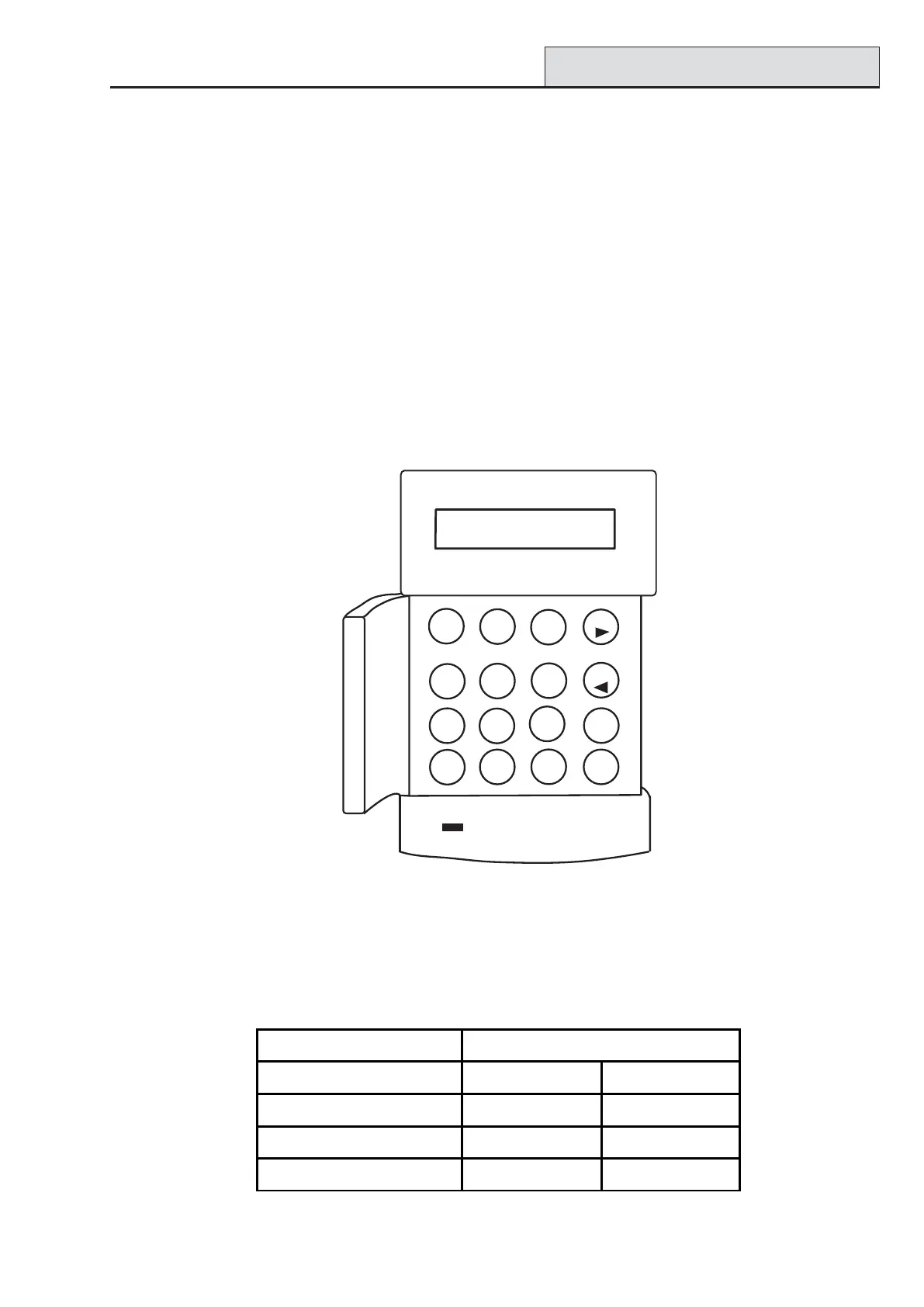

Figure 4-1. Galaxy Mk7 Keypad/KeyProx
Power Consumption
The Galaxy Mk 7 keypad/keyProx requires a 12 Vd.c. supply – from the control panel or a remote power
supply. The current consumption of the keypad/keyProx is:
Table 4-1. Keypad/KeyProx Current draw
Current Draw
Mode Mk7 Keypad Mk7 Keyprox
Nominal (backlight OFF) 35 mA 75 mA
Backlight ON 70 mA 90 mA
Maximum Alarm Current 90 mA 130 mA
GALAXY 264 V6.00
08:58 TUE 22 NOV
1
2
3
A
4
5
6
B
7
8
9
ent
*
0
#
esc
