The Galaxy Dimension TouchCenter
General
The Galaxy Dimension TouchCenter connects to the RS485 data bus of the Galaxy Dimension panels. The
TouchCenter combines a clear graphical display with simple touch-screen control, providing an easy user
interface.
TouchCenter

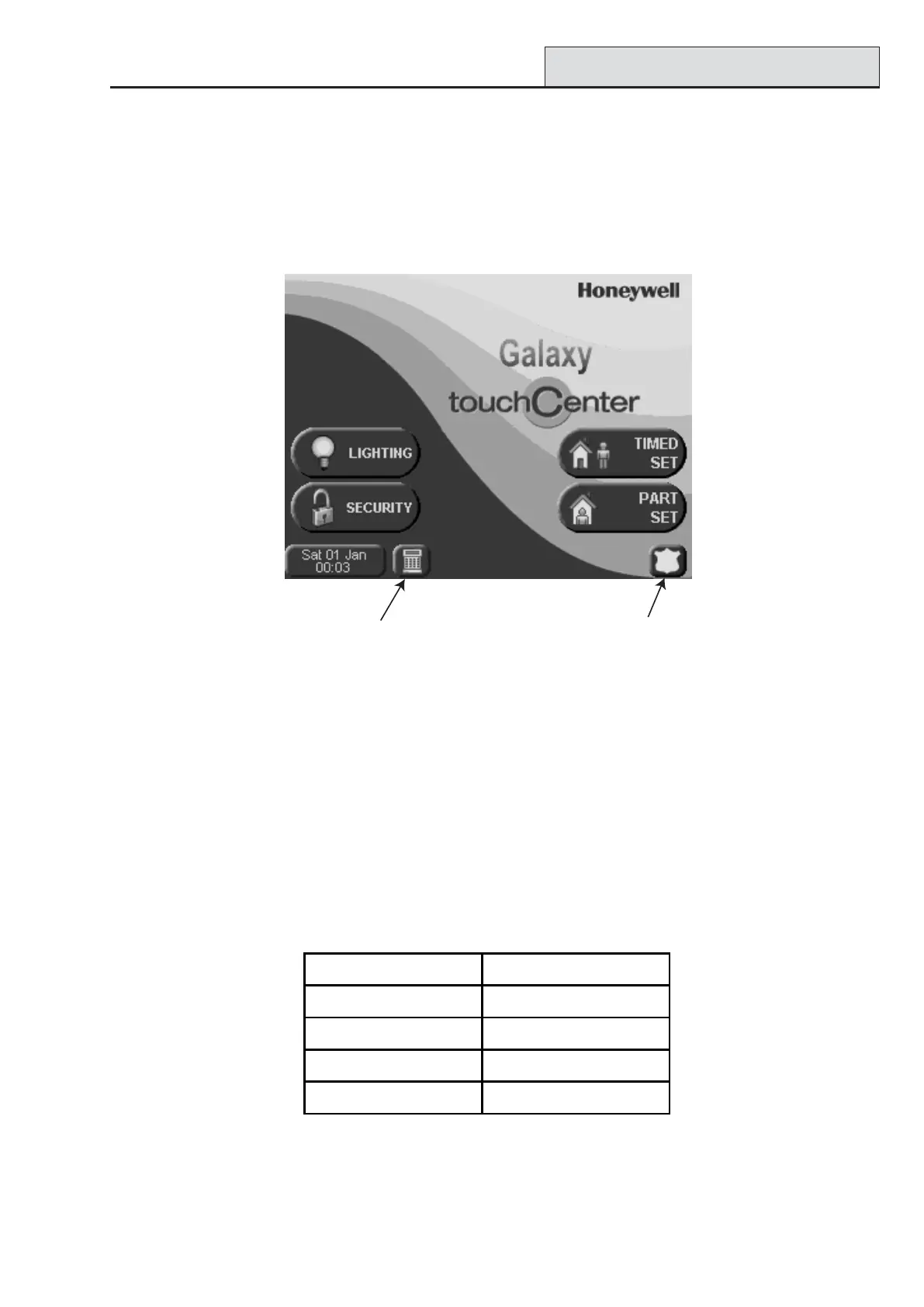

Figure 4.3 Homepage Screen
TouchCenter Installation Procedure
1 Remove the mounting plate from the TouchCenter by pushing it towards the bottom of the keypad.
2 Locate the mounting plate over the mounting surface such that the opening of the mounting plate is
aligned with the cable.
3 Pass the cable through the opening of the mounting plate.
4 Secure the mounting plate to the mounting surface using the four screws supplied.
5 Connect the wires to the TouchCenter terminals as per the following table:
Table 4-5. TouchCenter Terminal Connections
6. Mount the TouchCenter to the mounting plate by locating the four elongated holes over the locations on
the mounting plate and pushing down until it snaps into position.
Galaxy Terminals TouchCenter Terminals
AG
BY
GND -
+12V +
Mk7 Keypad
Interface button
EMERGENCY
button

Honeywell Galaxy Dimension series Specifications

General

Model	Galaxy Dimension series
Users	Up to 250
Partitions	Up to 8
Operating Temperature	-10°C to +55°C
Compatibility	Honeywell Galaxy accessories and peripherals
