The line numbers are represented by the top row in MAX and blocks 2
nd
and 3
rd
from the top in the
MicroMAX and the address numbers are represented by the bottom row of blocks in the MAX and the four
bottom blocks in the MicroMAX. The top LED on the MicroMAX is always off in this mode.

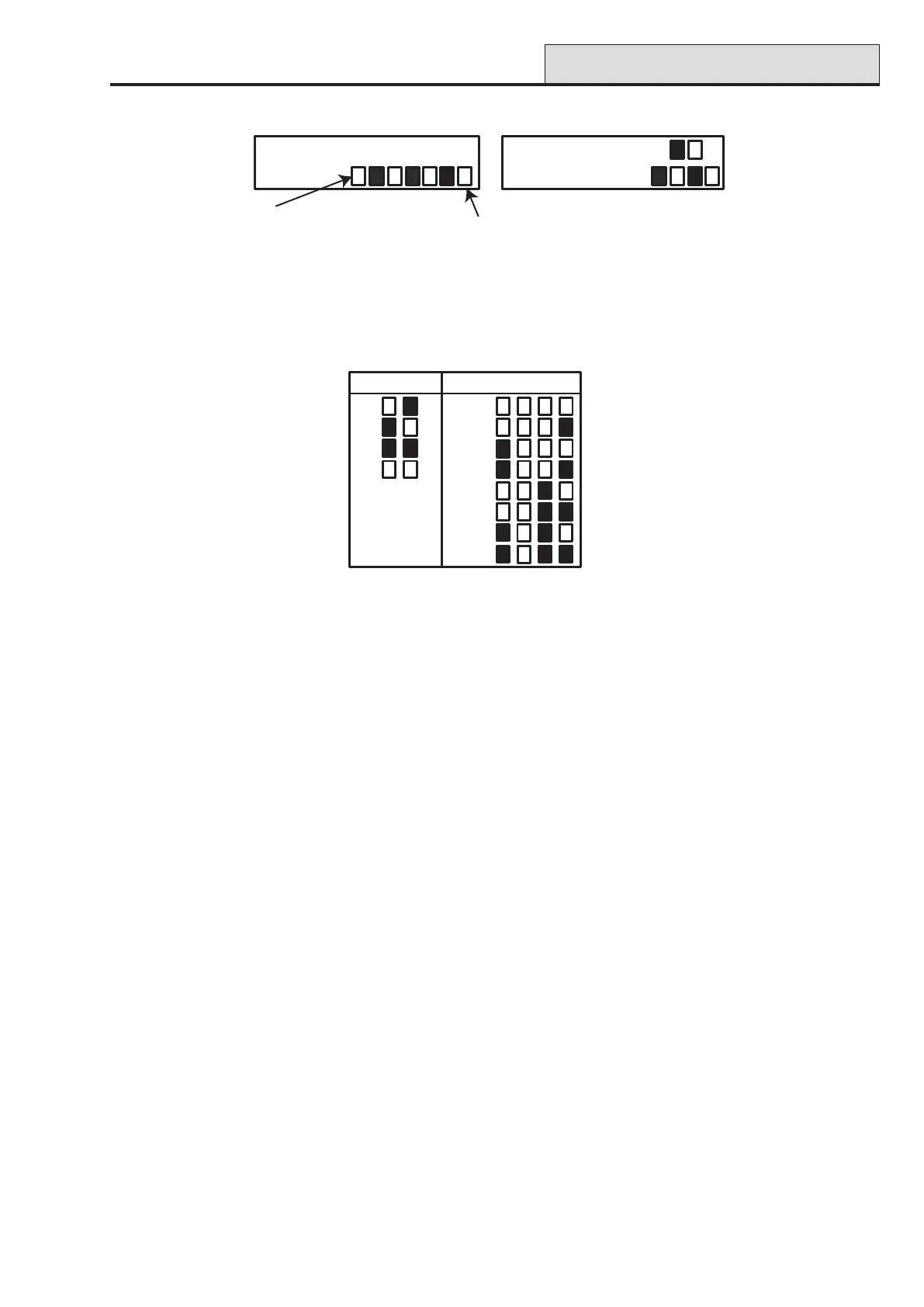

The combinations are shown in the following Figure:-
Select the required MAX/MicroMAX address using the A and B keys or by entering the MAX/MicroMAX
address directly and pressing the ent key. The first MAX parameter, 1 = Description is displayed. Use the A
or B keys to move to the required parameter and press the ent key.
1 = Descriptor
This option is used to assign a name of up to 12 characters to each of the MAX modules. This name is assem-
bled from the character set and/or library options. On selecting the Descriptor parameter the currently as-
signed name is displayed on the top line - an underscore shows where the next character will be positioned,
and a selection of the alphabet is shown on the bottom line - the cursor flashes on the letter L.
Press the  key to erase the characters already assigned to the name.
The A or B keys can be used to move the alphabet left or right until the required character is positioned
underneath the flashing cursor. When the required character is in position press the ent key to copy the char-
acter to the descriptor in the top line. Repeat this procedure to assemble the required Descriptor.
Text Case & Library
On entering the Descriptor parameter the alpha-numeric characters are all presented in upper case. Pressing
the # key toggles the characters to lower case.
Pressing the # key when the lower case alphanumeric characters are displayed toggles to the library words.
The words can be viewed using the A or B keys or directly selected using the reference number - refer to
Appendix A - Library. When the required word is displayed, press the ent key to copy it to the name.
Library words are a maximum of 12 characters and upper case only.
69 - Access Control (cont’d)
Line No.
Module Address
4
1
3
2
4
1
3
2
0
7
6
5
2 6M A X
2 6
MicroMAX/MAX3 LEDs Displayed
MAX LEDs Displayed
M A X
Top (unused)
Bottom

Honeywell Galaxy Dimension series Specifications

General

Model	Galaxy Dimension series
Users	Up to 250
Partitions	Up to 8
Operating Temperature	-10°C to +55°C
Compatibility	Honeywell Galaxy accessories and peripherals
