Honeywell IntelliDoX User Manual

INTELLIDOX DOCKING MODULE USER MANUAL || ASSEMBLE MODULES
HONEYWELL PAGE 14 OF 119

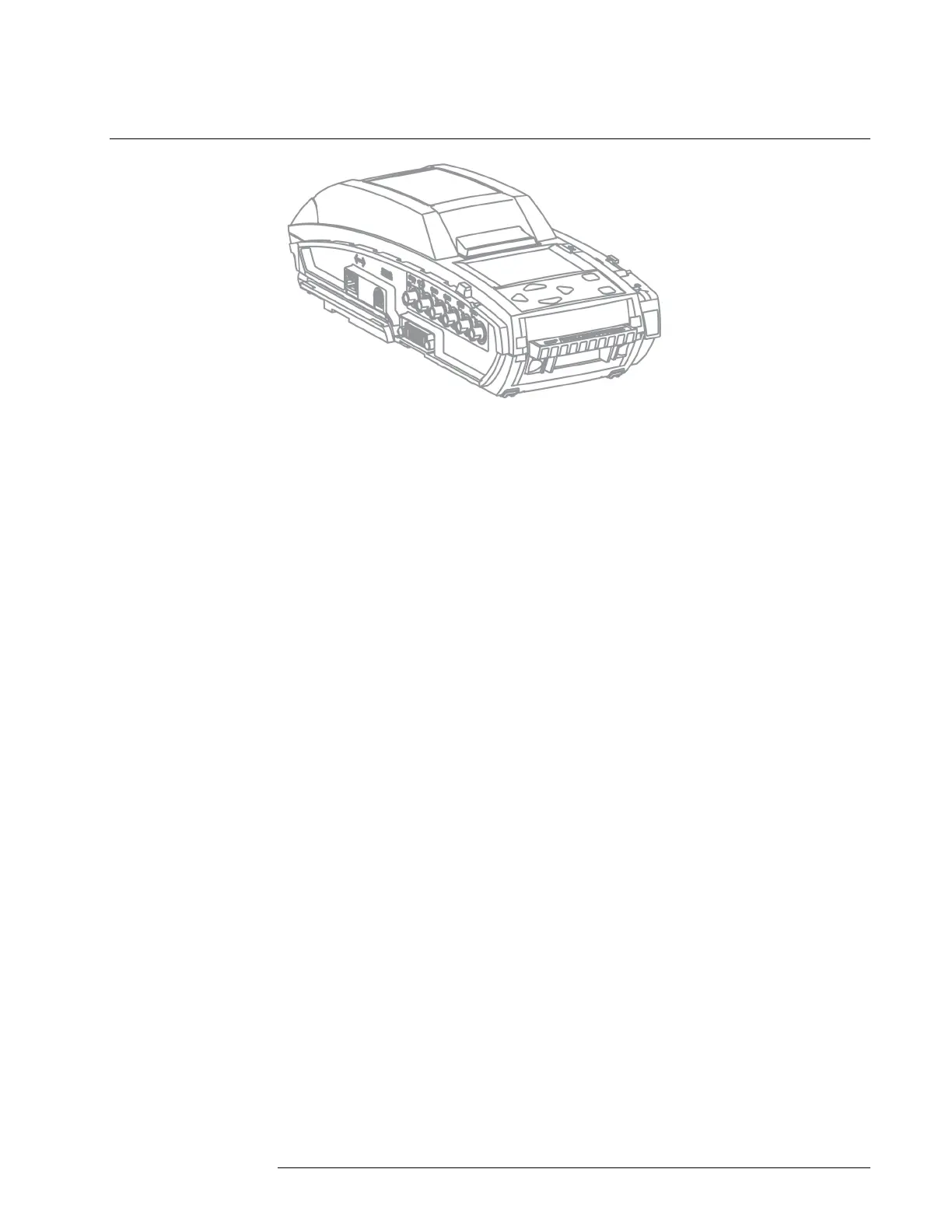

Work Plan: Assemble Individual Modules
Follow these steps to assemble and prepare an individual module for first-time use:
1. Place the module and component parts on a clean, dry work surface.
2. Verify that the appropriate inlet key is inserted. Replace the inlet key if necessary. For
more information, see Inlet Keys
3. Assemble the stand, or mount the module on a wall or DIN rail. For more information see:
a) Assemble the Stand.
b) Mount on a Wall.
c) Mount on Parallel DIN Rails.
4. Prepare the module for use. For more information, see Prepare Modules for Use.
a) Attach the end plate. For more information, see Attach the End Plate.
b) Connect an inlet filter to the purge inlet. For more information, see Connect the
Inlet filter.
c) Insert an inlet plug into each unused inlet. For more information, see Insert the
Inlet Plugs.
d) Connect the exhaust tubing. For more information, see Connect the Exhaust
Tubing.
e) Connect the power. For more information, see Connect the Power.
f) Connect to a network. See Connect the Module to a Network.
5. Connect the calibration gas cylinder or cylinders, and then configure the gas inlets. For
more information, see Configure Gas Inlets.
